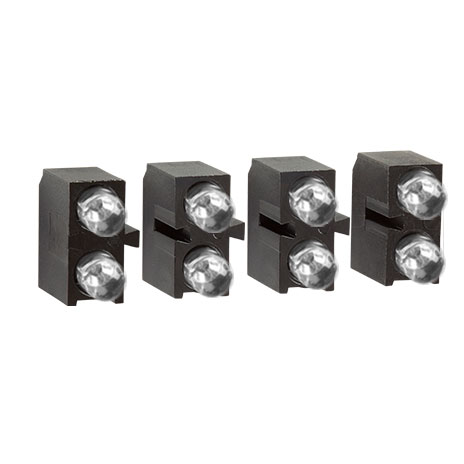

Two-level high one to four station right angle circuit board indicator.

  • 3mm (T-1) LED with single and multi-colors.

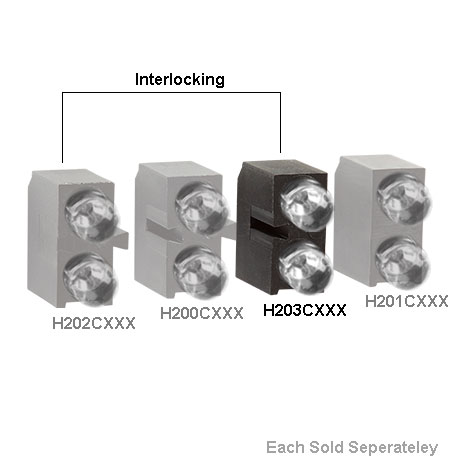

  • Interlocking holders make these highly configurable from one to four positions.
  • Shock and vibration resistant, ideal space saving solution.
  • Variety of lens and color combinations.
H200
Unit of Measure
1 2 3 4 5 »

Item #


3D Model

Lens Profile

Lens Size

Mounting Type

LED Color/Wavelength

Color/Wavelength

H201CYD
H201C
 		N/A CAD Icon (for items table) N/A Dome Diffused N/A 3mm N/A Right Angle N/A Yellow 590nm/Yellow 590nm N/A
H201CYDL
H201C
 		N/A CAD Icon (for items table) N/A Dome Diffused N/A 3mm N/A Right Angle N/A Yellow 590nm/Yellow 590nm N/A
H201CYGD
H201C
 		N/A CAD Icon (for items table) N/A Dome Diffused N/A 3mm N/A Right Angle N/A Yellow 590nm/Green 568nm N/A
H201CYGDL
H200C-e1632421277980
 		N/A CAD Icon (for items table) N/A Dome Diffused N/A 3mm N/A Right Angle N/A N/A Yellow 590 nm/Green 568nm
H201CYHDL
H200C-e1632421277980
 		N/A CAD Icon (for items table) N/A Dome Diffused N/A 3mm N/A Right Angle N/A N/A Yellow 590nm/HE Red 625nm
H201CYRD
H200C-e1632421277980
 		N/A CAD Icon (for items table) N/A Dome Diffused N/A 3mm N/A Right Angle N/A N/A Yellow 590nm/Red 700nm
H203CGRDL
H200C-e1632421277980
 		N/A CAD Icon (for items table) N/A Dome Diffused N/A 3mm N/A Right Angle N/A N/A Green 568nm/Red 700nm
H203CHD
H203C
 		N/A CAD Icon (for items table) N/A Dome Diffused N/A 3mm N/A Right Angle N/A Red 625nm/Red 625nm/Red 625nm N/A
H203CYGDL
H200C-e1632421277980
 		N/A CAD Icon (for items table) N/A Dome Diffused N/A 3mm N/A Right Angle N/A N/A Yellow 590nm/Green 568nm
H204CGD
H200C-e1632421277980
 		N/A CAD Icon (for items table) N/A Dome Diffused N/A 3mm N/A Right Angle N/A N/A Green 568nm
H204CGDL
H204
 		N/A CAD Icon (for items table) N/A Dome Diffused N/A 3mm N/A Right Angle N/A Green 568nm/Green 568nm/Green 568nm/Green 568nm N/A
H204CGHD
H200C-e1632421277980
 		N/A CAD Icon (for items table) N/A Dome Diffused N/A 3mm N/A Right Angle N/A N/A Green 568nm/HE Red 625nm
H204CGYD
H200C-e1632421277980
 		N/A CAD Icon (for items table) N/A Dome Diffused N/A 3mm N/A Right Angle N/A N/A Green 568nm/Yellow 590nm
H204CGYDL
H200C-e1632421277980
 		N/A CAD Icon (for items table) N/A Dome Diffused N/A 3mm N/A Right Angle N/A N/A Green 568nm/Yellow 590nm
H204CHD
H200C-e1632421277980
 		N/A CAD Icon (for items table) N/A Dome Diffused N/A 3mm N/A Right Angle N/A N/A HE Red 625nm
H204CHD5V
H200C-e1632421277980
 		N/A CAD Icon (for items table) N/A Dome Diffused N/A 3mm N/A Right Angle N/A N/A HE Red 625nm
H204CHDL
H204
 		N/A CAD Icon (for items table) N/A Dome Diffused N/A 3mm N/A Right Angle N/A Red 625nm/Red 625nm/Red 625nm/Red 625nm N/A
H204CHGD
H200C-e1632421277980
 		N/A CAD Icon (for items table) N/A Dome Diffused N/A 3mm N/A Right Angle N/A N/A HE Red 625nm/Green 568nm
H204CRD
H204
 		N/A CAD Icon (for items table) N/A Dome Diffused N/A 3mm N/A Right Angle N/A Red 700nm/Red 700nm/Red 700nm/Red 700 nm N/A
H204CRGD
H200C-e1632421277980
 		N/A CAD Icon (for items table) N/A Dome Diffused N/A 3mm N/A Right Angle N/A N/A Red 700nm/Green 568nm
H204CRGDL
H204
 		N/A CAD Icon (for items table) N/A Dome Diffused N/A 3mm N/A Right Angle N/A Red 700nm/Green 568nm/Red 700nm/Green 568nm N/A
H204CSRD
H200C-e1632421277980
 		N/A CAD Icon (for items table) N/A Dome Diffused N/A 3mm N/A Right Angle N/A N/A Super Red 645nm
H204CSRYD
H200C-e1632421277980
 		N/A CAD Icon (for items table) N/A Dome Diffused N/A 3mm N/A Right Angle N/A N/A Super Red 645nm/Yellow 590nm
H204CYD
H200C-e1632421277980
 		N/A CAD Icon (for items table) N/A Dome Diffused N/A 3mm N/A Right Angle N/A N/A Yellow 590nm
H204CYDL
H204
 		N/A CAD Icon (for items table) N/A Dome Diffused N/A 3mm N/A Right Angle N/A Yellow 590nm/Yellow 590nm/Yellow 590nm/Yellow 590nm N/A
