Board mount adapter with built-in Bivar Through-Hole LED and Flexible Light Pipe.
  • Available in 1mm, 2mm optical fiber diameter.
  • Optical fiber length: 1.0 in. to over 100 ft.
  • Vertical and right-angle adapter configurations.
  • Single and multi-color Through-Hole LEDs
  • Range of lens sizes, shapes, and colors.
  • Optical fiber colors: red, green, blue, yellow, white, black.
FLP
Unit of Measure
« 6 7 8 9 10 »

Item #


3D Model

Lens Profile

Lens Size

Adapter LED Color/Wavelength

Optical Fiber Color

Luminous Intensity

Adapter Optical Fiber Diameter

Optical Fiber Length

FLPV5.0-SG
FLPV-System-Low-Profile
 		N/A CAD Icon (for items table) N/A Low Profile N/A 4.2mm N/A Super Green 568nm N/A Black N/A 50mcd N/A 1mm N/A 5.0 in.
FLPV6.0-SBC
FLPV-System-Low-Profile
 		N/A CAD Icon (for items table) N/A Low Profile N/A 4.2mm N/A Super Red 645nm/Green 568nm N/A Black N/A 100mcd/60mcd N/A 1mm N/A 6.0 in.
FLPV6.0-SG
FLPV-System-Low-Profile
 		N/A CAD Icon (for items table) N/A Low Profile N/A 4.2mm N/A Super Green 568nm N/A Black N/A 50mcd N/A 1mm N/A 6.0 in.
FLPV6.0-SR
FLPV-System-Low-Profile
 		N/A CAD Icon (for items table) N/A Low Profile N/A 4.2mm N/A Super Red 645nm N/A Black N/A 60mcd N/A 1mm N/A 6.0 in.
FLPV6.0-SY
FLPV-System-Low-Profile
 		N/A CAD Icon (for items table) N/A Low Profile N/A 4.2mm N/A Super Yellow 590nm N/A Black N/A 50mcd N/A 1mm N/A 6.0 in.
FLPV6.0-UG
FLPV-System-Low-Profile
 		N/A CAD Icon (for items table) N/A Low Profile N/A 4.2mm N/A Green 570nm N/A Black N/A 200mcd N/A 1mm N/A 6.0 in.
FLPV9.0-SG
FLPV-System-Low-Profile
 		N/A CAD Icon (for items table) N/A Low Profile N/A 4.2mm N/A Super Green 568nm N/A Black N/A 50mcd N/A 1mm N/A 9.0 in.
FLPV9.0-SR
FLPV-System-Low-Profile
 		N/A CAD Icon (for items table) N/A Low Profile N/A 4.2mm N/A Super Red 645nm N/A Black N/A 60mcd N/A 1mm N/A 9.0 in.
FLPV9.0-SY
FLPV-System-Low-Profile
 		N/A CAD Icon (for items table) N/A Low Profile N/A 4.2mm N/A Super Yellow 590nm N/A Black N/A 50mcd N/A 1mm N/A 9.0 in.
FLPV9.0-UG
FLPV-System-Low-Profile
 		N/A CAD Icon (for items table) N/A Low Profile N/A 4.2mm N/A Green 570nm N/A Black N/A 200mcd N/A 1mm N/A 9.0 in.
FLPV-BC
FLPV-Adapter
 		N/A CAD Icon (for items table) N/A NULL N/A NULL N/A Red 625nm/Green 568nm N/A NULL N/A 8mcd/8mcd N/A 1mm N/A NULL
FLPV-SBC
FLPV-Adapter
 		N/A CAD Icon (for items table) N/A NULL N/A NULL N/A Super Red 645nm/Green 568nm N/A NULL N/A 100mcd/60mcd N/A 1mm N/A NULL
FLPV-SG
FLPV-Adapter
 		N/A CAD Icon (for items table) N/A NULL N/A NULL N/A Super Green 568nm N/A NULL N/A 50mcd N/A 1mm N/A NULL
FLPV-SR
FLPV-Adapter
 		N/A CAD Icon (for items table) N/A NULL N/A NULL N/A Super Red 645nm N/A NULL N/A 60mcd N/A 1mm N/A NULL
FLPV-SUG
FLPV-Adapter
 		N/A CAD Icon (for items table) N/A NULL N/A NULL N/A Green 570nm N/A NULL N/A 300mcd N/A 1mm N/A NULL
FLPV-SUR
FLPV-Adapter
 		N/A CAD Icon (for items table) N/A NULL N/A NULL N/A Red 640nm N/A NULL N/A 200mcd N/A 1mm N/A NULL
FLPV-SY
FLPV-Adapter
 		N/A CAD Icon (for items table) N/A NULL N/A NULL N/A Super Yellow 590nm N/A NULL N/A 50mcd N/A 1mm N/A NULL
FLPV-UG
FLPV-Adapter
 		N/A CAD Icon (for items table) N/A NULL N/A NULL N/A Green 570nm N/A NULL N/A 200mcd N/A 1mm N/A NULL
FLPV-UR
FLPV-Adapter
 		N/A CAD Icon (for items table) N/A NULL N/A NULL N/A Red 645nm N/A NULL N/A 200mcd N/A 1mm N/A NULL
FLPV-UY
FLPV-Adapter
 		N/A CAD Icon (for items table) N/A NULL N/A NULL N/A Yellow 590nm N/A NULL N/A 300mcd N/A 1mm N/A NULL
FR1-10.0-SG-F7P-2
FLPV-Sytem-RD
 		N/A CAD Icon (for items table) N/A Low Profile N/A 7mm N/A Green 568nm N/A Red N/A 50mcd N/A 1mm N/A 10.0 in.
FR1-10.0-SG-F7P-4
FLPV-Sytem-YW
 		N/A CAD Icon (for items table) N/A Low Profile N/A 7mm N/A Green 568nm N/A Yellow N/A 50mcd N/A 1mm N/A 10.0 in.
FR1-10.0-SG-F7P-5
FLPV-Sytem-GN
 		N/A CAD Icon (for items table) N/A Low Profile N/A 7mm N/A Green 568nm N/A Green N/A 50mcd N/A 1mm N/A 10.0 in.

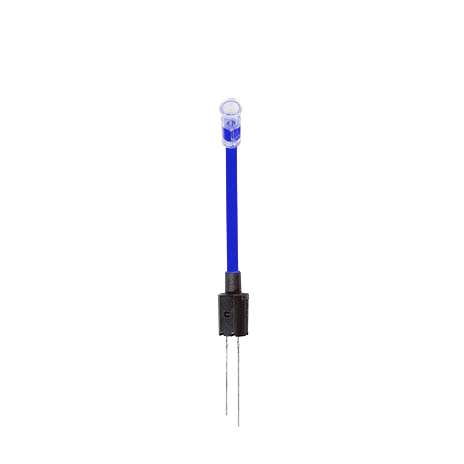

FR1-10.0-SG-F7P-6
FLPV-Sytem-BE
 		N/A CAD Icon (for items table) N/A Low Profile N/A 7mm N/A Green 568nm N/A Blue N/A 50mcd N/A 1mm N/A 10.0 in.
FR1-10.0-SG-F7P-9
FLPV-Sytem-WE
 		N/A CAD Icon (for items table) N/A Low Profile N/A 7mm N/A Green 568nm N/A White N/A 50mcd N/A 1mm N/A 10.0 in.
