Metal panel mount indicator sealed to IP54 rating with high visibility domed lens.

  • Available in 3mm (T-1) or 5mm (T-1 ¾) flanged LED lens size.
  • Operating voltages of 5V, 12V, 110V, 220V.
  • Quick connect terminals.
  • Mounting hardware included, packed separately.
  • Single color options, narrow viewing angle diffused lens appearance.
MPC-2
Unit of Measure
1 2 3 4

Item #


3D Model

Lens Profile

Lens Size

Housing Material

LED Color/Wavelength

Panel Cutout

Voltage

MPC12-2GD12V
MPC12-2GD12V
 		N/A N/A Dome Diffused Tinted N/A N/A Metal N/A Green 525nm N/A Round N/A 12 V

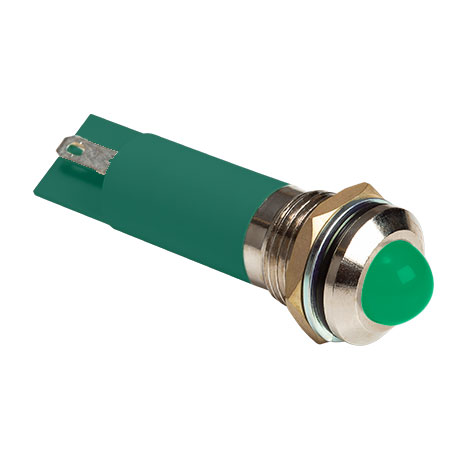

MPC12-2GD220V
MPC12-2GD220V
 		N/A N/A Dome Diffused Tinted N/A N/A Metal N/A Green 525nm N/A Round N/A 220 V
MPC12-2GD24V
MPC12-2GD24V
 		N/A N/A Dome Diffused Tinted N/A N/A Metal N/A Green 525nm N/A Round N/A 24 V
MPC12-2RD110V
MPC12-2RD110V
 		N/A N/A Dome Diffused Tinted N/A N/A Metal N/A Red 625nm N/A Round N/A 110 V

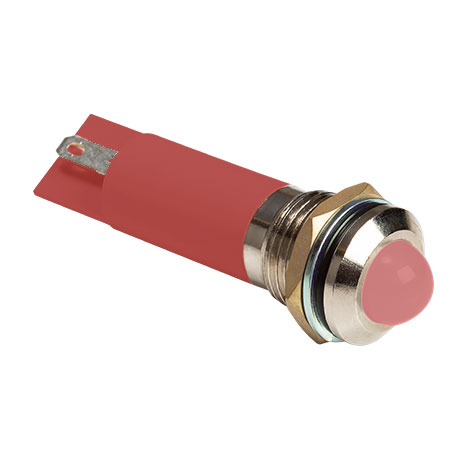

MPC12-2RD12V
MPC12-2RD12V
 		N/A N/A Dome Diffused Tinted N/A N/A Metal N/A Red 625nm N/A Round N/A 12 V
MPC12-2RD220V
MPC12-2RD220V
 		N/A N/A Dome Diffused Tinted N/A N/A Metal N/A Red 625nm N/A Round N/A 220 V
MPC12-2RD24V
MPC12-2RD24V
 		N/A N/A Dome Diffused Tinted N/A N/A Metal N/A Red 625nm N/A Round N/A 24 V
MPC12-2WD110V
MPC12-2WD110V
 		N/A N/A Dome Diffused Tinted N/A N/A Metal N/A White 4500K N/A Round N/A 110 V

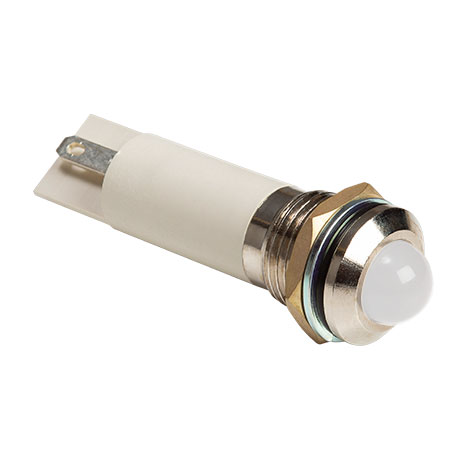

MPC12-2WD12V
MPC12-2WD12V
 		N/A N/A Dome Diffused Tinted N/A N/A Metal N/A White 4500K N/A Round N/A 12 V
MPC12-2WD220V
MPC12-2WD220V
 		N/A N/A Dome Diffused Tinted N/A N/A Metal N/A White 4500K N/A Round N/A 220 V
MPC12-2WD24V
MPC12-2WD24V
 		N/A N/A Dome Diffused Tinted N/A N/A Metal N/A White 4500K N/A Round N/A 24 V
MPC12-2YD110V
MPC12-2YD110V
 		N/A N/A Dome Diffused Tinted N/A N/A Metal N/A Yellow 590nm N/A Round N/A 110 V

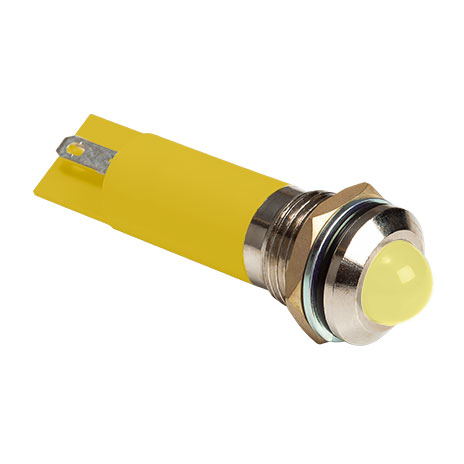

MPC12-2YD12V
MPC12-2YD12V
 		N/A N/A Dome Diffused Tinted N/A N/A Metal N/A Yellow 590nm N/A Round N/A 12 V
MPC12-2YD220V
MPC12-2YD220V
 		N/A N/A Dome Diffused Tinted N/A N/A Metal N/A Yellow 590nm N/A Round N/A 220 V
MPC12-2YD24V
MPC12-2YD24V
 		N/A N/A Dome Diffused Tinted N/A N/A Metal N/A Yellow 590nm N/A Round N/A 24 V
MPC6-1BWD12V
MPC6-1BWD12
 		N/A N/A Recessed Dome Diffused N/A N/A Metal N/A Blue 465nm N/A Round N/A 12 V
MPC6-1BWD24V
MPC6-1BWD24V
 		N/A N/A Recessed Dome Diffused N/A N/A Metal N/A Blue 465nm N/A Round N/A 24 V

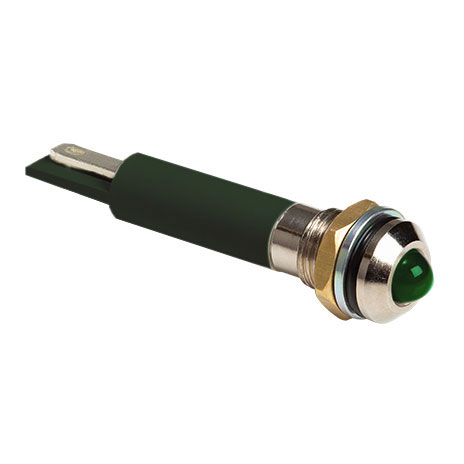

MPC6-1GD12V
MPC6-1GD12V
 		N/A N/A Recessed Dome Diffused N/A N/A Metal N/A Green 525nm N/A Round N/A 12 V
MPC6-1GD24V
MPC6-1GD24V
 		N/A N/A Recessed Dome Diffused N/A N/A Metal N/A Green 525nm N/A Round N/A 24 V

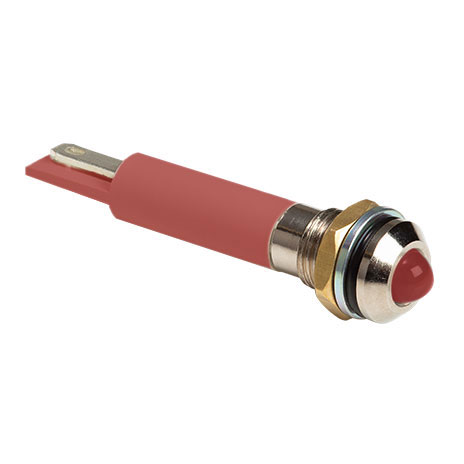

MPC6-1RD12V
MPC6-1RD12V
 		N/A N/A Recessed Dome Diffused N/A N/A Metal N/A Red 625nm N/A Round N/A 12 V
MPC6-1RD24V
MPC6-1RD24V
 		N/A N/A Recessed Dome Diffused N/A N/A Metal N/A Red 625nm N/A Round N/A 24 V
MPC6-1WD12V
MPC6-1WD12V
 		N/A N/A Recessed Dome Diffused N/A N/A Metal N/A White 10000K N/A Round N/A 12 V

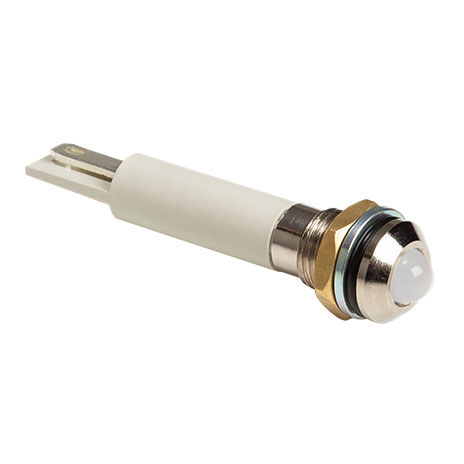

MPC6-1WD24V
MPC6-1WD24V
 		N/A N/A Recessed Dome Diffused N/A N/A Metal N/A White 10000K N/A Round N/A 24 V
MPC6-1YD12V
MPC6-1YD24V
 		N/A N/A Recessed Dome Diffused N/A N/A Metal N/A Yellow 590nm N/A Round N/A 12 V

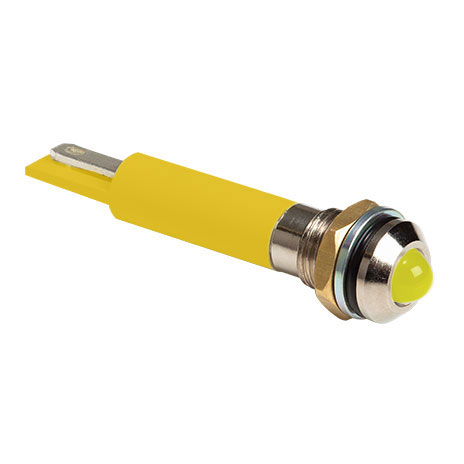

MPC6-1YD24V
MPC6-1YD24V
 		N/A N/A Recessed Dome Diffused N/A N/A Metal N/A Yellow 590nm N/A Round N/A 24 V
