Metal panel mount indicator with high visibility domed lens.

  • Available in 3mm (T-1) or 5mm (T-1 ¾) flanged LED lens size.
  • Voltage input options of 5V and 12V.
  • Wire terminals or with 24AWG stripped and tinned wire leads.
  • Mounting hardware included, packed separately.
  • Range of single and multi-colors, narrow viewing angle lens appearance options.
MPR
Unit of Measure
1 2 3

Item #


3D Model

Lens Size

Housing Material

LED Color/Wavelength

Termination

Panel Cutout

Wire Length

MPR3SRDW6.0
MPR3SRDW6-0
 		N/A CAD Icon (for items table) N/A 3mm N/A Metal N/A Red 645nm N/A Wires Stripped/Tinned N/A Round N/A

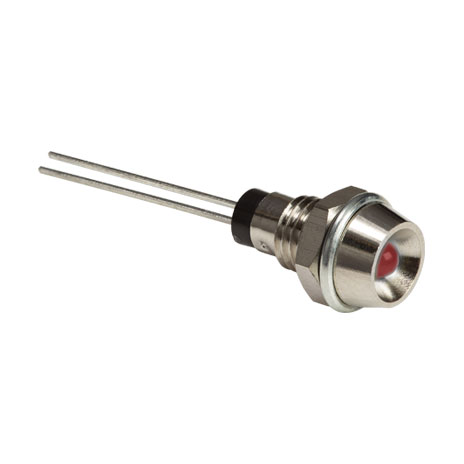

MPR3SURC
MPR3SURC
 		N/A CAD Icon (for items table) N/A 3mm N/A Metal N/A Red 645nm N/A No Wires N/A Round N/A
MPR3YD
MPR3YD
 		N/A CAD Icon (for items table) N/A 3mm N/A Metal N/A Yellow/590nm N/A No Wires N/A Round N/A
MPR3YDW12.0
MPR3YDW12-0
 		N/A CAD Icon (for items table) N/A 3mm N/A Metal N/A Yellow/590nm N/A Wires Stripped/Tinned N/A Round N/A
MPR3YDW6.0
MPR3YDW6-0
 		N/A CAD Icon (for items table) N/A 3mm N/A Metal N/A Yellow/590nm N/A Wires Stripped/Tinned N/A Round N/A

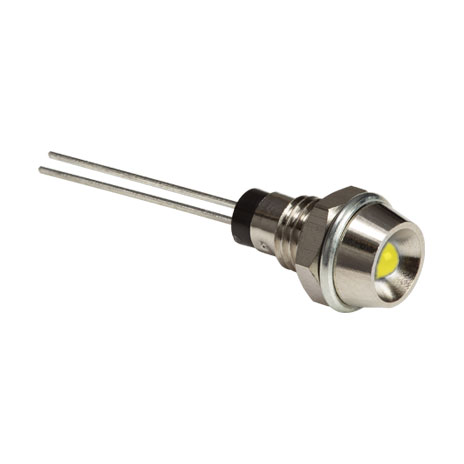

MPR3YT
MPR3YT
 		N/A CAD Icon (for items table) N/A 3mm N/A Metal N/A Yellow/590nm N/A No Wires N/A Round N/A
MPR3YTW12.0
MPR3YTW12-0
 		N/A CAD Icon (for items table) N/A 3mm N/A Metal N/A Yellow/590nm N/A Wires Stripped/Tinned N/A Round N/A
MPR5AD
MPR5AD
 		N/A CAD Icon (for items table) N/A 5mm N/A Metal N/A Amber 605nm N/A No Wires N/A Round N/A
MPR5ADW12.0
MPR5ADW12-0
 		N/A CAD Icon (for items table) N/A 5mm N/A Metal N/A Amber 605nm N/A Wires Stripped/Tinned N/A Round N/A

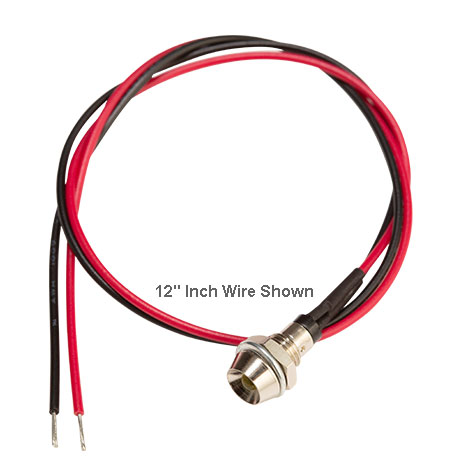

MPR5BCW6.0
MPR5BCW6-0
 		N/A CAD Icon (for items table) N/A 5mm N/A Metal N/A Red 625nm/Green 568nm N/A Wires Stripped/Tinned N/A Round N/A
MPR5BWD
MPR5BWD
 		N/A CAD Icon (for items table) N/A 5mm N/A Metal N/A Blue 430nm N/A No Wires N/A Round N/A
MPR5BWDW12.0
MPR5BWDW12-0
 		N/A CAD Icon (for items table) N/A 5mm N/A Metal N/A Blue 430nm N/A Wires Stripped/Tinned N/A Round N/A

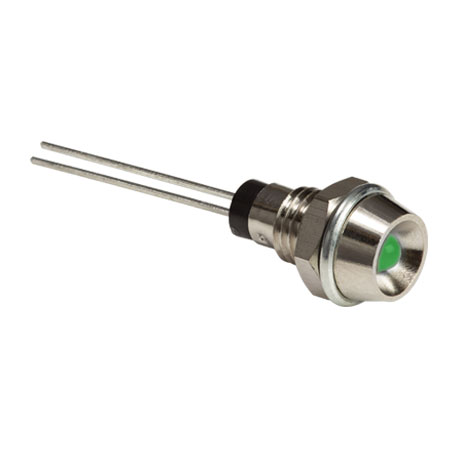

MPR5GD
MPR5GD
 		N/A CAD Icon (for items table) N/A 5mm N/A Metal N/A Green 555nm N/A No Wires N/A Round N/A
MPR5GDL
MPR5GDL
 		N/A CAD Icon (for items table) N/A 5mm N/A Metal N/A Green 568nm N/A No Wires N/A Round N/A
MPR5GDW12.0
MPR5GDW12-0
 		N/A CAD Icon (for items table) N/A 5mm N/A Metal N/A Green 555nm N/A Wires Stripped/Tinned N/A Round N/A

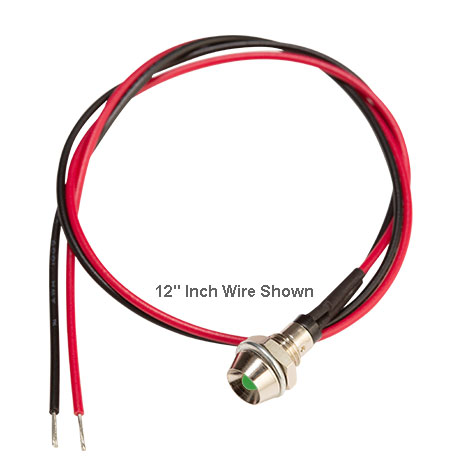

MPR5GDW6.0
MPR5GDW6-0
 		N/A CAD Icon (for items table) N/A 5mm N/A Metal N/A Green 555nm N/A Wires Stripped/Tinned N/A Round N/A
MPR5GT
MPR5GT
 		N/A CAD Icon (for items table) N/A 5mm N/A Metal N/A Green 568nm N/A No Wires N/A Round N/A
MPR5GTW12.0
MPR5GTW12-0
 		N/A CAD Icon (for items table) N/A 5mm N/A Metal N/A Green 568nm N/A Wires Stripped/Tinned N/A Round N/A
MPR5HD
MPR5HD
 		N/A CAD Icon (for items table) N/A 5mm N/A Metal N/A Red 625nm N/A No Wires N/A Round N/A
MPR5HDW12.0
MPR5HDW12-0
 		N/A CAD Icon (for items table) N/A 5mm N/A Metal N/A Red 625nm N/A Wires Stripped/Tinned N/A Round N/A
MPR5HT
MPR5HT
 		N/A CAD Icon (for items table) N/A 5mm N/A Metal N/A Red 625nm N/A No Wires N/A Round N/A
MPR5HTW12.0
MPR5HTW12-0
 		N/A CAD Icon (for items table) N/A 5mm N/A Metal N/A Red 625nm N/A Wires Stripped/Tinned N/A Round N/A
MPR5RD
MPR5RD
 		N/A CAD Icon (for items table) N/A 5mm N/A Metal N/A Red 700nm N/A No Wires N/A Round N/A
MPR5RDW12.0
MPR5RDW12-0
 		N/A CAD Icon (for items table) N/A 5mm N/A Metal N/A Red 700nm N/A Wires Stripped/Tinned N/A Round N/A

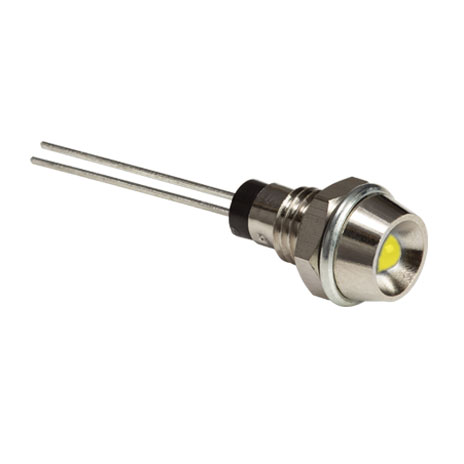

MPR5YD
MPR5YD
 		N/A CAD Icon (for items table) N/A 5mm N/A Metal N/A Yellow/590nm N/A No Wires N/A Round N/A
