The new MLPS-B Light Pipe Positioning Tray offers a streamlined approach that simplifies assembly and saves time.
Positioning Tray is designed for precise alignment and enhanced support.
Light pipe installation becomes more straightforward than ever.
This approach improves retention, increases overall installation efficiency, or a more seamless assembly experience.
Item # |
Image |
3D Model |
Lens Profile |
Lens Size |
Light Pipe Series |
Lens Color |
Body Length |
Configuration |
|---|---|---|---|---|---|---|---|---|

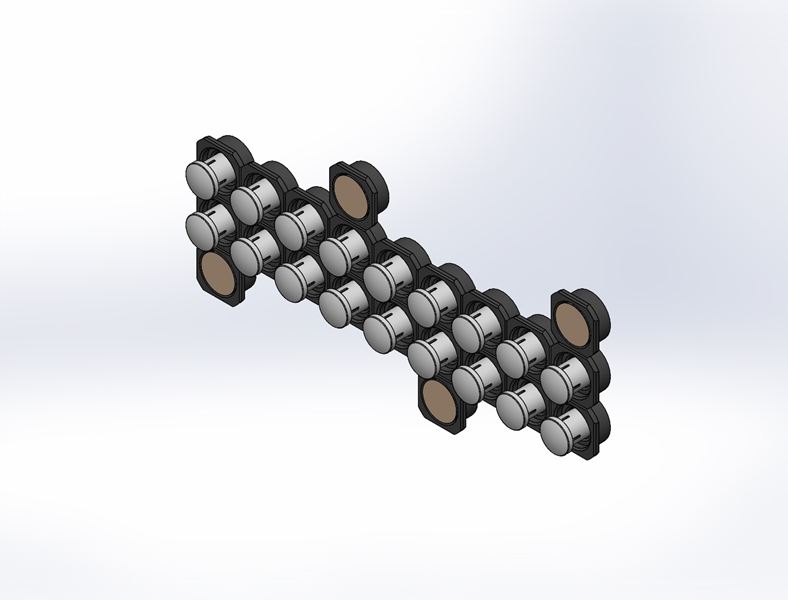

| MLPS-B-5-0209-DD-4-PLW5-188 |
 MLPS-B-5-0209-DD-4-PLW5-188 |
N/A
|
N/A Dome | N/A 5mm | N/A PLW5 | N/A Clear | N/A .188 in. (4.775mm) | N/A 2 Row 9 Column |

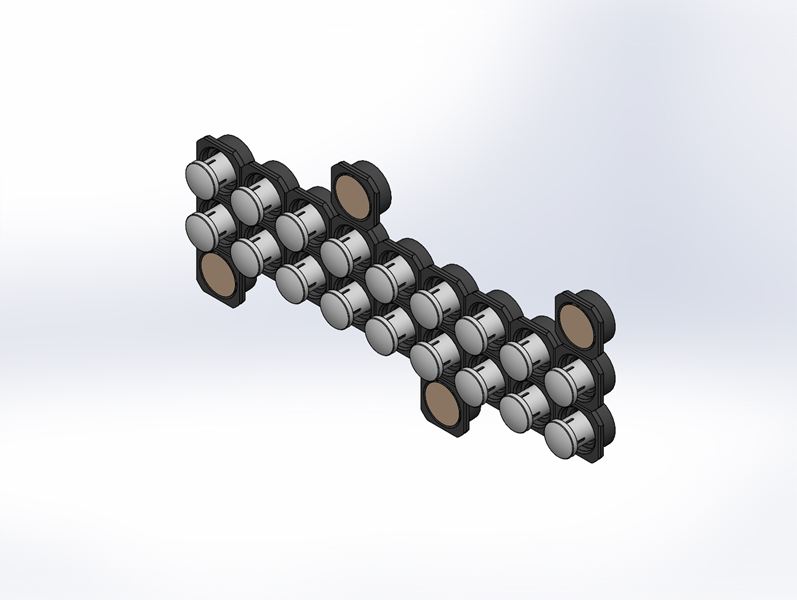

| MLPS-B-5-0209-DD-4-PLW5-250 |
 MLPS-B-5-0209-DD-4-PLW5-250 |
N/A
|
N/A Dome | N/A 5mm | N/A PLW5 | N/A Clear | N/A .250 in. (6.35mm) | N/A 2 Row 9 Column |

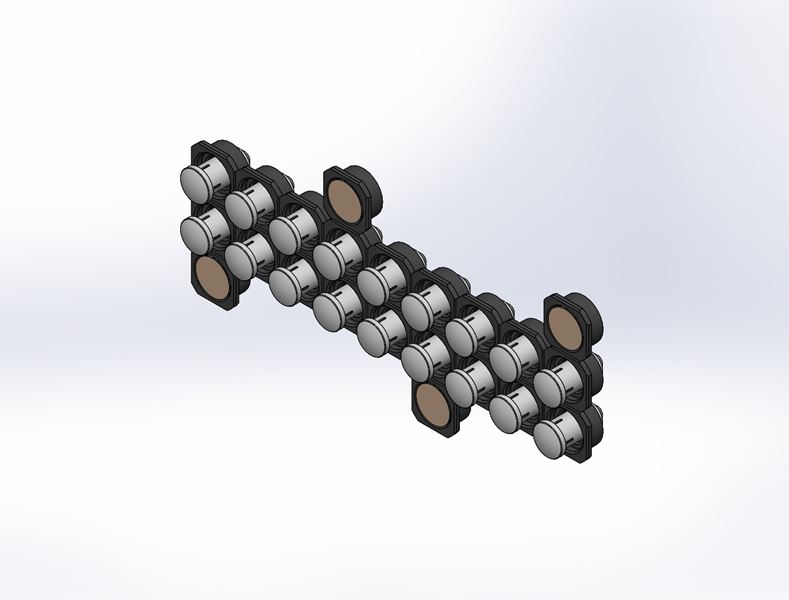

| MLPS-B-5-0209-DD-4-PLW5-313 |
 MLPS-B-5-0209-DD-4-PLW5-313 |
N/A
|
N/A Dome | N/A 5mm | N/A PLW5 | N/A Clear | N/A .313 in. (7.95mm) | N/A 2 Row 9 Column |

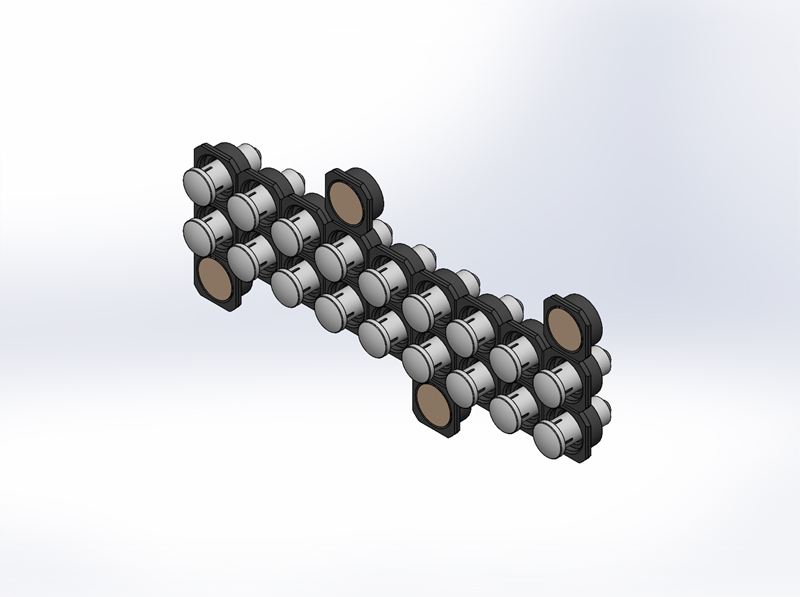

| MLPS-B-5-0209-DD-4-PLW5-375 |
 MLPS-B-5-0209-DD-4-PLW5-375 |
N/A | N/A Dome | N/A 5mm | N/A PLW5 | N/A Clear | N/A .375 in. (9.525mm) | N/A 2 Row 9 Column |

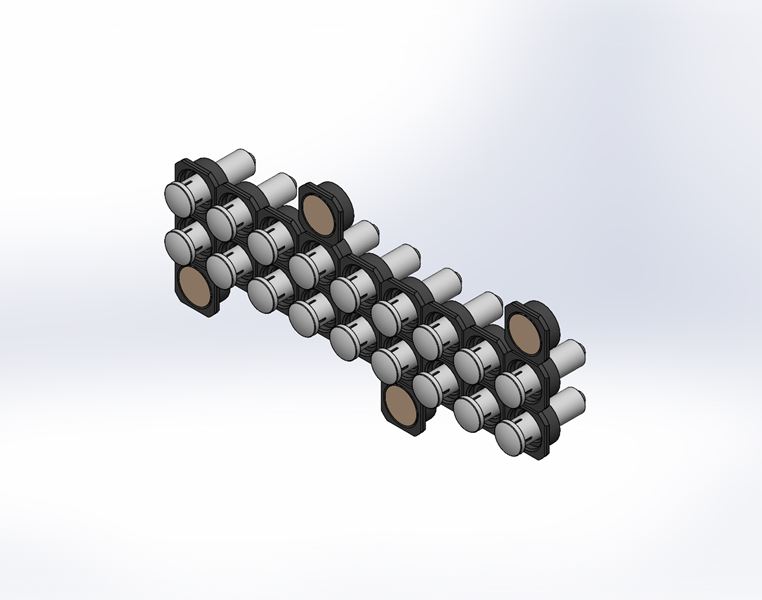

| MLPS-B-5-0209-DD-4-PLW5-500 |
 MLPS-B-5-0209-DD-4-PLW5-500 |
N/A
|
N/A Dome | N/A 5mm | N/A PLW5 | N/A Clear | N/A .500 in. (12.7mm) | N/A 2 Row 9 Column |

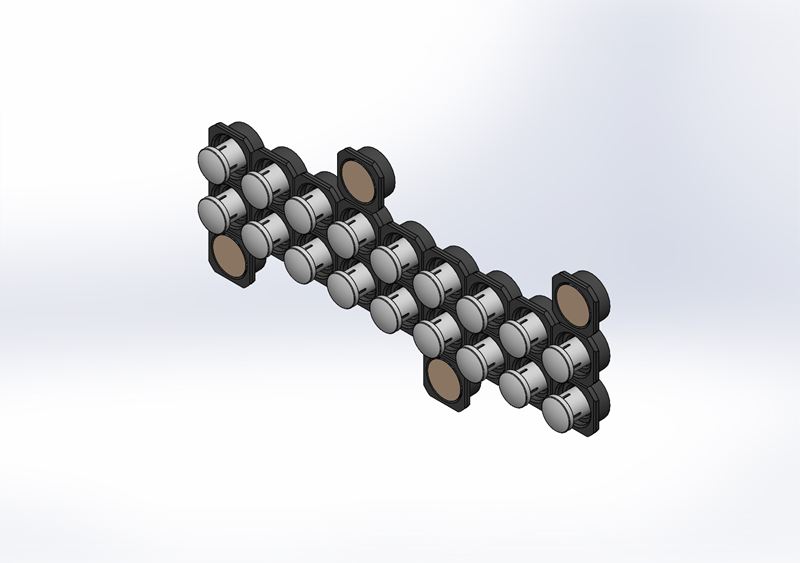

| MLPS-B-5-0209-DD-4-PLW5-5MM |
 MLPS-B-5-0209-DD-4-PLW5-5MM |
N/A
|
N/A Dome | N/A 5mm | N/A PLW5 | N/A Clear | N/A .197 in. (5mm) | N/A 2 Row 9 Column |
| MLPS-B-5-0209-DD-4-PLW5-6MM |
 MLPS-B-5-0209-DD-4-PLW5-6MM |
N/A
|
N/A Dome | N/A 5mm | N/A PLW5 | N/A Clear | N/A .236 in. (6mm) | N/A 2 Row 9 Column |

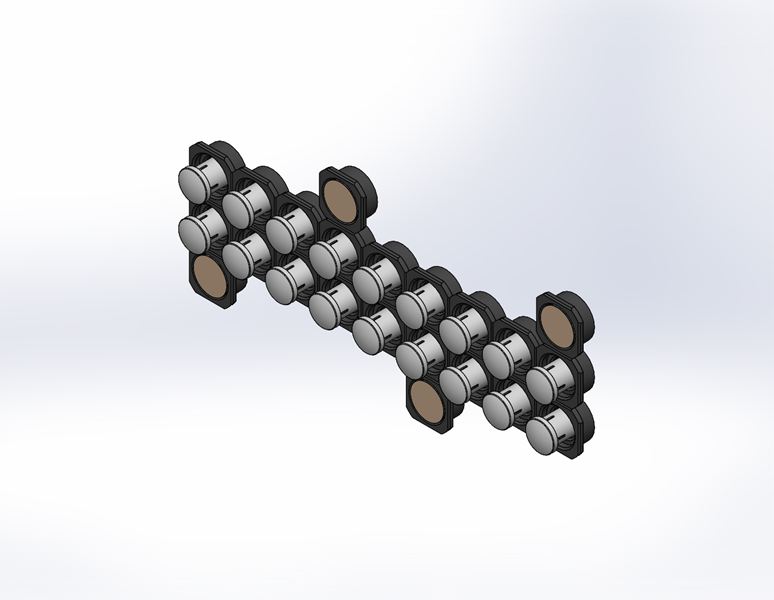

| MLPS-B-5-0209-DD-4-PLW5-7MM |
 MLPS-B-5-0209-DD-4-PLW5-7MM |
N/A
|
N/A Dome | N/A 5mm | N/A PLW5 | N/A Clear | N/A .276 in. (7mm) | N/A 2 Row 9 Column |
| MLPS-B-5-0209-DD-4-PLW5-8MM |
 MLPS-B-5-0209-DD-4-PLW5-8MM |
N/A
|
N/A Dome | N/A 5mm | N/A PLW5 | N/A Clear | N/A .315 in. (8mm) | N/A 2 Row 9 Column |
| MLPS-B-5-0209-DD-4-PLW5-9MM |
 MLPS-B-5-0209-DD-4-PLW5-9MM |
N/A
|
N/A Dome | N/A 5mm | N/A PLW5 | N/A Clear | N/A .354 in. (9mm) | N/A 2 Row 9 Column |

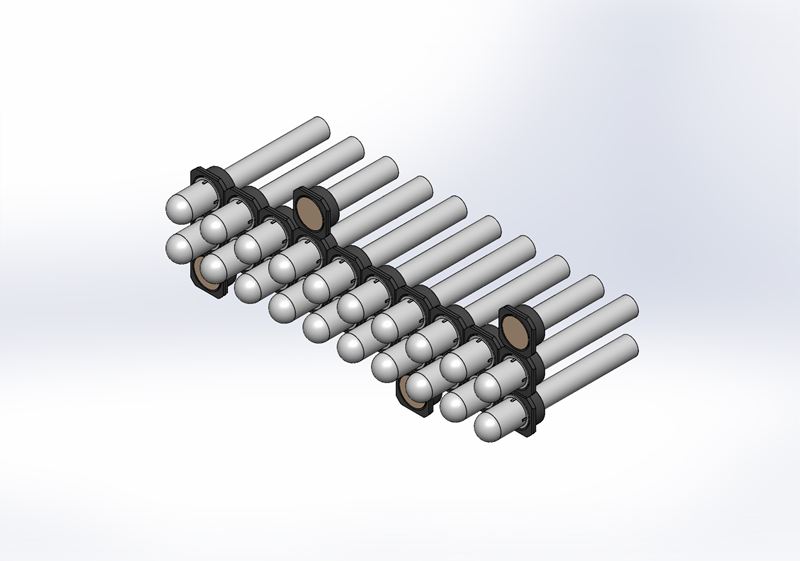

| MLPS-B-5-0210-DD-4-PLP5-1000 |
 MLPS-B-5-0210-DD-4-PLP5-1000 |
N/A
|
N/A Dome | N/A 5mm | N/A PLP5 | N/A Clear | N/A 1.000 in. (25.4mm) | N/A 2 Row 10 Column |

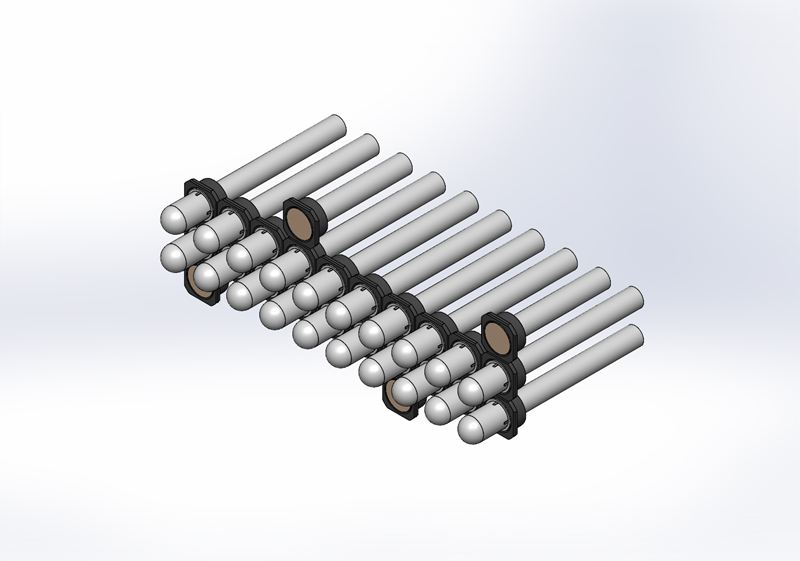

| MLPS-B-5-0210-DD-4-PLP5-1250 |
 MLPS-B-5-0210-DD-4-PLP5-1250 |
N/A
|
N/A Dome | N/A 5mm | N/A PLP5 | N/A Clear | N/A 1.250 in. (31.75mm) | N/A 2 Row 10 Column |

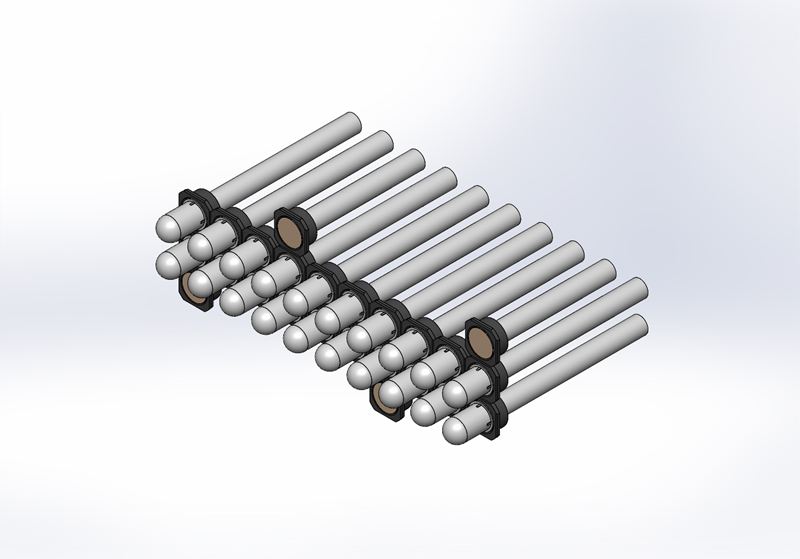

| MLPS-B-5-0210-DD-4-PLP5-1500 |
 MLPS-B-5-0210-DD-4-PLP5-1500 |
N/A
|
N/A Dome | N/A 5mm | N/A PLP5 | N/A Clear | N/A 1.500 in. (38.1mm) | N/A 2 Row 10 Column |

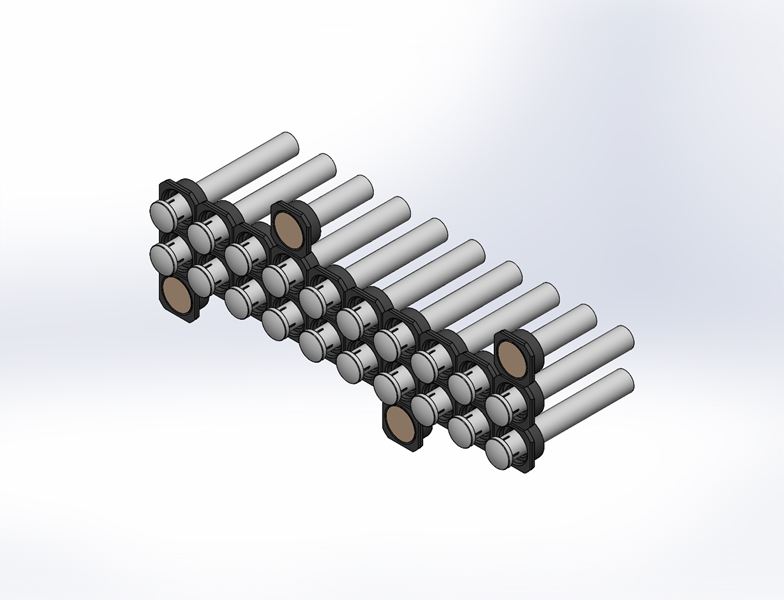

| MLPS-B-5-0210-DD-4-PLP5-2-1000 |
 MLPS-B-5-0210-DD-4-PLP5-2-1000 |
N/A
|
N/A Low Profile Dome | N/A 5mm | N/A PLP5 | N/A Clear | N/A 1.000 in. (25.4mm) | N/A 2 Row 10 Column |

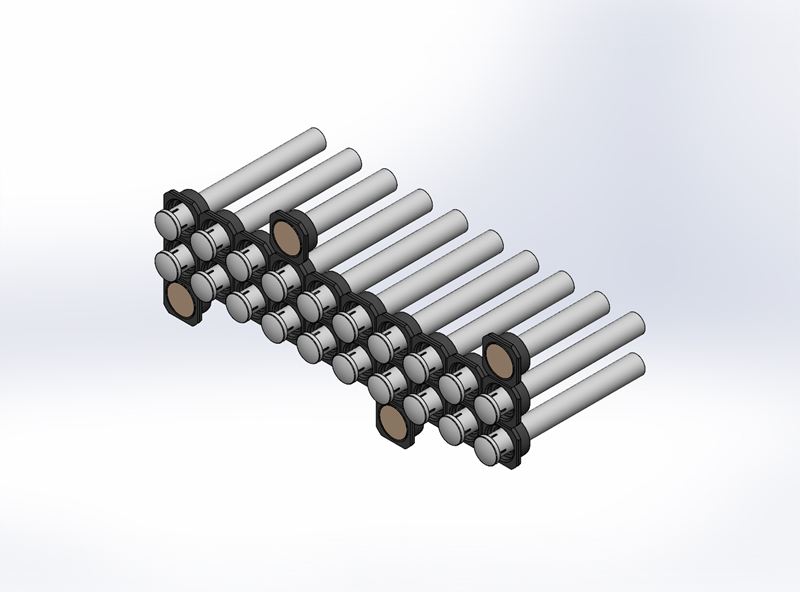

| MLPS-B-5-0210-DD-4-PLP5-2-1250 |
 MLPS-B-5-0210-DD-4-PLP5-2-1250 |
N/A
|
N/A Low Profile Dome | N/A 5mm | N/A PLP5 | N/A Clear | N/A 1.250 in. (31.75mm) | N/A 2 Row 10 Column |

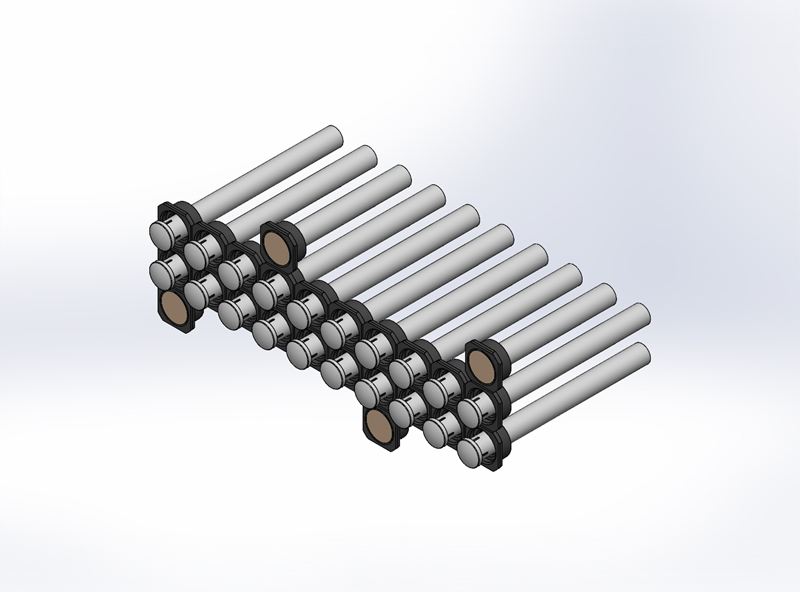

| MLPS-B-5-0210-DD-4-PLP5-2-1500 |
 MLPS-B-5-0210-DD-4-PLP5-2-1500 |
N/A
|
N/A Low Profile Dome | N/A 5mm | N/A PLP5 | N/A Clear | N/A 1.500 in. (38.1mm) | N/A 2 Row 10 Column |
| MLPS-B-5-0210-DD-4-PLP5-2-250 |
 MLPS-B-5-0210-DD-4-PLP5-2-250 |
N/A
|
N/A Low Profile Dome | N/A 5mm | N/A PLP5 | N/A Clear | N/A .250 in. (6.35mm) | N/A 2 Row 10 Column |

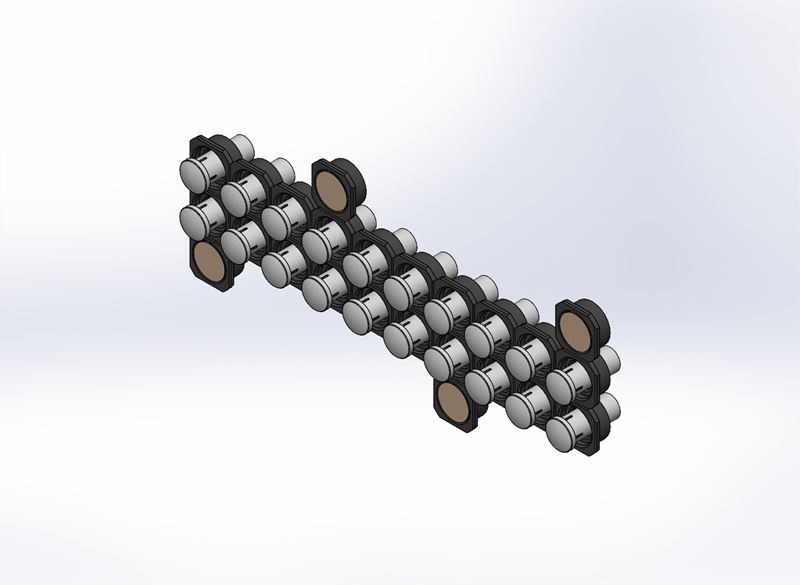

| MLPS-B-5-0210-DD-4-PLP5-2-350 |
 MLPS-B-5-0210-DD-4-PLP5-2-350 |
N/A
|
N/A Low Profile Dome | N/A 5mm | N/A PLP5 | N/A Clear | N/A .350 in. (8.89mm) | N/A 2 Row 10 Column |

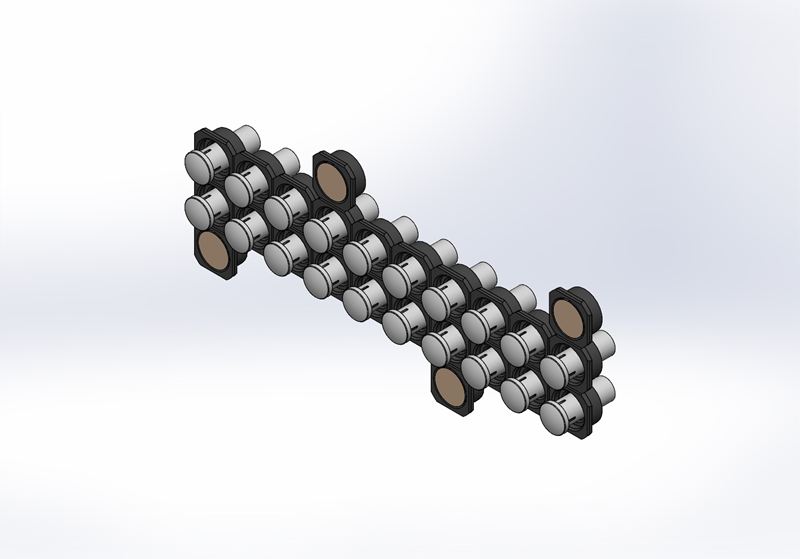

| MLPS-B-5-0210-DD-4-PLP5-2-375 |
 MLPS-B-5-0210-DD-4-PLP5-2-375 |
N/A | N/A Low Profile Dome | N/A 5mm | N/A PLP5 | N/A Clear | N/A .375 in. (9.525mm) | N/A 2 Row 10 Column |

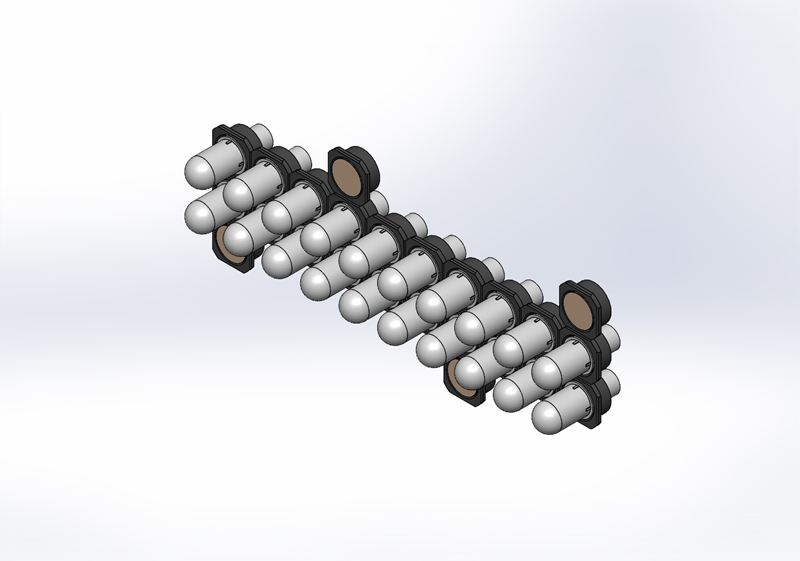

| MLPS-B-5-0210-DD-4-PLP5-250 |
 MLPS-B-5-0210-DD-4-PLP5-250 |
N/A
|
N/A Dome | N/A 5mm | N/A PLP5 | N/A Clear | N/A .250 in. (6.35mm) | N/A 2 Row 10 Column |

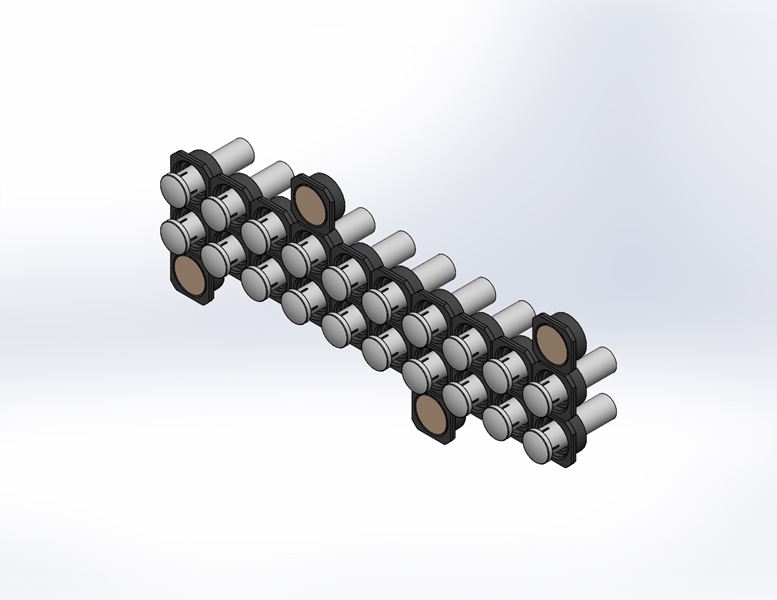

| MLPS-B-5-0210-DD-4-PLP5-2-500 |
 MLPS-B-5-0210-DD-4-PLP5-2-500 |
N/A
|
N/A Low Profile Dome | N/A 5mm | N/A PLP5 | N/A Clear | N/A .500 in. (12.7mm) | N/A 2 Row 10 Column |

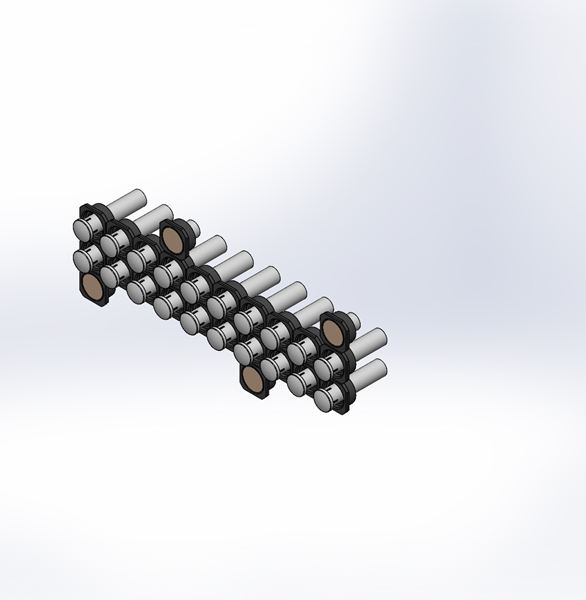

| MLPS-B-5-0210-DD-4-PLP5-2-625 |
 MLPS-B-5-0210-DD-4-PLP5-2-625 |
N/A
|
N/A Low Profile Dome | N/A 5mm | N/A PLP5 | N/A Clear | N/A .625 in. (15.875mm) | N/A 2 Row 10 Column |

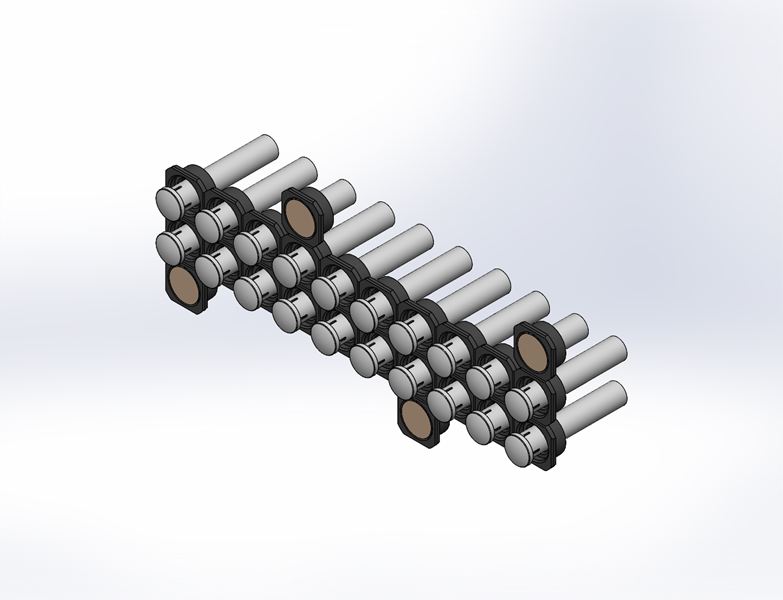

| MLPS-B-5-0210-DD-4-PLP5-2-750 |
 MLPS-B-5-0210-DD-4-PLP5-2-750 |
N/A
|
N/A Low Profile Dome | N/A 5mm | N/A PLP5 | N/A Clear | N/A .750 in. (19.05mm) | N/A 2 Row 10 Column |

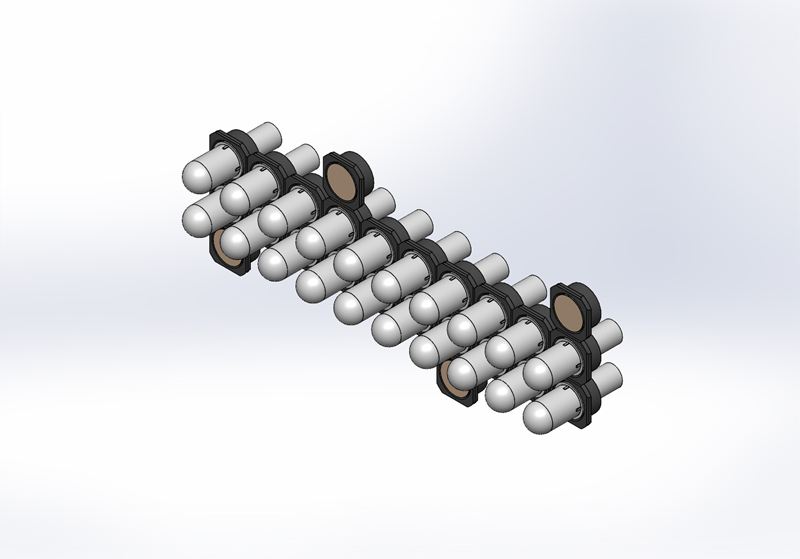

| MLPS-B-5-0210-DD-4-PLP5-350 |
 MLPS-B-5-0210-DD-4-PLP5-350 |
N/A
|
N/A Dome | N/A 5mm | N/A PLP5 | N/A Clear | N/A .350 in. (8.89mm) | N/A 2 Row 10 Column |
| MLPS-B-5-0210-DD-4-PLP5-375 |
 MLPS-B-5-0210-DD-4-PLP5-375 |
N/A
|
N/A Dome | N/A 5mm | N/A PLP5 | N/A Clear | N/A .375 in. (9.525mm) | N/A 2 Row 10 Column |
