IP67 heavy-duty threaded retention for maximum protection in industrial-grade applications.

  • Available in 6mm or 9mm front-mount lens size.
  • Vertical and right-angle configurations.
  • Ideal for space-constrained spaces inside enclosures and on PCB’s.
  • Range of lengths and lens colors.
  • Use with panel thickness 0.059 in. (1.5mm) to 0.236 in. (6.0mm)
  • Hardware included.
RHD
Unit of Measure
1 2 3 4 5 »

Item #


3D Model

Lens Profile

Lens Size

Color

Configuration

Lens Color

Length

RHD-1100-2500-F9PZB67PR
RHD-XXXX-XXXX-F9PX67PR-Blue
 		N/A N/A Low Profile Fresnel N/A 9mm IP67 N/A N/A Right Angle N/A Fresnel Blue N/A 2.496 in. (63.4mm)
RHD-1100-2500-F9PZG67PR
RHD-XXXX-XXXX-F9PX67PR-Green
 		N/A N/A Low Profile Fresnel N/A 9mm IP67 N/A N/A Right Angle N/A Fresnel Green N/A 2.496 in. (63.4mm)
RHD-1100-2500-F9PZR67PR
RHD-XXXX-XXXX-F9PX67PR-Red
 		N/A N/A Low Profile Fresnel N/A 9mm IP67 N/A N/A Right Angle N/A Fresnel Red N/A 2.496 in. (63.4mm)
RHD-1100-2500-F9PZY67PR
RHD-XXXX-XXXX-F9PX67PR-Yellow
 		N/A N/A Low Profile Fresnel N/A 9mm IP67 N/A N/A Right Angle N/A Fresnel Yellow N/A 2.496 in. (63.4mm)
RHD-1100-3000-F9P67PR
RHD-XXXX-XXXX-F9PX67PR-Clear
 		N/A CAD Icon (for items table) N/A Low Profile N/A 9mm IP67 N/A N/A Right Angle N/A Clear N/A 2.996 in. (76.1mm)
RHD-1100-3000-F9PD67PR
RHD-XXXX-XXXX-F9PX67PR-Diffused
 		N/A CAD Icon (for items table) N/A Low Profile Diffused N/A 9mm IP67 N/A N/A Right Angle N/A Diffused N/A 2.996 in. (76.1mm)
RHD-1100-3000-F9PS67PR
RHD-XXXX-XXXX-F9PX67PR-Smoked
 		N/A CAD Icon (for items table) N/A Low Profile Smoked N/A 9mm IP67 N/A N/A Right Angle N/A Smoked N/A 2.996 in. (76.1mm)
RHD-1100-3000-F9PZ67PR
RHD-XXXX-XXXX-F9PX67PR-Fresnel-Clear
 		N/A CAD Icon (for items table) N/A Low Profile Fresnel N/A 9mm IP67 N/A N/A Right Angle N/A Fresnel Clear N/A 2.996 in. (76.1mm)
RHD-1100-3000-F9PZB67PR
RHD-XXXX-XXXX-F9PX67PR-Blue
 		N/A CAD Icon (for items table) N/A Low Profile Fresnel N/A 9mm IP67 N/A N/A Right Angle N/A Fresnel Blue N/A 2.996 in. (76.1mm)
RHD-1100-3000-F9PZG67PR
RHD-XXXX-XXXX-F9PX67PR-Green
 		N/A CAD Icon (for items table) N/A Low Profile Fresnel N/A 9mm IP67 N/A N/A Right Angle N/A Fresnel Green N/A 2.996 in. (76.1mm)
RHD-1100-3000-F9PZR67PR
RHD-XXXX-XXXX-F9PX67PR-Red
 		N/A CAD Icon (for items table) N/A Low Profile Fresnel N/A 9mm IP67 N/A N/A Right Angle N/A Fresnel Red N/A 2.996 in. (76.1mm)
RHD-1100-3000-F9PZY67PR
RHD-XXXX-XXXX-F9PX67PR-Yellow
 		N/A CAD Icon (for items table) N/A Low Profile Fresnel N/A 9mm IP67 N/A N/A Right Angle N/A Fresnel Yellow N/A 2.996 in. (76.1mm)
RHD-1100-3500-F9P67PR
RHD-XXXX-XXXX-F9PX67PR-Clear
 		N/A N/A Low Profile N/A 9mm IP67 N/A N/A Right Angle N/A Clear N/A 3.496 in. (88.8mm)
RHD-1100-3500-F9PD67PR
RHD-XXXX-XXXX-F9PX67PR-Diffused
 		N/A N/A Low Profile Diffused N/A 9mm IP67 N/A N/A Right Angle N/A Diffused N/A 3.496 in. (88.8mm)
RHD-1100-3500-F9PS67PR
RHD-XXXX-XXXX-F9PX67PR-Smoked
 		N/A N/A Low Profile Smoked N/A 9mm IP67 N/A N/A Right Angle N/A Smoked N/A 3.496 in. (88.8mm)
RHD-1100-3500-F9PZ67PR
RHD-XXXX-XXXX-F9PX67PR-Fresnel-Clear
 		N/A N/A Low Profile Fresnel N/A 9mm IP67 N/A N/A Right Angle N/A Fresnel Clear N/A 3.496 in. (88.8mm)
RHD-1100-3500-F9PZB67PR
RHD-XXXX-XXXX-F9PX67PR-Blue
 		N/A N/A Low Profile Fresnel N/A 9mm IP67 N/A N/A Right Angle N/A Fresnel Blue N/A 3.496 in. (88.8mm)
RHD-1100-3500-F9PZG67PR
RHD-XXXX-XXXX-F9PX67PR-Green
 		N/A N/A Low Profile Fresnel N/A 9mm IP67 N/A N/A Right Angle N/A Fresnel Green N/A 3.496 in. (88.8mm)
RHD-1100-3500-F9PZR67PR
RHD-XXXX-XXXX-F9PX67PR-Red
 		N/A N/A Low Profile Fresnel N/A 9mm IP67 N/A N/A Right Angle N/A Fresnel Red N/A 3.496 in. (88.8mm)
RHD-1100-3500-F9PZY67PR
RHD-XXXX-XXXX-F9PX67PR-Yellow
 		N/A N/A Low Profile Fresnel N/A 9mm IP67 N/A N/A Right Angle N/A Fresnel Yellow N/A 3.496 in. (88.8mm)

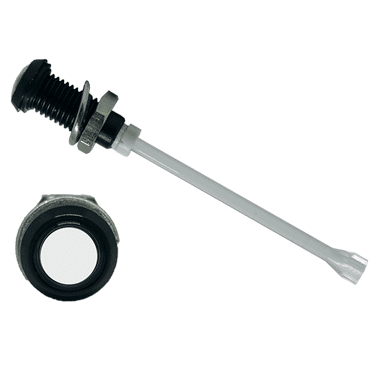

RHD-1140-F9P67PR
RHD-XXXX-F6PX67PR-Clear
 		N/A CAD Icon (for items table) N/A Low Profile N/A 9mm IP67 N/A N/A Vertical N/A Clear N/A 1.132 in. (28.8mm)

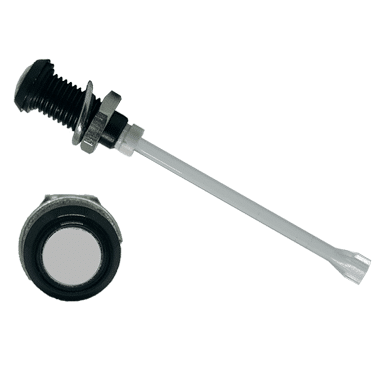

RHD-1140-F9PD67PR
RHD-XXXX-F6PX67PR-Diffused
 		N/A CAD Icon (for items table) N/A Low Profile Diffused N/A 9mm IP67 N/A N/A Vertical N/A Diffused N/A 1.132 in. (28.8mm)
RHD-1140-F9PS67PR
RHD-XXXX-F6PX67PR-Smoked
 		N/A CAD Icon (for items table) N/A Low Profile Smoked N/A 9mm IP67 N/A N/A Vertical N/A Smoked N/A 1.132 in. (28.8mm)

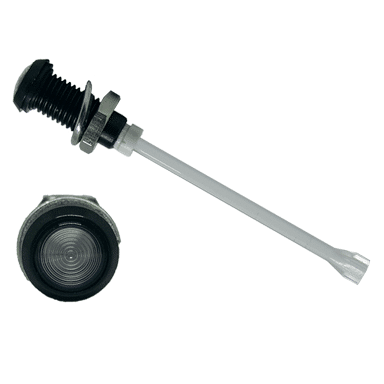

RHD-1140-F9PZ67PR
RHD-XXXX-F6PX67PR-Fresnel-Clear
 		N/A CAD Icon (for items table) N/A Low Profile Fresnel N/A 9mm IP67 N/A N/A Vertical N/A Fresnel Clear N/A 1.132 in. (28.8mm)

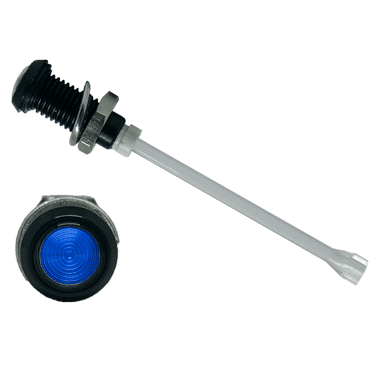

RHD-1140-F9PZB67PR
RHD-XXXX-F6PX67PR-Blue
 		N/A CAD Icon (for items table) N/A Low Profile Fresnel N/A 9mm IP67 N/A N/A Vertical N/A Fresnel Blue N/A 1.132 in. (28.8mm)
