Extruded self-retaining Through Hole LED mount.
  • Use with Bivar 3mm (T-1) or 5mm (T-1 ¾) LED
  • Range of height options to precisely elevate LEDs vertically from PCB
  • Customizable lengths
  • Also provided with an LED as a complete assembly
ELM
Unit of Measure
« 6 7 8 9 10 »

Item #


3D Model

Material

LED Size

Color

Leads

Height

ELM 1-374P
ELM-1-XXXP
 		N/A CAD Icon (for items table) N/A Extruded PVC N/A 5mm(T-1 3/4) N/A Natural N/A 2 Lead N/A .197 in. (5.0mm)
ELM 1-375
ELM1
 		N/A CAD Icon (for items table) N/A Extruded PVC N/A 5mm(T-1 3/4) N/A Black N/A 2 Lead N/A .375 in. (9.5mm)
ELM 1-375P
ELM-1-XXXP
 		N/A CAD Icon (for items table) N/A Extruded PVC N/A 5mm(T-1 3/4) N/A Natural N/A 2 Lead N/A .105 in. (2.67mm)
ELM 1-380
ELM1
 		N/A CAD Icon (for items table) N/A Extruded PVC N/A 5mm(T-1 3/4) N/A Black N/A 2 Lead N/A .380 in. (9.7mm)
ELM 1-380P
ELM-1-XXXP
 		N/A CAD Icon (for items table) N/A Extruded PVC N/A 5mm(T-1 3/4) N/A Natural N/A 2 Lead N/A .394 in. (10.0mm)
ELM 1-385
ELM1
 		N/A CAD Icon (for items table) N/A Extruded PVC N/A 5mm(T-1 3/4) N/A Black N/A 2 Lead N/A .385 in. (9.8mm)
ELM 1-385P
ELM-1-XXXP
 		N/A CAD Icon (for items table) N/A Extruded PVC N/A 5mm(T-1 3/4) N/A Natural N/A 2 Lead N/A .236 in. (6.0mm)
ELM 1-390
ELM1
 		N/A CAD Icon (for items table) N/A Extruded PVC N/A 5mm(T-1 3/4) N/A Black N/A 2 Lead N/A .390 in. (9.9mm)
ELM 1-390P
ELM-1-XXXP
 		N/A CAD Icon (for items table) N/A Extruded PVC N/A 5mm(T-1 3/4) N/A Natural N/A 2 Lead N/A .276 in. (7.0mm)
ELM 1-395
ELM1
 		N/A CAD Icon (for items table) N/A Extruded PVC N/A 5mm(T-1 3/4) N/A Black N/A 2 Lead N/A .395 in. (10.0mm)
ELM 1-395P
ELM-1-XXXP
 		N/A CAD Icon (for items table) N/A Extruded PVC N/A 5mm(T-1 3/4) N/A Natural N/A 2 Lead N/A .315 in. (8.0mm)
ELM 1-3MM
ELM1
 		N/A CAD Icon (for items table) N/A Extruded PVC N/A 5mm(T-1 3/4) N/A Black N/A 2 Lead N/A .118 in. (3.0mm)
ELM 1-3MMP
ELM-1-XXXP
 		N/A CAD Icon (for items table) N/A Extruded PVC N/A 5mm(T-1 3/4) N/A Natural N/A 2 Lead N/A .354 in. (9.0mm)
ELM 1-4.5MM
ELM1
 		N/A CAD Icon (for items table) N/A Extruded PVC N/A 5mm(T-1 3/4) N/A Black N/A 2 Lead N/A .177 in. (4.5mm)
ELM 1-4.5MMP

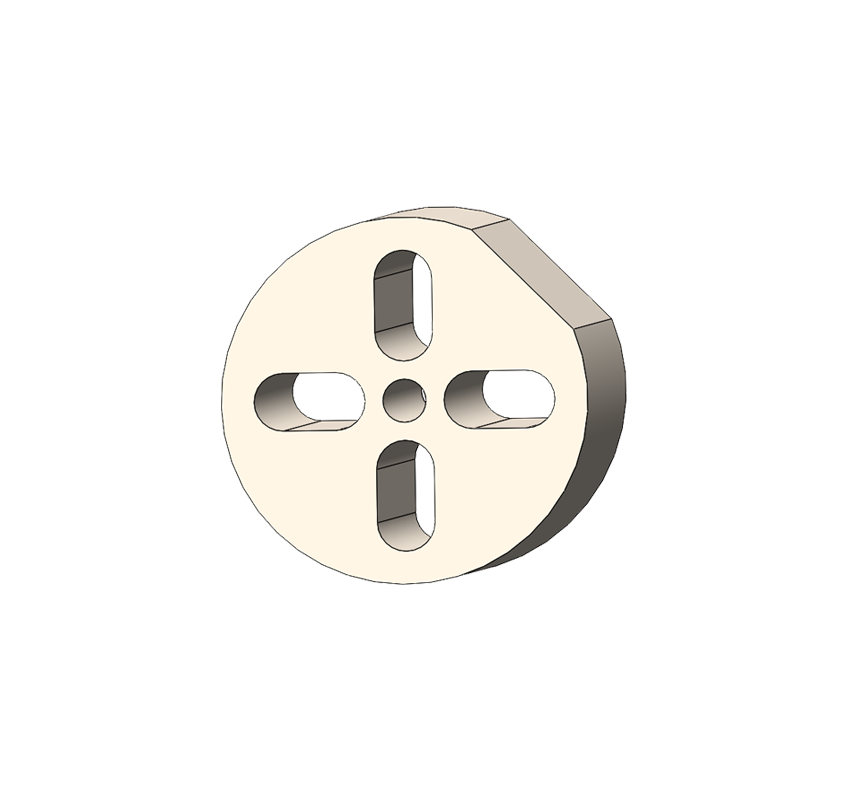

ELM-3-XXXP
 		N/A CAD Icon (for items table) N/A Extruded PVC N/A 5mm(T-1 3/4) N/A Natural N/A 2 Lead N/A .030 in. (.76mm)
ELM 1-400
ELM1
 		N/A CAD Icon (for items table) N/A Extruded PVC N/A 5mm(T-1 3/4) N/A Black N/A 2 Lead N/A .400 in. (10.2mm)
ELM 1-400P
ELM-3-XXXP
 		N/A CAD Icon (for items table) N/A Extruded PVC N/A 5mm(T-1 3/4) N/A Natural N/A 2 Lead N/A .035 in. (.89mm)
ELM 1-405
ELM1
 		N/A CAD Icon (for items table) N/A Extruded PVC N/A 5mm(T-1 3/4) N/A Black N/A 2 Lead N/A .405 in. (10.3mm)
ELM 1-405P
ELM-1-XXXP
 		N/A CAD Icon (for items table) N/A Extruded PVC N/A 5mm(T-1 3/4) N/A Natural N/A 2 Lead N/A .110 in. (2.79mm)
ELM 1-410
ELM1
 		N/A CAD Icon (for items table) N/A Extruded PVC N/A 5mm(T-1 3/4) N/A Black N/A 2 Lead N/A .410 in. (10.4mm)
ELM 1-410P
ELM-3-XXXP
 		N/A CAD Icon (for items table) N/A Extruded PVC N/A 5mm(T-1 3/4) N/A Natural N/A 2 Lead N/A .040 in. (1.02mm)
ELM 1-415
ELM1
 		N/A CAD Icon (for items table) N/A Extruded PVC N/A 5mm(T-1 3/4) N/A Black N/A 2 Lead N/A .415 in. (10.5mm)
ELM 1-415P
ELM-3-XXXP
 		N/A CAD Icon (for items table) N/A Extruded PVC N/A 5mm(T-1 3/4) N/A Natural N/A 2 Lead N/A .045 in. (1.14mm)
ELM 1-420
ELM1
 		N/A CAD Icon (for items table) N/A Extruded PVC N/A 5mm(T-1 3/4) N/A Black N/A 2 Lead N/A .420 in. (10.7mm)
ELM 1-420P
ELM-3-XXXP
 		N/A CAD Icon (for items table) N/A Extruded PVC N/A 5mm(T-1 3/4) N/A Natural N/A 2 Lead N/A .050 in. (1.27mm)
