Metal panel mount indicator with high visibility domed lens.

  • Available in 3mm (T-1) or 5mm (T-1 ¾) flanged LED lens size.
  • Voltage input options of 5V and 12V.
  • Wire terminals or with 24AWG stripped and tinned wire leads.
  • Mounting hardware included, packed separately.
  • Range of single and multi-colors, narrow viewing angle lens appearance options.
MPC
Unit of Measure
1 2 3

Item #


3D Model

Lens Profile

Housing Material

LED Color/Wavelength

Termination

Panel Cutout

Wire Length

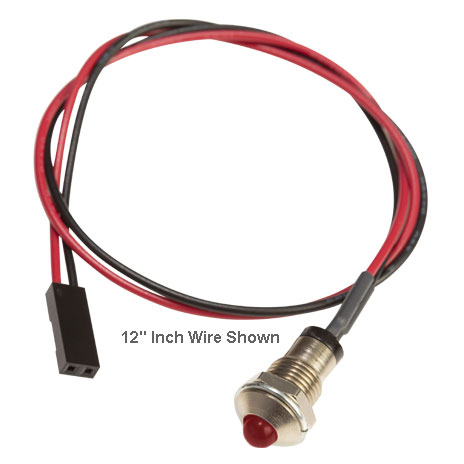

MPC5HDW8.0-CC
MPC5HDW8-0-CC
 		N/A CAD Icon (for items table) N/A Dome Diffused N/A Metal N/A Red 625nm N/A Wires Stripped/Tinned .100 Connector N/A Round N/A 8 in

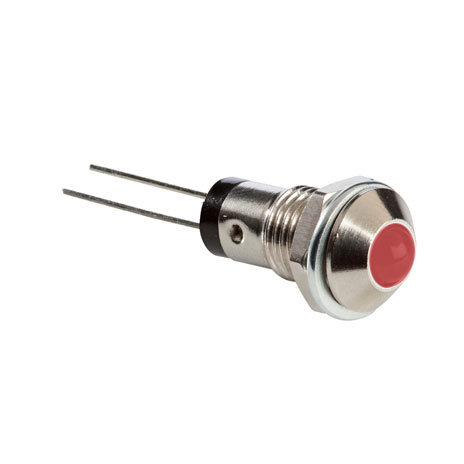

MPC5HT
MPC5HT
 		N/A CAD Icon (for items table) N/A Dome Tinted N/A Metal N/A Red 625nm N/A No Wires N/A Round N/A
MPC5HTW12.0
MPC5HTW12-0
 		N/A CAD Icon (for items table) N/A Dome Tinted N/A Metal N/A Red 625nm N/A Wires Stripped/Tinned N/A Round N/A 12 in

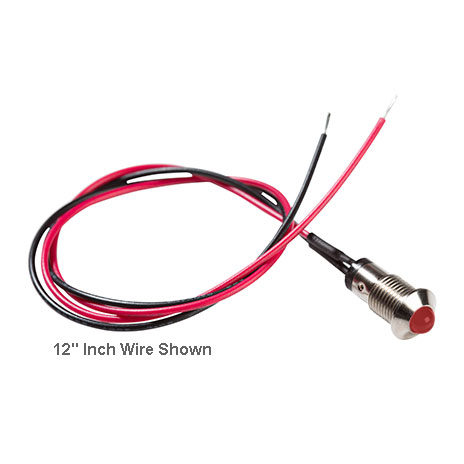

MPC5RD
MPC5RD
 		N/A CAD Icon (for items table) N/A Dome Diffused N/A Metal N/A Red 700nm N/A No Wires N/A Round N/A
MPC5RDW12.0
MPC5RDW12-0
 		N/A CAD Icon (for items table) N/A Dome Diffused N/A Metal N/A Red 700nm N/A Wires Stripped/Tinned N/A Round N/A 12 in
MPC5SRCW6.5
MPC5SRCW6-5
 		N/A CAD Icon (for items table) N/A Dome N/A Metal N/A Red 645nm N/A Wires Stripped/Tinned N/A Round N/A 6.5 in
MPC5YD
MPC5YD
 		N/A CAD Icon (for items table) N/A Dome Diffused N/A Metal N/A Yellow 590nm N/A No Wires N/A Round N/A
MPC5YDW12.0
MPC5YDW12-0
 		N/A CAD Icon (for items table) N/A Dome Diffused N/A Metal N/A Yellow 590nm N/A Wires Stripped/Tinned N/A Round N/A 12 in

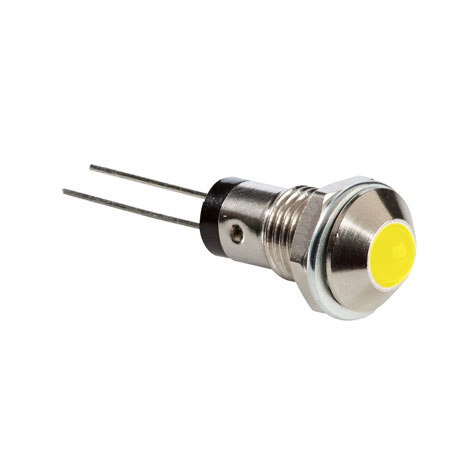

MPC5YT
MPC5YT
 		N/A CAD Icon (for items table) N/A Dome Tinted N/A Metal N/A Yellow 590nm N/A No Wires N/A Round N/A

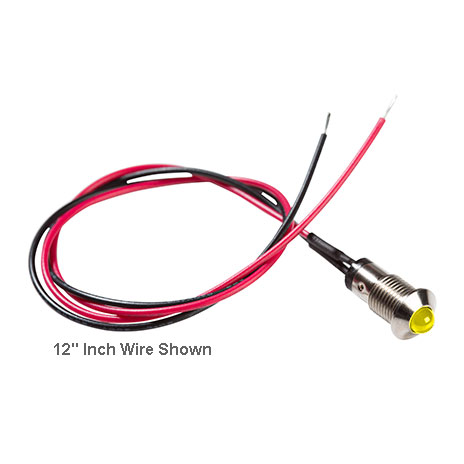

MPC5YTW12.0
MPC5YTW12-0
 		N/A CAD Icon (for items table) N/A Dome Tinted N/A Metal N/A Yellow 590nm N/A Wires Stripped/Tinned N/A Round N/A 12 in
