Multi-level high one to four station right angle LED holder.
  • Use with Bivar 3mm (T-1) LED.
  • Interlocking holders make these highly configurable from one to four station.
  • Shock and vibration resistant, ideal space saving solution.
  • Variety of heights, centerlines, lens, and color combinations.
  • Also available as complete Circuit Board Indicator assembly.
H
Unit of Measure
1 2 3 4

Item #


3D Model

Material

LED Size

Panel Cutout

Color

Leads

Height

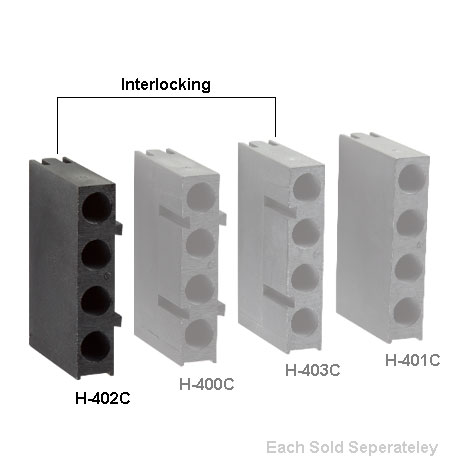

H-402C
H-402C
 		N/A CAD Icon (for items table) N/A Molded Nylon N/A 3mm(T-1) N/A Round N/A Black N/A 2 Lead N/A .840 in. (21.3mm)

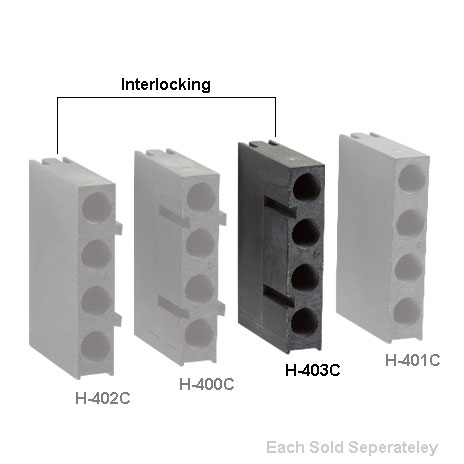

H-403C
H-403C
 		N/A CAD Icon (for items table) N/A Molded Nylon N/A 3mm(T-1) N/A Round N/A Black N/A 2 Lead N/A .840 in. (21.3mm)
H-420C
H-420C
 		N/A CAD Icon (for items table) N/A Molded Nylon N/A 3mm(T-1) N/A Round N/A Black N/A 2 Lead N/A .800 in. (20.3mm)
H-441C
H-441
 		N/A CAD Icon (for items table) N/A Molded Nylon N/A 3mm(T-1) N/A Round N/A Black N/A 2 Lead N/A .445 in. (11.3mm)
H-455C
H-455
 		N/A CAD Icon (for items table) N/A Molded Nylon N/A 3mm(T-1) N/A Round N/A Black N/A 2 Lead N/A .660 in. (16.8mm)

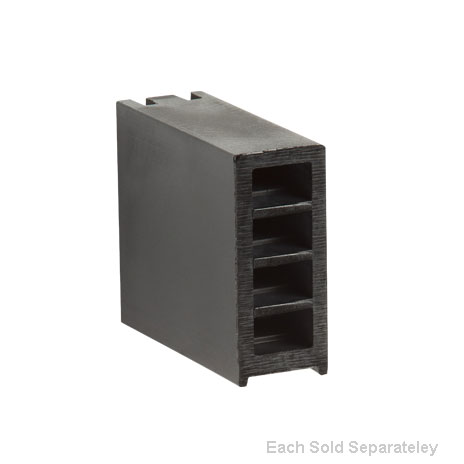

H-480C
H-480C
 		N/A CAD Icon (for items table) N/A Molded Nylon N/A 2mm x 3mm N/A Round N/A Black N/A 2 Lead N/A .470 in. (11.9mm)
H-485C
H-485C
 		N/A CAD Icon (for items table) N/A Molded Nylon N/A 2mm N/A Round N/A Black N/A 2 Lead N/A .445 in. (11.3mm)
