Right Angle
Multi-level high one to four station right angle LED holder.
- Use with Bivar 3mm (T-1) LED.

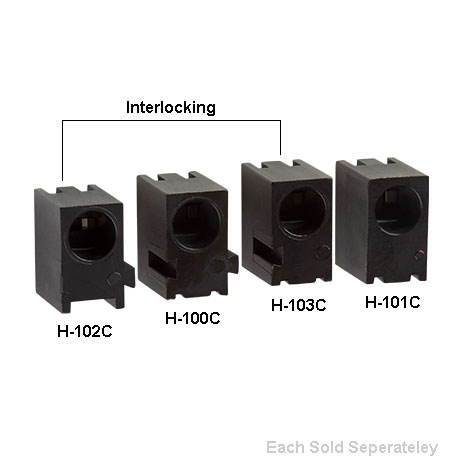

- Interlocking holders make these highly configurable from one to four station.
- Shock and vibration resistant, ideal space saving solution.
- Variety of heights, centerlines, lens, and color combinations.
- Also available as complete Circuit Board Indicator assembly.
Item # |
Image |
3D Model |
Material |
LED Size |
Panel Cutout |
Color |
Leads |
Height |
|---|---|---|---|---|---|---|---|---|
| H-100C |
 H100C-103C |
3D Model
N/A
|
Material N/A Molded Nylon | LED Size N/A 3mm(T-1) | Panel Cutout N/A Round | Color N/A Black | Leads N/A 2 Lead | Height N/A .132 in. (3.4mm) |
| H-100C-1 |
H100C-103C |
3D Model
N/A
|
Material N/A Molded Nylon | LED Size N/A 3mm(T-1) | Panel Cutout N/A Round | Color N/A Black | Leads N/A 2 Lead | Height N/A .150 in. (3.8mm) |
| H-101C |
H100C-103C |
3D Model
N/A
|
Material N/A Molded Nylon | LED Size N/A 3mm(T-1) | Panel Cutout N/A Round | Color N/A Black | Leads N/A 2 Lead | Height N/A .132 in. (3.4mm) |
| H-101C-1 |
H100C-103C |
3D Model
N/A
|
Material N/A Molded Nylon | LED Size N/A 3mm(T-1) | Panel Cutout N/A Round | Color N/A Black | Leads N/A 2 Lead | Height N/A .150 in. (3.8mm) |
| H-101C-EL |
H100C-103C |
3D Model
N/A
|
Material N/A Molded Nylon | LED Size N/A 3mm(T-1) | Panel Cutout N/A Round | Color N/A Black | Leads N/A 2 Lead | Height N/A .285 in. (7.3mm) |
| H-102C |
H100C-103C |
3D Model
N/A
|
Material N/A Molded Nylon | LED Size N/A 3mm(T-1) | Panel Cutout N/A Round | Color N/A Black | Leads N/A 2 Lead | Height N/A .132 in. (3.4mm) |
| H-103C |
H100C-103C |
3D Model
N/A
|
Material N/A Molded Nylon | LED Size N/A 3mm(T-1) | Panel Cutout N/A Round | Color N/A Black | Leads N/A 2 Lead | Height N/A .132 in. (3.4mm) |

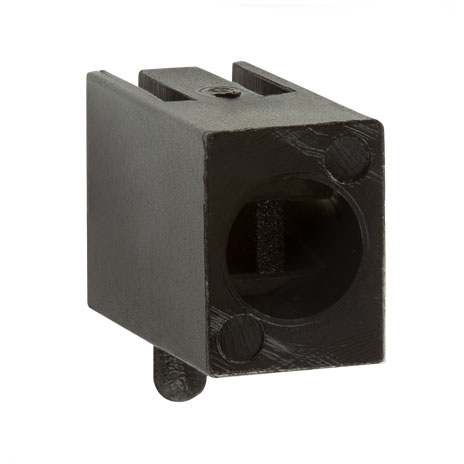

| H-125C-LP |
 H-125C-LP |
3D Model
N/A
|
Material N/A Molded Nylon | LED Size N/A 3mm(T-1) | Panel Cutout N/A Round | Color N/A Black | Leads N/A 2 Lead | Height N/A .236 in. (6.0mm) |

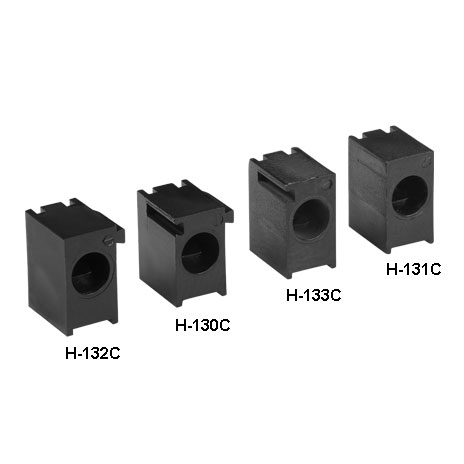

| H-130C-1-120 |
 H-130C-to-133C |
3D Model
N/A
|
Material N/A Molded Nylon | LED Size N/A 3mm(T-1) | Panel Cutout N/A Round | Color N/A Black | Leads N/A 2 Lead | Height N/A .250 in. (6.4mm) |
| H-130C-1-140 |
H-130C-to-133C |
3D Model
N/A
|
Material N/A Molded Nylon | LED Size N/A 3mm(T-1) | Panel Cutout N/A Round | Color N/A Black | Leads N/A 2 Lead | Height N/A .270 in. (6.9mm) |
| H-130C-1-160 |
H-130C-to-133C |
3D Model
N/A
|
Material N/A Molded Nylon | LED Size N/A 3mm(T-1) | Panel Cutout N/A Round | Color N/A Black | Leads N/A 2 Lead | Height N/A .290 in. (7.4mm) |
| H-130C-1-180 |
H-130C-to-133C |
3D Model
N/A
|
Material N/A Molded Nylon | LED Size N/A 3mm(T-1) | Panel Cutout N/A Round | Color N/A Black | Leads N/A 2 Lead | Height N/A .310 in. (7.8mm) |
| H-130C-2-120 |
H-130C-to-133C |
3D Model
N/A
|
Material N/A Molded Nylon | LED Size N/A 3mm(T-1) | Panel Cutout N/A Round | Color N/A Black | Leads N/A 2 Lead | Height N/A .250 in. (6.4mm) |
| H-131C-1-120 |
H-130C-to-133C |
3D Model
N/A
|
Material N/A Molded Nylon | LED Size N/A 3mm(T-1) | Panel Cutout N/A Round | Color N/A Black | Leads N/A 2 Lead | Height N/A .250 in. (6.4mm) |
| H-131C-1-140 |
H-130C-to-133C |
3D Model
N/A
|
Material N/A Molded Nylon | LED Size N/A 3mm(T-1) | Panel Cutout N/A Round | Color N/A Black | Leads N/A 2 Lead | Height N/A .270 in. (6.9mm) |
| H-131C-1-160 |
H-130C-to-133C |
3D Model
N/A
|
Material N/A Molded Nylon | LED Size N/A 3mm(T-1) | Panel Cutout N/A Round | Color N/A Black | Leads N/A 2 Lead | Height N/A .290 in. (7.4mm) |
| H-131C-1-180 |
H-130C-to-133C |
3D Model
N/A
|
Material N/A Molded Nylon | LED Size N/A 3mm(T-1) | Panel Cutout N/A Round | Color N/A Black | Leads N/A 2 Lead | Height N/A .310 in. (7.8mm) |
| H-131C-2-120 |
H-130C-to-133C |
3D Model
N/A
|
Material N/A Molded Nylon | LED Size N/A 3mm(T-1) | Panel Cutout N/A Round | Color N/A Black | Leads N/A 2 Lead | Height N/A .250 in. (6.4mm) |
| H-131C-2-140 |
H-130C-to-133C |
3D Model
N/A
|
Material N/A Molded Nylon | LED Size N/A 3mm(T-1) | Panel Cutout N/A Round | Color N/A Black | Leads N/A 2 Lead | Height N/A .270 in. (6.9mm) |
| H-131C-2-160 |
H-130C-to-133C |
3D Model
N/A
|
Material N/A Molded Nylon | LED Size N/A 3mm(T-1) | Panel Cutout N/A Round | Color N/A Black | Leads N/A 2 Lead | Height N/A .290 in. (7.4mm) |
| H-131C-2-180 |
H-130C-to-133C |
3D Model
N/A
|
Material N/A Molded Nylon | LED Size N/A 3mm(T-1) | Panel Cutout N/A Round | Color N/A Black | Leads N/A 2 Lead | Height N/A .310 in. (7.8mm) |
| H-132C-1-120 |
H-130C-to-133C |
3D Model
N/A
|
Material N/A Molded Nylon | LED Size N/A 3mm(T-1) | Panel Cutout N/A Round | Color N/A Black | Leads N/A 2 Lead | Height N/A .250 in. (6.4mm) |
| H-132C-1-140 |
H-130C-to-133C |
3D Model
N/A
|
Material N/A Molded Nylon | LED Size N/A 3mm(T-1) | Panel Cutout N/A Round | Color N/A Black | Leads N/A 2 Lead | Height N/A .270 in. (6.9mm) |
| H-132C-1-180 |
H-130C-to-133C |
3D Model
N/A
|
Material N/A Molded Nylon | LED Size N/A 3mm(T-1) | Panel Cutout N/A Round | Color N/A Black | Leads N/A 2 Lead | Height N/A .250 in. (6.4mm) |
| H-133C-1-120 |
H-130C-to-133C |
3D Model
N/A
|
Material N/A Molded Nylon | LED Size N/A 3mm(T-1) | Panel Cutout N/A Round | Color N/A Black | Leads N/A 2 Lead | Height N/A .250 in. (6.4mm) |
