• crystal-oscillator-insulators
Optimal crystal oscillator insulation and elevation from the PCB.
  • Improves performance and cooling efficiency.
  • Made from UL rated 94VTM-2 polyester film.
  • Range of dimensional options.
1 - 13 of 13 | Results Per Page | View | Unit of Measure
1
Request Information Compare Items
Clear Filter

Color

  • Clear
  • White

Thickness

  • .005 in. (0.1mm)
  • .015 in. (0.4mm)
  • .025 in. (0.6mm)
  • .035 in. (0.9mm)
  • .045 in. (1.1mm)

Length

  • .465 in. (11.8mm)
  • .495 in. (12.6mm)

Width

  • .219 in. (5.6mm)
  • .245 in. (6.2mm)

Item #


3D Model

Shape

Color

Thickness

Length

Width

Stock

470-015
471-045
 		N/A CAD Icon (for items table) N/A Rectangular N/A White N/A .015 in. (0.4mm) N/A .495 in. (12.6mm) N/A .245 in. (6.2mm) N/A
CHECK STOCK
470-025
471-045
 		N/A CAD Icon (for items table) N/A Rectangular N/A White N/A .025 in. (0.6mm) N/A .495 in. (12.6mm) N/A .245 in. (6.2mm) N/A
CHECK STOCK
470-035
471-045
 		N/A CAD Icon (for items table) N/A Rectangular N/A White N/A .035 in. (0.9mm) N/A .495 in. (12.6mm) N/A .245 in. (6.2mm) N/A
CHECK STOCK
470-045
471-045
 		N/A CAD Icon (for items table) N/A Rectangular N/A White N/A .045 in. (1.1mm) N/A .495 in. (12.6mm) N/A .245 in. (6.2mm) N/A
CHECK STOCK
471-015
471-045
 		N/A CAD Icon (for items table) N/A Rectangular N/A White N/A .015 in. (0.4mm) N/A .495 in. (12.6mm) N/A .245 in. (6.2mm) N/A
CHECK STOCK
471-025
471-045
 		N/A CAD Icon (for items table) N/A Rectangular N/A White N/A .025 in. (0.6mm) N/A .495 in. (12.6mm) N/A .245 in. (6.2mm) N/A
CHECK STOCK
471-035
471-045
 		N/A CAD Icon (for items table) N/A Rectangular N/A White N/A .035 in. (0.9mm) N/A .495 in. (12.6mm) N/A .245 in. (6.2mm) N/A
CHECK STOCK
471-045
471-045
 		N/A CAD Icon (for items table) N/A Rectangular N/A White N/A .045 in. (1.1mm) N/A .495 in. (12.6mm) N/A .245 in. (6.2mm) N/A
CHECK STOCK
CI-192-028
CI-192-050
 		N/A CAD Icon (for items table) N/A Rectangular N/A Clear N/A .005 in. (0.1mm) N/A .465 in. (11.8mm) N/A .219 in. (5.6mm) N/A
CHECK STOCK
CI-192-028-3
CI-192-050-3
 		N/A CAD Icon (for items table) N/A Rectangular N/A Clear N/A .005 in. (0.1mm) N/A .465 in. (11.8mm) N/A .219 in. (5.6mm) N/A
CHECK STOCK
CI-192-028-3SR
CI-192-050-3
 		N/A CAD Icon (for items table) N/A Rectangular N/A Clear N/A .005 in. (0.1mm) N/A .465 in. (11.8mm) N/A .219 in. (5.6mm) N/A
CHECK STOCK
CI-192-028-SR
CI-192-050
 		N/A CAD Icon (for items table) N/A Rectangular N/A Clear N/A .005 in. (0.1mm) N/A .465 in. (11.8mm) N/A .219 in. (5.6mm) N/A
CHECK STOCK

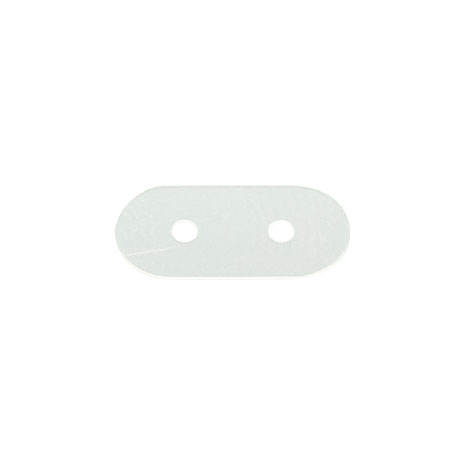

CI-192-050
CI-192-050
 		N/A CAD Icon (for items table) N/A Rectangular N/A Clear N/A .005 in. (0.1mm) N/A .465 in. (11.8mm) N/A .219 in. (5.6mm) N/A
CHECK STOCK
