ORFLP
Flexible Systems
Board mount adapter system with built-in Bivar 4-pin Through-Hole Superflux LED and Flexible Light Pipe.
- Available in 1mm, 2mm optical fiber diameter.
- Optical fiber length: 1.0 in. to over 100 ft.
- Single and multi-color Superflux LEDs.
- Lens shapes: Round, Oval, Rectangular
- Range of lens sizes, and colors available.
- Optical fiber colors: red, green, blue, yellow, white, black.
Item # |
Image |
3D Model |
Lens Profile |
Lens Size |
Panel Cutout |
Luminous Intensity |
Adapter LED Color/Wavelength |
Adapter Optical Fiber Diameter |
Optical Fiber Color |
Optical Fiber Length |
|---|---|---|---|---|---|---|---|---|---|---|
| LC1-2.21-F7P-2 |
 Optical-Fiber-Lens-Low-Profile |
3D Model
N/A
|
Lens Profile N/A Low Profile | Lens Size N/A 7mm | Panel Cutout N/A | Luminous Intensity N/A | Adapter LED Color/Wavelength N/A NULL | Adapter Optical Fiber Diameter N/A 1mm | Optical Fiber Color N/A Red | Optical Fiber Length N/A 2.21 in. |
| LC1-2.21-F7P-4 |
Optical-Fiber-Lens-Low-Profile |
3D Model
N/A
|
Lens Profile N/A Low Profile | Lens Size N/A 7mm | Panel Cutout N/A | Luminous Intensity N/A | Adapter LED Color/Wavelength N/A NULL | Adapter Optical Fiber Diameter N/A 1mm | Optical Fiber Color N/A Yellow | Optical Fiber Length N/A 2.21 in. |
| LC1-2.21-F7P-5 |
Optical-Fiber-Lens-Low-Profile |
3D Model
N/A
|
Lens Profile N/A Low Profile | Lens Size N/A 7mm | Panel Cutout N/A | Luminous Intensity N/A | Adapter LED Color/Wavelength N/A NULL | Adapter Optical Fiber Diameter N/A 1mm | Optical Fiber Color N/A Green | Optical Fiber Length N/A 2.21 in. |
| LC1-2.21-F7P-6 |
Optical-Fiber-Lens-Low-Profile |
3D Model
N/A
|
Lens Profile N/A Low Profile | Lens Size N/A 7mm | Panel Cutout N/A | Luminous Intensity N/A | Adapter LED Color/Wavelength N/A NULL | Adapter Optical Fiber Diameter N/A 1mm | Optical Fiber Color N/A Blue | Optical Fiber Length N/A 2.21 in. |
| LC1-2.21-F7P-9 |
Optical-Fiber-Lens-Low-Profile |
3D Model
N/A
|
Lens Profile N/A Low Profile | Lens Size N/A 7mm | Panel Cutout N/A | Luminous Intensity N/A | Adapter LED Color/Wavelength N/A NULL | Adapter Optical Fiber Diameter N/A 1mm | Optical Fiber Color N/A White | Optical Fiber Length N/A 2.21 in. |
| OR1-1.5-RGB-F7P-2 |

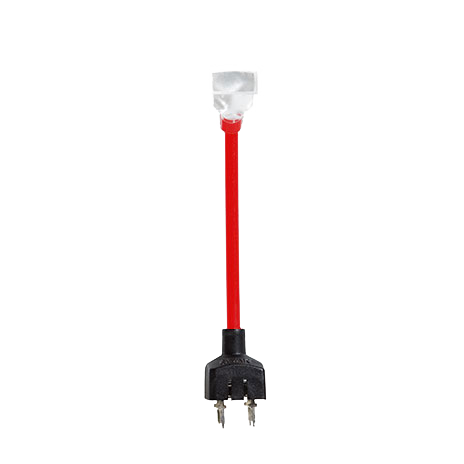

 R25-RD |
3D Model
N/A
|
Lens Profile N/A Low Profile | Lens Size N/A 7mm | Panel Cutout N/A | Luminous Intensity N/A | Adapter LED Color/Wavelength N/A Red 630nm/Green 525nm/Blue 470nm | Adapter Optical Fiber Diameter N/A 1mm | Optical Fiber Color N/A Red | Optical Fiber Length N/A 1.5 in. |
| OR1-1.5-RGB-F7P-4 |
 R25-YW |
3D Model
N/A
|
Lens Profile N/A Low Profile | Lens Size N/A 7mm | Panel Cutout N/A | Luminous Intensity N/A | Adapter LED Color/Wavelength N/A Red 630nm/Green 525nm/Blue 470nm | Adapter Optical Fiber Diameter N/A 1mm | Optical Fiber Color N/A Yellow | Optical Fiber Length N/A 1.5 in. |
| OR1-1.5-RGB-F7P-5 |
 R25-GN |
3D Model
N/A
|
Lens Profile N/A Low Profile | Lens Size N/A 7mm | Panel Cutout N/A | Luminous Intensity N/A | Adapter LED Color/Wavelength N/A Red 630nm/Green 525nm/Blue 470nm | Adapter Optical Fiber Diameter N/A 1mm | Optical Fiber Color N/A Green | Optical Fiber Length N/A 1.5 in. |
| OR1-1.5-RGB-F7P-6 |
 R25-BE |
3D Model
N/A
|
Lens Profile N/A Low Profile | Lens Size N/A 7mm | Panel Cutout N/A | Luminous Intensity N/A | Adapter LED Color/Wavelength N/A Red 630nm/Green 525nm/Blue 470nm | Adapter Optical Fiber Diameter N/A 1mm | Optical Fiber Color N/A Blue | Optical Fiber Length N/A 1.5 in. |
| OR1-1.5-RGB-F7P-9 |

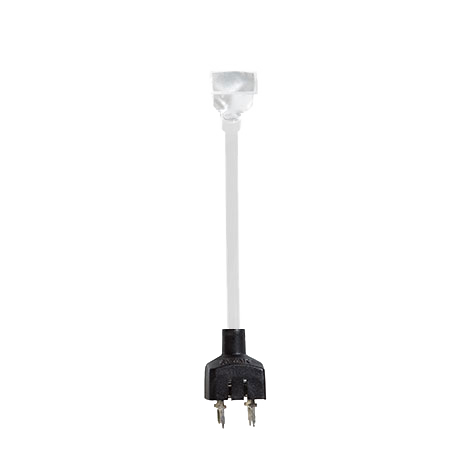

 R25-WE |
3D Model
N/A
|
Lens Profile N/A Low Profile | Lens Size N/A 7mm | Panel Cutout N/A | Luminous Intensity N/A | Adapter LED Color/Wavelength N/A Red 630nm/Green 525nm/Blue 470nm | Adapter Optical Fiber Diameter N/A 1mm | Optical Fiber Color N/A White | Optical Fiber Length N/A 1.5 in. |
| OR1-10.0-GRN-F4P-2 |
R25-RD |
3D Model N/A | Lens Profile N/A Low Profile | Lens Size N/A 4.2mm | Panel Cutout N/A | Luminous Intensity N/A | Adapter LED Color/Wavelength N/A Green 527nm | Adapter Optical Fiber Diameter N/A 1mm | Optical Fiber Color N/A Red | Optical Fiber Length N/A 10.0 in. |
| OR1-10.0-GRN-F4P-4 |
R25-YW |
3D Model N/A | Lens Profile N/A Low Profile | Lens Size N/A 4.2mm | Panel Cutout N/A | Luminous Intensity N/A | Adapter LED Color/Wavelength N/A Green 527nm | Adapter Optical Fiber Diameter N/A 1mm | Optical Fiber Color N/A Yellow | Optical Fiber Length N/A 10.0 in. |
| OR1-10.0-GRN-F4P-5 |
R25-GN |
3D Model N/A | Lens Profile N/A Low Profile | Lens Size N/A 4.2mm | Panel Cutout N/A | Luminous Intensity N/A | Adapter LED Color/Wavelength N/A Green 527nm | Adapter Optical Fiber Diameter N/A 1mm | Optical Fiber Color N/A Green | Optical Fiber Length N/A 10.0 in. |
| OR1-10.0-GRN-F4P-6 |
R25-BE |
3D Model N/A | Lens Profile N/A Low Profile | Lens Size N/A 4.2mm | Panel Cutout N/A Round | Luminous Intensity N/A | Adapter LED Color/Wavelength N/A | Adapter Optical Fiber Diameter N/A | Optical Fiber Color N/A White | Optical Fiber Length N/A 10.0 in. |
| OR1-10.0-GRN-F4P-9 |
R25-WE |
3D Model N/A | Lens Profile N/A Low Profile | Lens Size N/A 4.2mm | Panel Cutout N/A | Luminous Intensity N/A | Adapter LED Color/Wavelength N/A Green 527nm | Adapter Optical Fiber Diameter N/A 1mm | Optical Fiber Color N/A Blue | Optical Fiber Length N/A 10.0 in. |
| OR1-10.0-RED-F4P-2 |
R25-RD |
3D Model N/A | Lens Profile N/A Low Profile | Lens Size N/A 4.2mm | Panel Cutout N/A | Luminous Intensity N/A | Adapter LED Color/Wavelength N/A Red 635nm | Adapter Optical Fiber Diameter N/A 1mm | Optical Fiber Color N/A Red | Optical Fiber Length N/A 10.0 in. |
| OR1-10.0-RED-F4P-4 |
R25-YW |
3D Model N/A | Lens Profile N/A Low Profile | Lens Size N/A 4.2mm | Panel Cutout N/A | Luminous Intensity N/A | Adapter LED Color/Wavelength N/A Red 635nm | Adapter Optical Fiber Diameter N/A 1mm | Optical Fiber Color N/A Yellow | Optical Fiber Length N/A 10.0 in. |
| OR1-10.0-RED-F4P-5 |
R25-GN |
3D Model N/A | Lens Profile N/A Low Profile | Lens Size N/A 4.2mm | Panel Cutout N/A | Luminous Intensity N/A | Adapter LED Color/Wavelength N/A Red 635nm | Adapter Optical Fiber Diameter N/A 1mm | Optical Fiber Color N/A Green | Optical Fiber Length N/A 10.0 in. |
| OR1-10.0-RED-F4P-6 |
R25-BE |
3D Model N/A | Lens Profile N/A Low Profile | Lens Size N/A 4.2mm | Panel Cutout N/A | Luminous Intensity N/A | Adapter LED Color/Wavelength N/A Red 635nm | Adapter Optical Fiber Diameter N/A 1mm | Optical Fiber Color N/A Blue | Optical Fiber Length N/A 10.0 in. |
| OR1-10.0-RED-F4P-9 |
R25-WE |
3D Model N/A | Lens Profile N/A Low Profile | Lens Size N/A 4.2mm | Panel Cutout N/A | Luminous Intensity N/A | Adapter LED Color/Wavelength N/A Red 635nm | Adapter Optical Fiber Diameter N/A 1mm | Optical Fiber Color N/A White | Optical Fiber Length N/A 10.0 in. |
| OR1-24.0-RG-F4P-2 |
R25-RD |
3D Model N/A | Lens Profile N/A Low Profile | Lens Size N/A 4.2mm | Panel Cutout N/A | Luminous Intensity N/A | Adapter LED Color/Wavelength N/A Red 630nm/Green 525nm | Adapter Optical Fiber Diameter N/A 1mm | Optical Fiber Color N/A Red | Optical Fiber Length N/A 24.0 in. |
| OR1-24.0-RG-F4P-4 |
R25-YW |
3D Model N/A | Lens Profile N/A Low Profile | Lens Size N/A 4.2mm | Panel Cutout N/A | Luminous Intensity N/A | Adapter LED Color/Wavelength N/A Red 630nm/Green 525nm | Adapter Optical Fiber Diameter N/A 1mm | Optical Fiber Color N/A Yellow | Optical Fiber Length N/A 24.0 in. |
| OR1-24.0-RG-F4P-5 |
R25-GN |
3D Model N/A | Lens Profile N/A Low Profile | Lens Size N/A 4.2mm | Panel Cutout N/A | Luminous Intensity N/A | Adapter LED Color/Wavelength N/A Red 630nm/Green 525nm | Adapter Optical Fiber Diameter N/A 1mm | Optical Fiber Color N/A Green | Optical Fiber Length N/A 24.0 in. |
| OR1-24.0-RG-F4P-6 |
R25-BE |
3D Model N/A | Lens Profile N/A Low Profile | Lens Size N/A 4.2mm | Panel Cutout N/A | Luminous Intensity N/A | Adapter LED Color/Wavelength N/A Red 630nm/Green 525nm | Adapter Optical Fiber Diameter N/A 1mm | Optical Fiber Color N/A Blue | Optical Fiber Length N/A 24.0 in. |
| OR1-24.0-RG-F4P-9 |
R25-WE |
3D Model N/A | Lens Profile N/A Low Profile | Lens Size N/A 4.2mm | Panel Cutout N/A | Luminous Intensity N/A | Adapter LED Color/Wavelength N/A Red 630nm/Green 525nm | Adapter Optical Fiber Diameter N/A 1mm | Optical Fiber Color N/A White | Optical Fiber Length N/A 24.0 in. |
