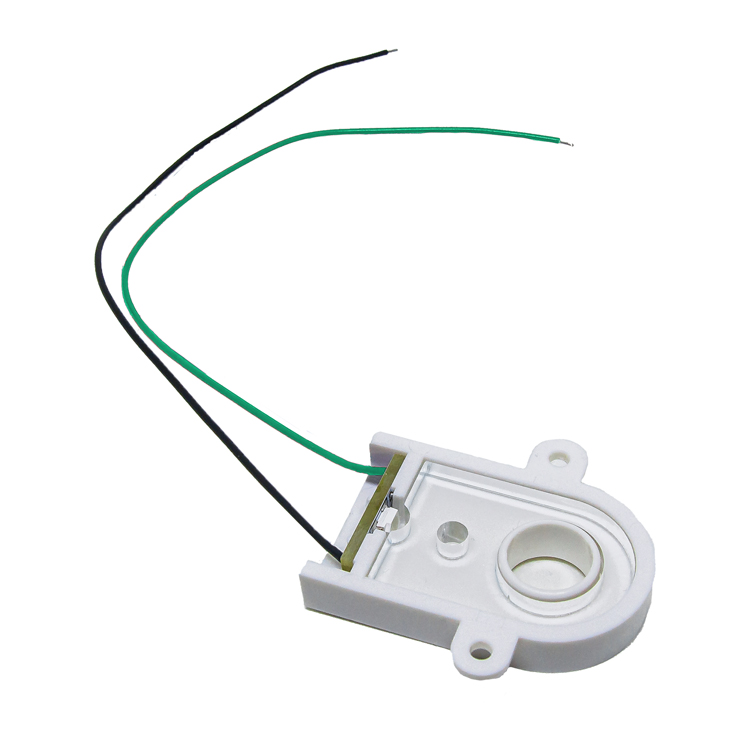

Circular shaped surface area light guides feature a high quality RGB light engine and are available in two sizes. SAC provides easy product installation with several mounting options including mounting screw and adhesive attachment.
Item # |
Image |
3D Model |
Body Length |
Body Width |
Wire Length |
Color/Wavelength |
LED |
|---|---|---|---|---|---|---|---|

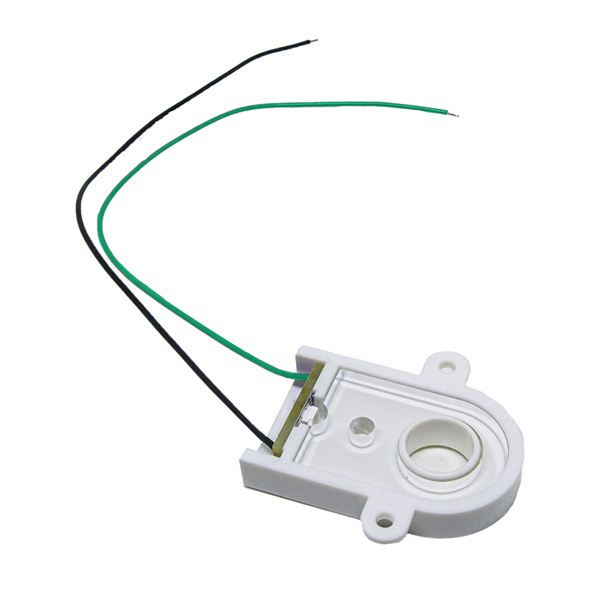

| SAC-0003-GN |
 SAC-0003-GN |
N/A
|
N/A 1.48 in. (37.6mm) | N/A .95 in. (24.2mm) | N/A 6.0 in. (152mm) | N/A Green 520nm | N/A SMTL2-UPGC |
| SAC-0003-RB |
 SAC-0003-RB |
N/A | N/A 1.48 in. (37.6mm) | N/A .95 in. (24.2mm) | N/A 6.0 in. (152mm) | N/A Red 624nm/Blue 470nm | N/A SMTL4-SBC-RB |

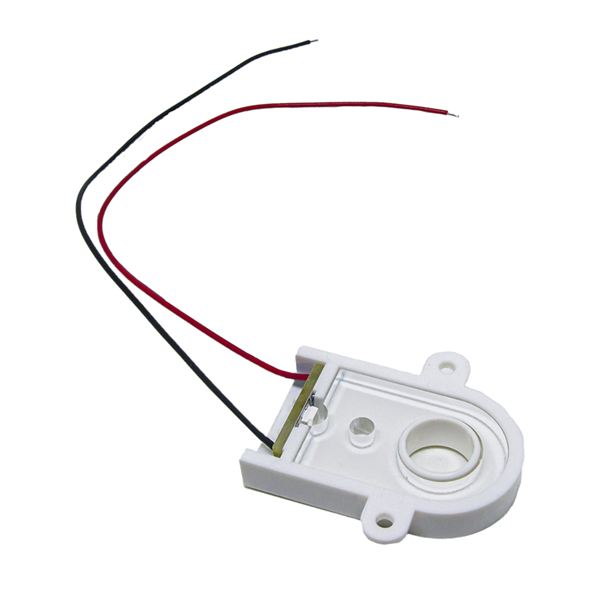

| SAC-0003-RD |
 SAC-0003-RD |
N/A | N/A 1.48 in. (37.6mm) | N/A .95 in. (24.2mm) | N/A 6.0 in. (152mm) | N/A Red 620nm | N/A SMTL2-URC |

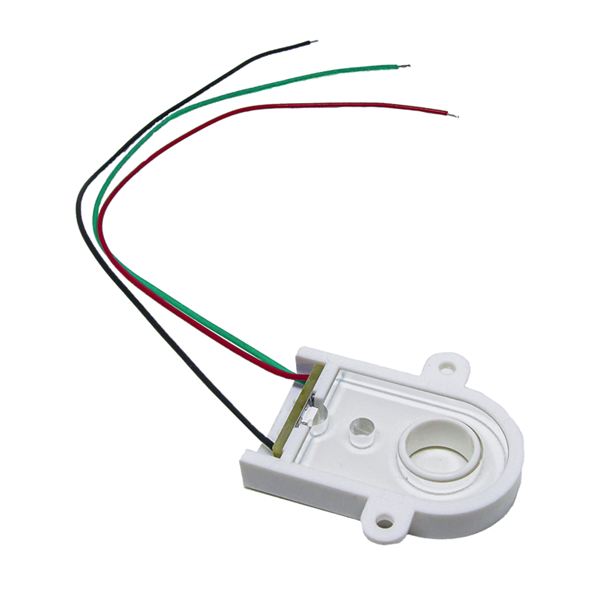

| SAC-0003-RG |
 SAC-0003-RG |
N/A | N/A 1.48 in. (37.6mm) | N/A .95 in. (24.2mm) | N/A 6.0 in. (152mm) | N/A Red 624nm/Green 572nm | N/A SMTL4-SBC |

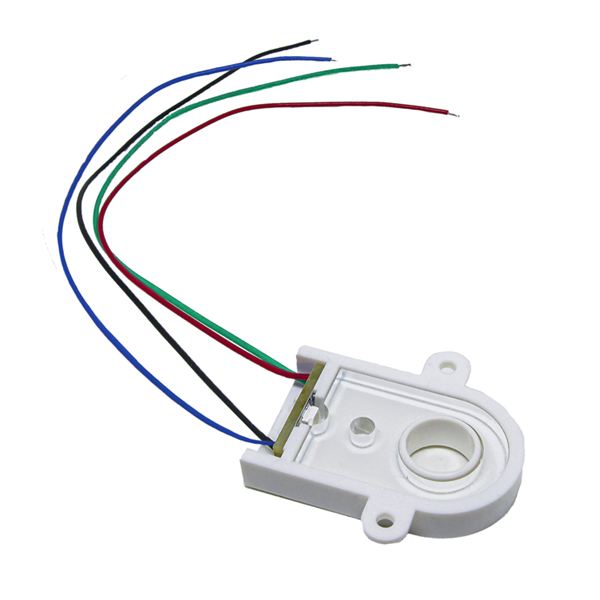

| SAC-0003-RGB |
 SAC-0003-RGB |
N/A
|
N/A 1.48 in. (37.6mm) | N/A .95 in. (24.2mm) | N/A 6.0 in. (152mm) | N/A Red 624nm/Green 520nm/Blue 470nm | N/A SMTL4-SRGB |

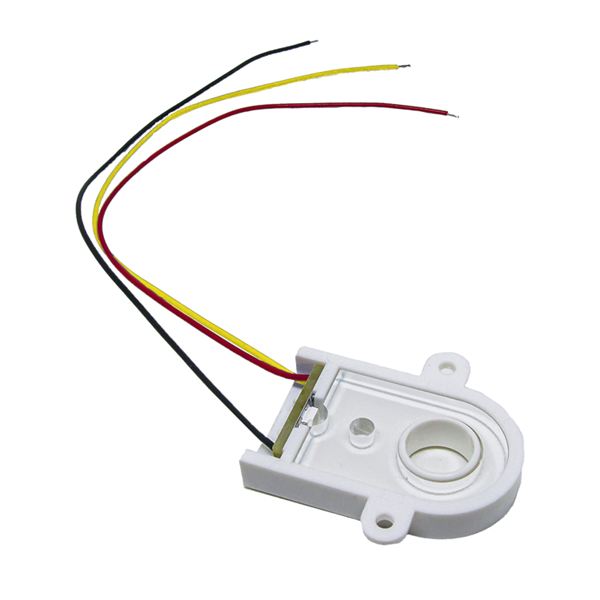

| SAC-0003-RY |
 SAC-0003-RY |
N/A | N/A 1.48 in. (37.6mm) | N/A .95 in. (24.2mm) | N/A 6.0 in. (152mm) | N/A Red 624nm/Yellow 590nm | N/A SMTL4-SBC-RY |

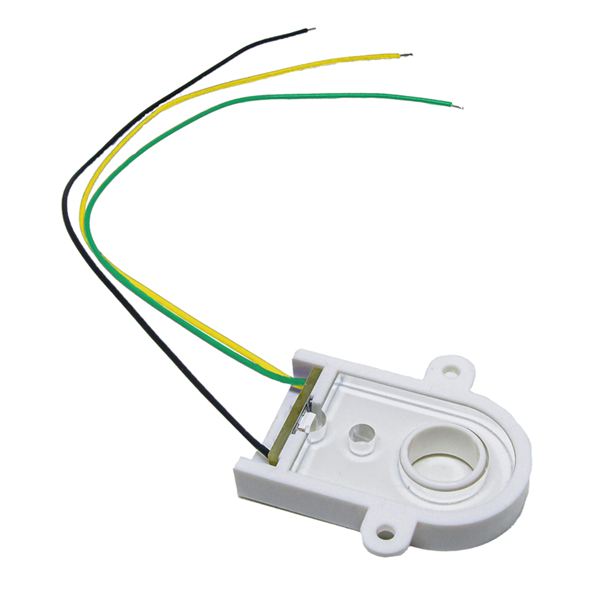

| SAC-0003-YG |
 SAC-0003-YG |
N/A | N/A 1.48 in. (37.6mm) | N/A .95 in. (24.2mm) | N/A 6.0 in. (152mm) | N/A Yellow 590nm/Green 572nm | N/A SMTL4-SBC-YG |

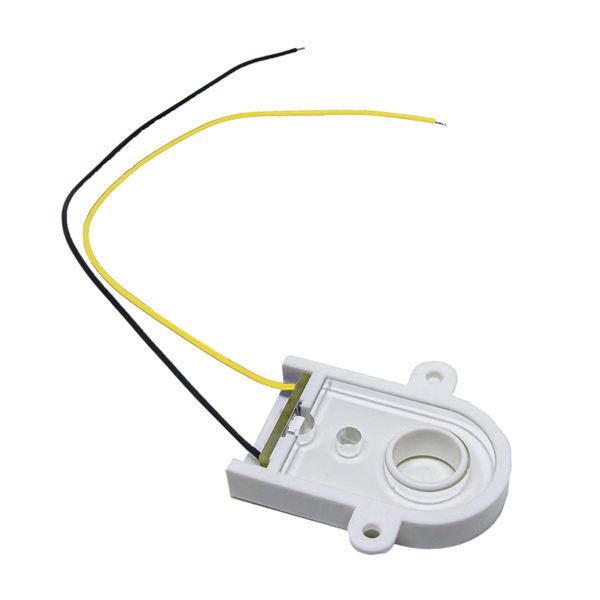

| SAC-0003-YW |
 SAC-0003-YW |
N/A | N/A 1.48 in. (37.6mm) | N/A .95 in. (24.2mm) | N/A 6.0 in. (152mm) | N/A Yellow 590nm | N/A SMTL2-UYC |

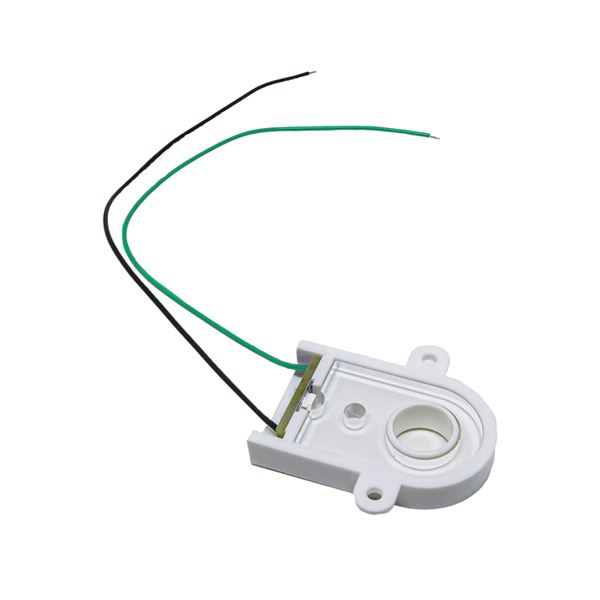

| SAC-0004-GN |
 SAC-0004-GN |
N/A | N/A 1.43 in. (36.4mm) | N/A 1.03 in. (26.1mm) | N/A 6.0 in. (152mm) | N/A Green 520nm | N/A SMTL2-UPGC |

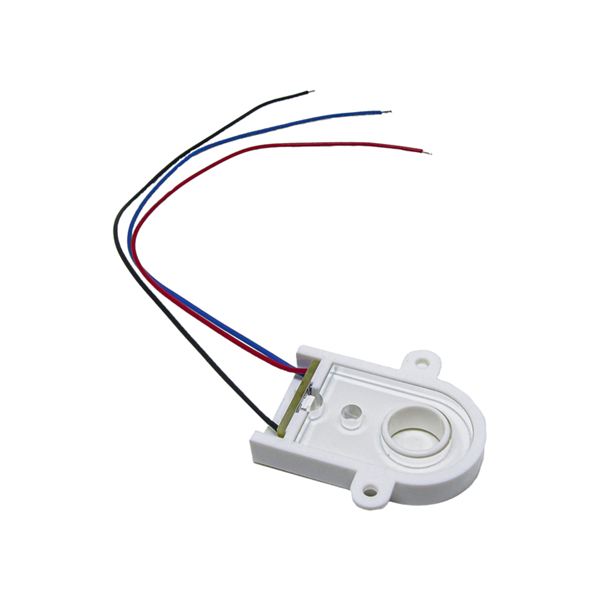

| SAC-0004-RB |
 SAC-0004-RB |
N/A | N/A 1.43 in. (36.4mm) | N/A 1.03 in. (26.1mm) | N/A 6.0 in. (152mm) | N/A Red 624nm/Blue 470nm | N/A SMTL4-SBC-RB |

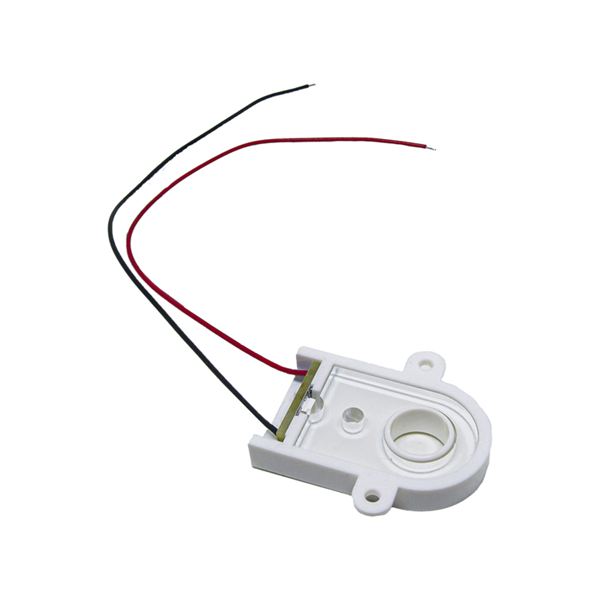

| SAC-0004-RD |
 SAC-0004-RD |
N/A | N/A 1.43 in. (36.4mm) | N/A 1.03 in. (26.1mm) | N/A 6.0 in. (152mm) | N/A Red 620nm | N/A SMTL2-URC |

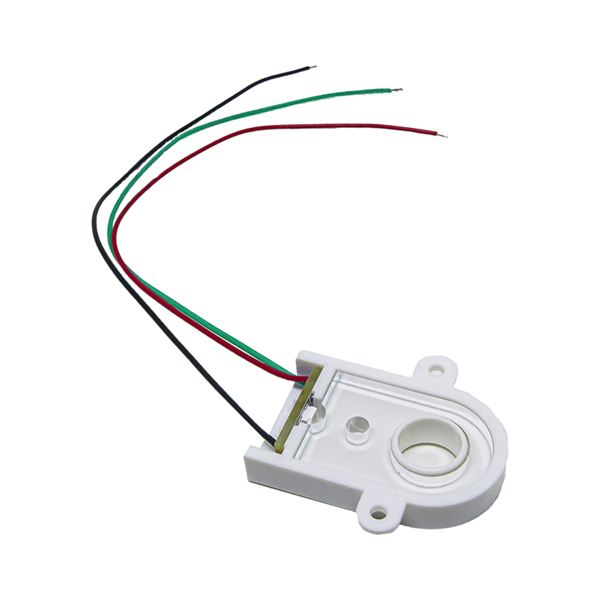

| SAC-0004-RG |
 SAC-0004-RG |
N/A | N/A 1.43 in. (36.4mm) | N/A 1.03 in. (26.1mm) | N/A 6.0 in. (152mm) | N/A Red 624nm/Green 572nm | N/A SMTL4-SBC |

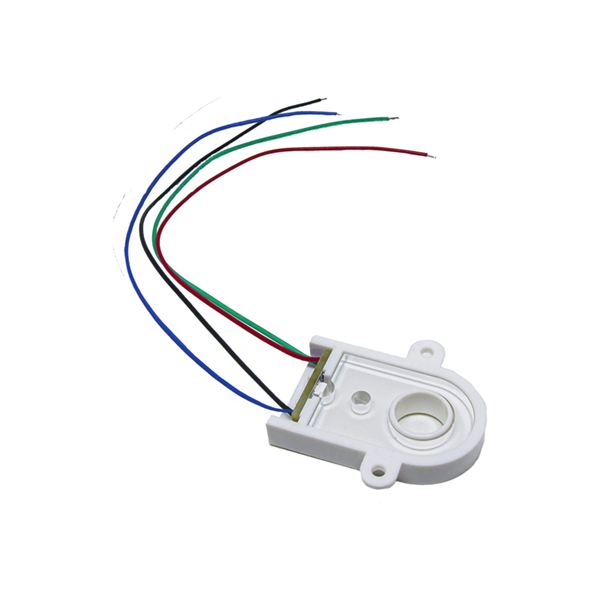

| SAC-0004-RGB |
 SAC-0004-RGB |
N/A
|
N/A 1.43 in. (36.4mm) | N/A 1.03 in. (26.1mm) | N/A 6.0 in. (152mm) | N/A Red 624nm/Green 520nm/Blue 470nm | N/A SMTL4-SRGB |

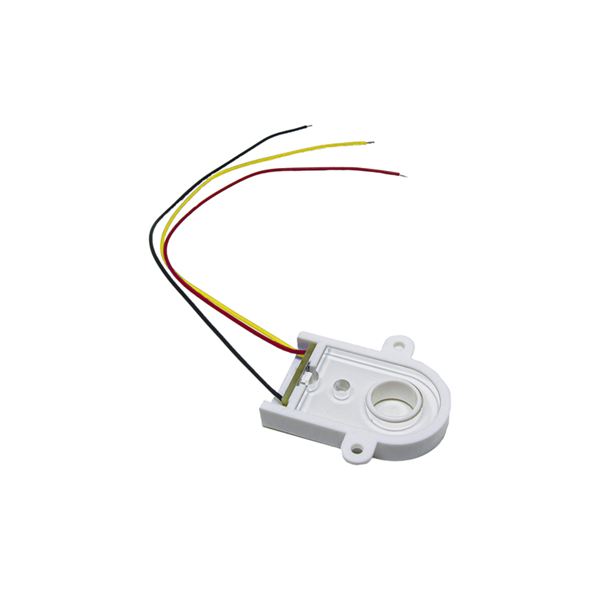

| SAC-0004-RY |
 SAC-0004-RY |
N/A | N/A 1.43 in. (36.4mm) | N/A 1.03 in. (26.1mm) | N/A 6.0 in. (152mm) | N/A Red 624nm/Yellow 590nm | N/A SMTL4-SBC-RY |

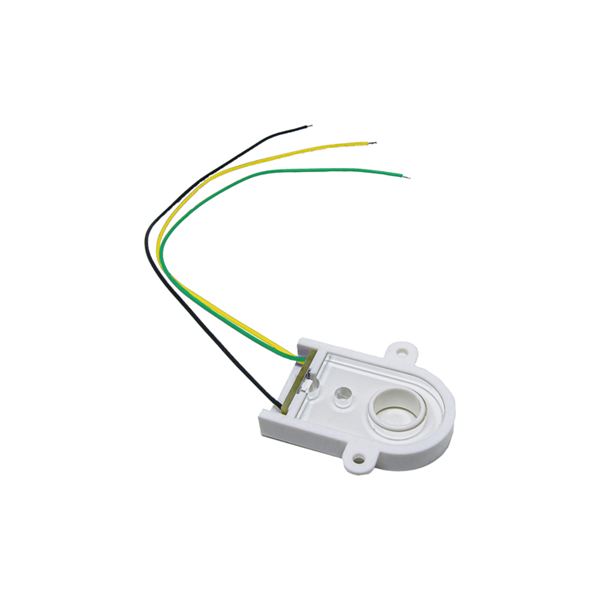

| SAC-0004-YG |
 SAC-0004-YG |
N/A | N/A 1.43 in. (36.4mm) | N/A 1.03 in. (26.1mm) | N/A 6.0 in. (152mm) | N/A Yellow 590nm/Green 572nm | N/A SMTL4-SBC-YG |

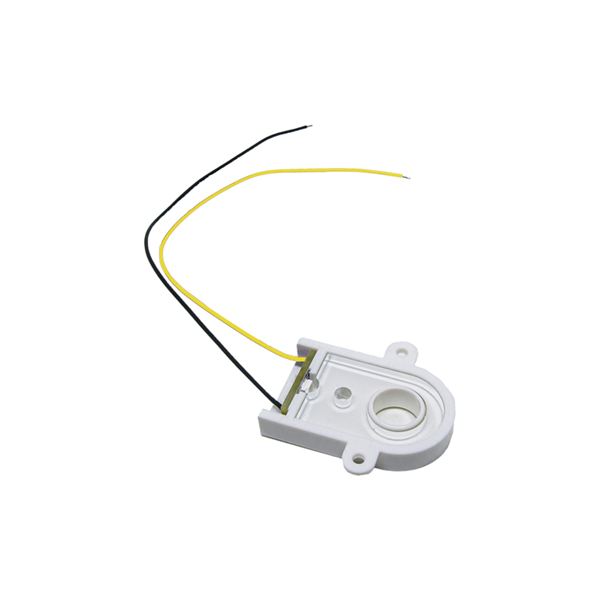

| SAC-0004-YW |
 SAC-0004-YW |
N/A | N/A 1.43 in. (36.4mm) | N/A 1.03 in. (26.1mm) | N/A 6.0 in. (152mm) | N/A Yellow 590nm | N/A SMTL2-UYC |
