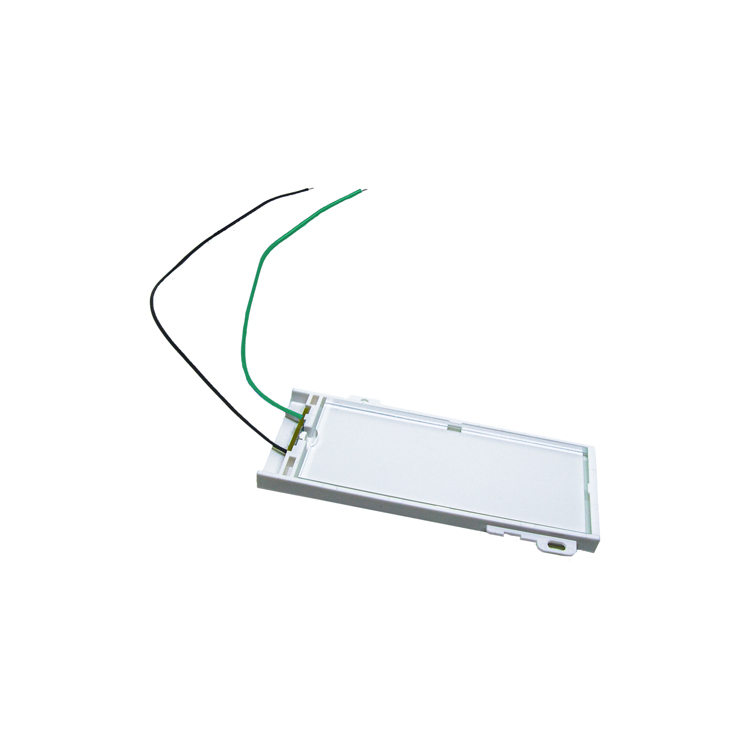

SAR
Light Guides
Rectangular shaped surface area light guides feature a high quality RGB light engine and are available in two sizes. SAR provides easy product installation with several mounting options including snap, slide-in, mounting screw, and adhesive attachment.
Item # |
Image |
3D Model |
Body Length |
Body Width |
Wire Length |
Color/Wavelength |
LED |
|---|---|---|---|---|---|---|---|
| SAR-0001-GN |

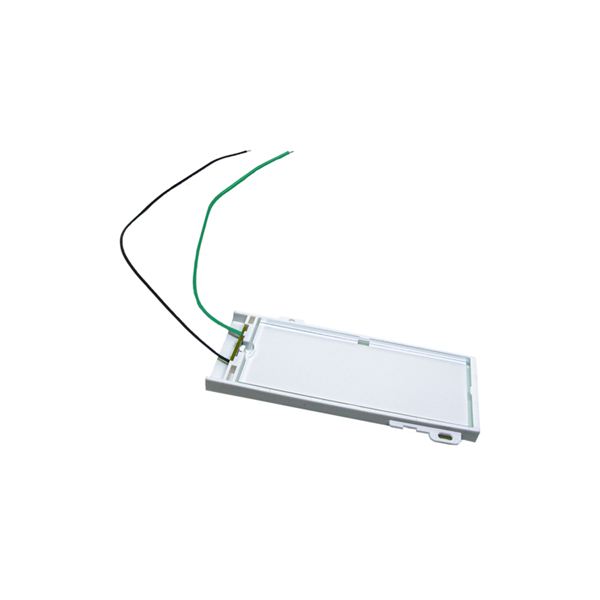

 SAR-0001-GN |
3D Model N/A | Body Length N/A 3.89 in. (98.9mm) | Body Width N/A 1.49 in. (37.7mm) | Wire Length N/A 6.0 in. (152mm) | Color/Wavelength N/A Green 520nm | LED N/A SMTL2-UPGC |
| SAR-0001-RB |

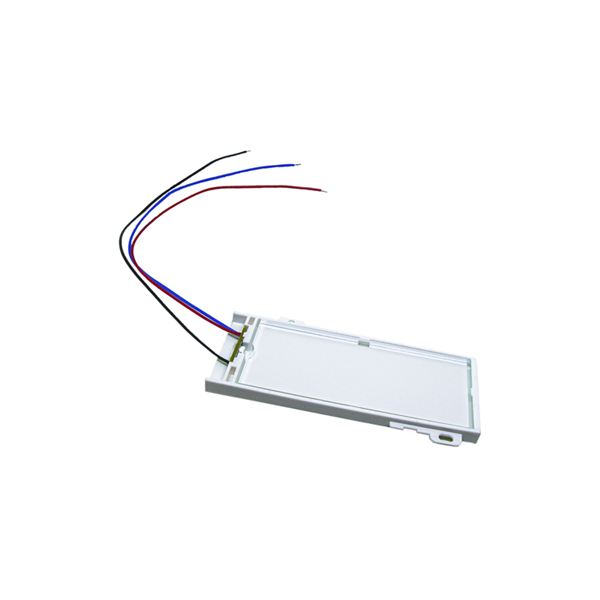

 SAR-0001-RB |
3D Model N/A | Body Length N/A 3.89 in. (98.9mm) | Body Width N/A 1.49 in. (37.7mm) | Wire Length N/A 6.0 in. (152mm) | Color/Wavelength N/A Red 624nm/Blue 470nm | LED N/A SMTL4-SBC-RB |

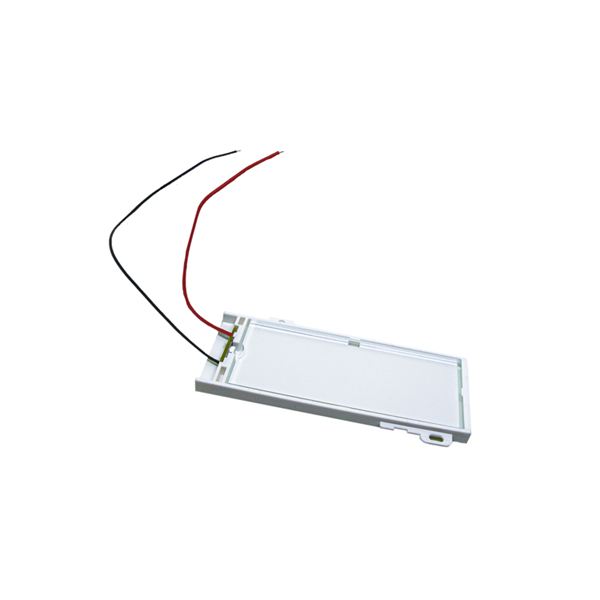

| SAR-0001-RD |
 SAR-0001-RD |
3D Model N/A | Body Length N/A 3.89 in. (98.9mm) | Body Width N/A 1.49 in. (37.7mm) | Wire Length N/A 6.0 in. (152mm) | Color/Wavelength N/A Red 620nm | LED N/A SMTL2-URC |
| SAR-0001-RG |
 SAR-0001-RG |
3D Model N/A | Body Length N/A 3.89 in. (98.9mm) | Body Width N/A 1.49 in. (37.7mm) | Wire Length N/A 6.0 in. (152mm) | Color/Wavelength N/A Red 624nm/Green 572nm | LED N/A SMTL4-SBC |
| SAR-0001-RGB |

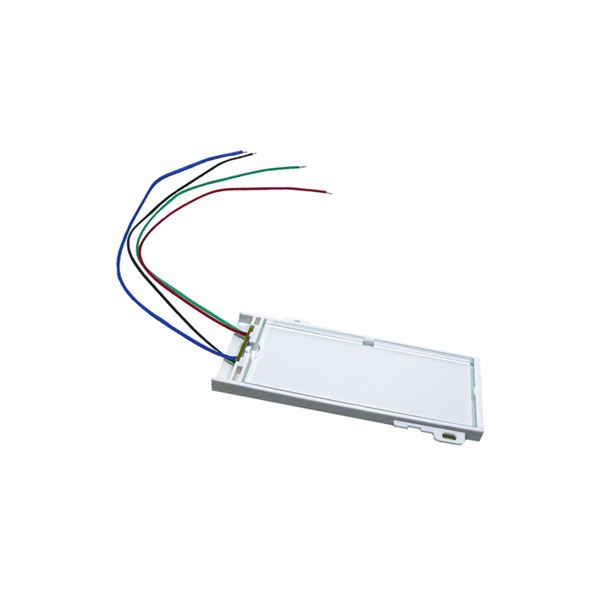

 SAR-0001-RGB |
3D Model N/A | Body Length N/A 3.89 in. (98.9mm) | Body Width N/A 1.49 in. (37.7mm) | Wire Length N/A 6.0 in. (152mm) | Color/Wavelength N/A Red 624nm/Green 520nm/Blue 470nm | LED N/A SMTL4-SRGB |

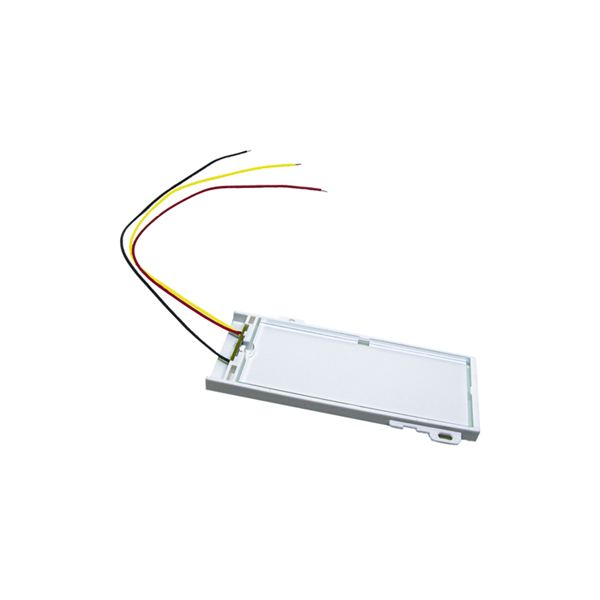

| SAR-0001-RY |
 SAR-0001-RY |
3D Model N/A | Body Length N/A 3.89 in. (98.9mm) | Body Width N/A 1.49 in. (37.7mm) | Wire Length N/A 6.0 in. (152mm) | Color/Wavelength N/A Red 624nm/Yellow 590nm | LED N/A SMTL4-SBC-RY |
| SAR-0001-YG |

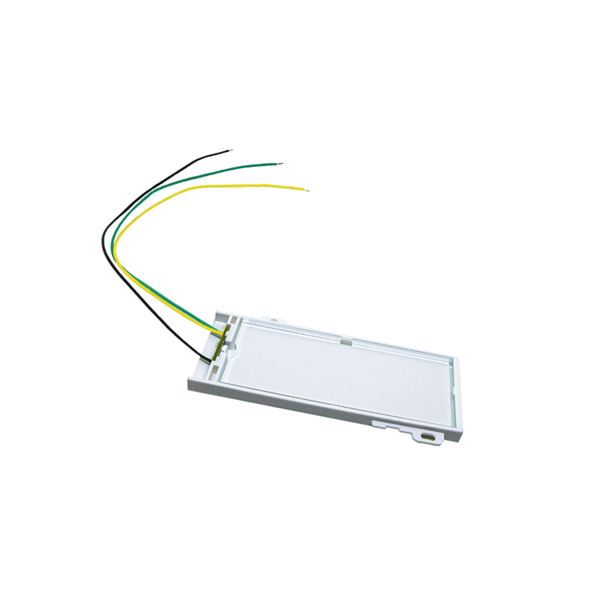

 SAR-0001-YG |
3D Model N/A | Body Length N/A 3.89 in. (98.9mm) | Body Width N/A 1.49 in. (37.7mm) | Wire Length N/A 6.0 in. (152mm) | Color/Wavelength N/A Yellow 590nm/Green 572nm | LED N/A SMTL4-SBC-YG |

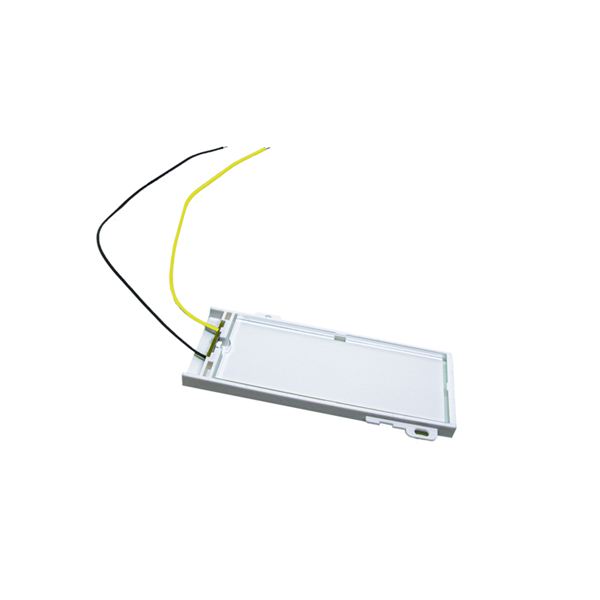

| SAR-0001-YW |
 SAR-0001-YW |
3D Model N/A | Body Length N/A 3.89 in. (98.9mm) | Body Width N/A 1.49 in. (37.7mm) | Wire Length N/A 6.0 in. (152mm) | Color/Wavelength N/A Yellow 590nm | LED N/A SMTL2-UYC |
| SAR-0002-GN |
 SAR-0002-GN |
3D Model N/A | Body Length N/A 2.13 in. (54.1mm) | Body Width N/A 1.04 in. (26.4mm) | Wire Length N/A 6.0 in. (152mm) | Color/Wavelength N/A Green 520nm | LED N/A SMTL2-UPGC |

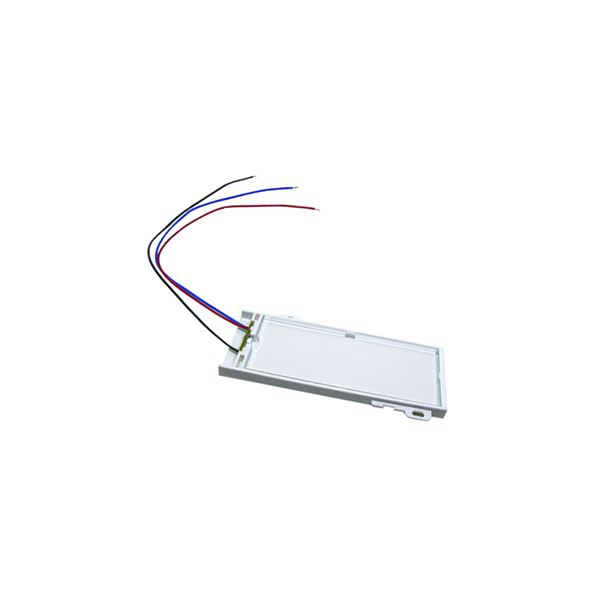

| SAR-0002-RB |
 SAR-0002-RB |
3D Model N/A | Body Length N/A 2.13 in. (54.1mm) | Body Width N/A 1.04 in. (26.4mm) | Wire Length N/A 6.0 in. (152mm) | Color/Wavelength N/A Red 624nm/Blue 470nm | LED N/A SMTL4-SBC-RB |
| SAR-0002-RD |
 SAR-0002-RD |
3D Model N/A | Body Length N/A 2.13 in. (54.1mm) | Body Width N/A 1.04 in. (26.4mm) | Wire Length N/A 6.0 in. (152mm) | Color/Wavelength N/A Red 620nm | LED N/A SMTL2-URC |
| SAR-0002-RG |

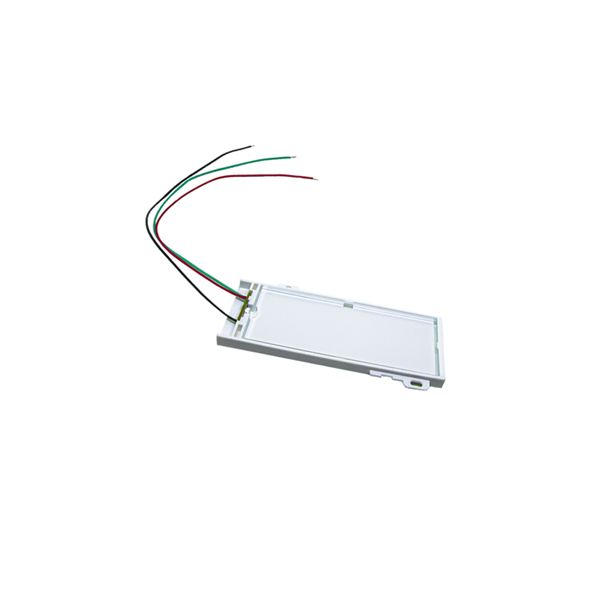

 SAR-0002-RG |
3D Model N/A | Body Length N/A 2.13 in. (54.1mm) | Body Width N/A 1.04 in. (26.4mm) | Wire Length N/A 6.0 in. (152mm) | Color/Wavelength N/A Red 624nm/Green 572nm | LED N/A SMTL4-SBC |
| SAR-0002-RGB |

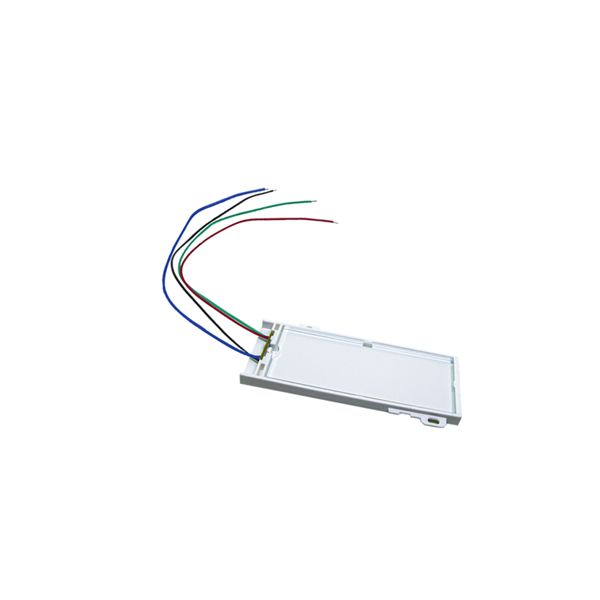

 SAR-0002-RGB |
3D Model
N/A
|
Body Length N/A 2.13 in. (54.1mm) | Body Width N/A 1.04 in. (26.4mm) | Wire Length N/A 6.0 in. (152mm) | Color/Wavelength N/A Red 624nm/Green 520nm/Blue 470nm | LED N/A SMTL4-SRGB |
| SAR-0002-RY |

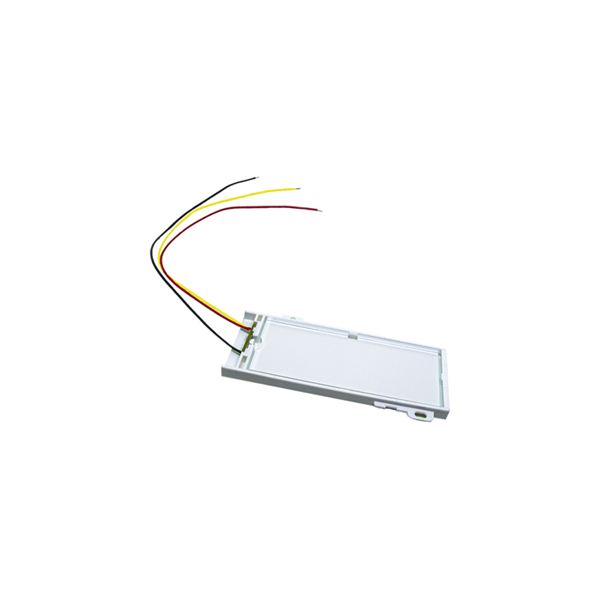

 SAR-0002-RY |
3D Model N/A | Body Length N/A 2.13 in. (54.1mm) | Body Width N/A 1.04 in. (26.4mm) | Wire Length N/A 6.0 in. (152mm) | Color/Wavelength N/A Red 624nm/Yellow 590nm | LED N/A SMTL4-SBC-RY |
| SAR-0002-YG |
 SAR-0002-YG |
3D Model N/A | Body Length N/A 2.13 in. (54.1mm) | Body Width N/A 1.04 in. (26.4mm) | Wire Length N/A 6.0 in. (152mm) | Color/Wavelength N/A Yellow 590nm/Green 572nm | LED N/A SMTL4-SBC-YG |
| SAR-0002-YW |
 SAR-0002-YW |
3D Model N/A | Body Length N/A 2.13 in. (54.1mm) | Body Width N/A 1.04 in. (26.4mm) | Wire Length N/A 6.0 in. (152mm) | Color/Wavelength N/A Yellow 590nm | LED N/A SMTL2-UYC |
