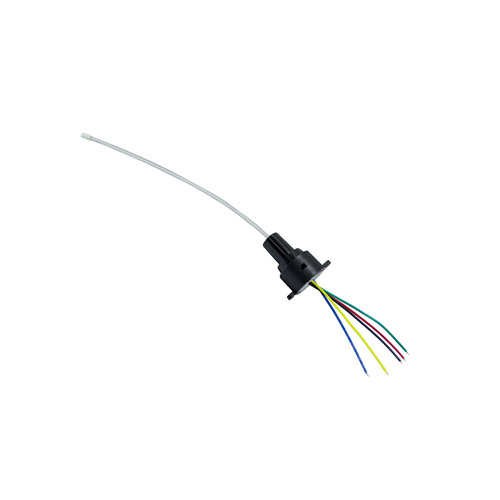

• SASG

Surface Area Side Glow Light Guides are designed for seamless integration near essential sensors and controls. They are ideal for applications that demand discreet yet effective LED edge side-lighting. Critical system status information can be relayed visually in real time, making these guides a crucial element for user interface design.

1 - 12 of 12 | Results Per Page | View | Unit of Measure
1
Request Information Compare Items
Clear Filter

Body Length

  • 13.41 in. (340.614mm)
  • 19.41 in. (493.014mm)
  • 25.41 in. (645.414mm)
  • 7.41 in. (188.214mm)

Light Pipe Diameter

  • 3mm
  • 4mm
  • 5mm

Item #


3D Model

Color/Wavelength

Voltage

Body Length

Lens Color

Light Pipe Diameter


SASG3-12-00-RGB
 		N/A CAD Icon (for items table) N/A Red 622nm; Green 525nm; Blue 465nm N/A Red 5V; Green 5V; Blue 5V N/A 13.41 in. (340.614mm) N/A Clear N/A 3mm

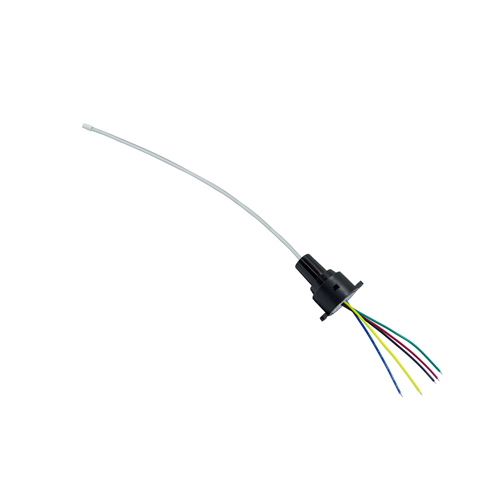

SASG3-18-00-RGB
 		N/A CAD Icon (for items table) N/A Red 622nm; Green 525nm; Blue 465nm N/A Red 5V; Green 5V; Blue 5V N/A 19.41 in. (493.014mm) N/A Clear N/A 3mm

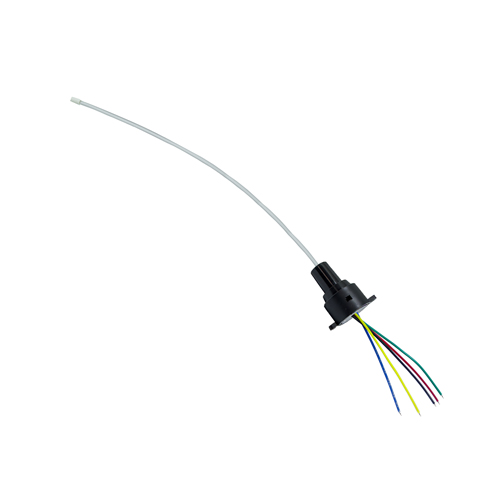

SASG3-24-00-RGB
 		N/A CAD Icon (for items table) N/A Red 622nm; Green 525nm; Blue 465nm N/A Red 5V; Green 5V; Blue 5V N/A 25.41 in. (645.414mm) N/A Clear N/A 3mm

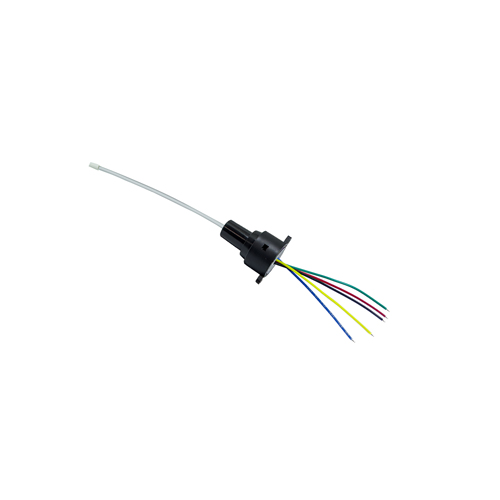

SASG3-6-00-RGB
 		N/A CAD Icon (for items table) N/A Red 622nm; Green 525nm; Blue 465nm N/A Red 5V; Green 5V; Blue 5V N/A 7.41 in. (188.214mm) N/A Clear N/A 3mm

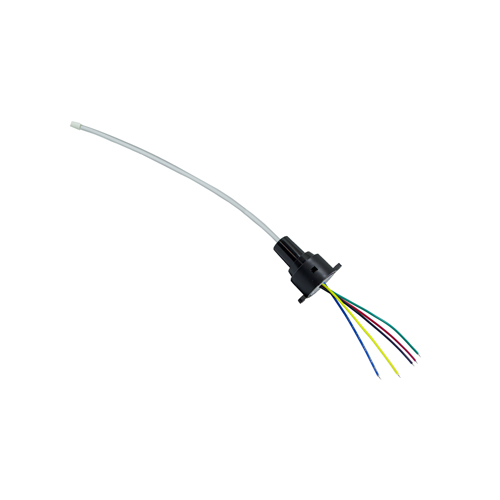

SASG4-12-00-RGB
 		N/A CAD Icon (for items table) N/A Red 622nm; Green 525nm; Blue 465nm N/A Red 5V; Green 5V; Blue 5V N/A 13.41 in. (340.614mm) N/A Clear N/A 4mm

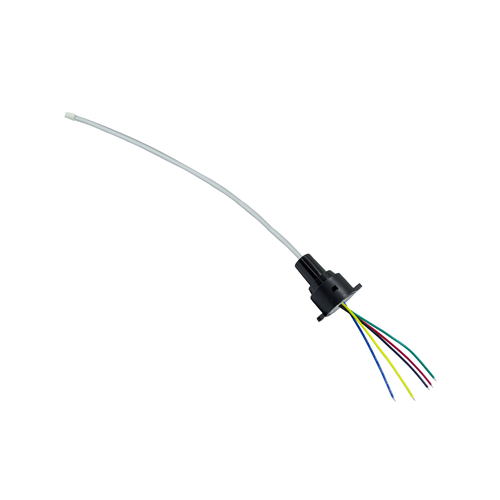

SASG4-18-00-RGB
 		N/A CAD Icon (for items table) N/A Red 622nm; Green 525nm; Blue 465nm N/A Red 5V; Green 5V; Blue 5V N/A 19.41 in. (493.014mm) N/A Clear N/A 4mm

SASG4-24-00-RGB
 		N/A CAD Icon (for items table) N/A Red 622nm; Green 525nm; Blue 465nm N/A Red 5V; Green 5V; Blue 5V N/A 25.41 in. (645.414mm) N/A Clear N/A 4mm

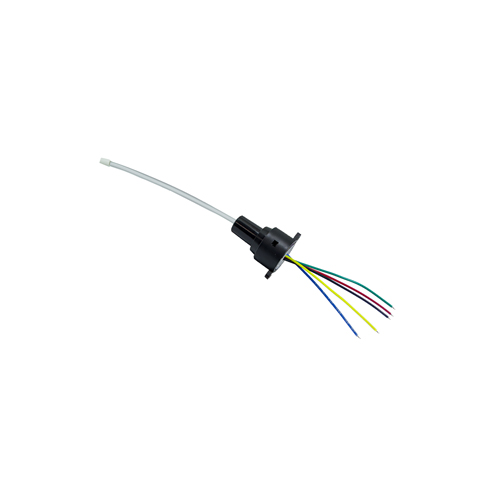

SASG4-6-00-RGB
 		N/A CAD Icon (for items table) N/A Red 622nm; Green 525nm; Blue 465nm N/A Red 5V; Green 5V; Blue 5V N/A 7.41 in. (188.214mm) N/A Clear N/A 4mm

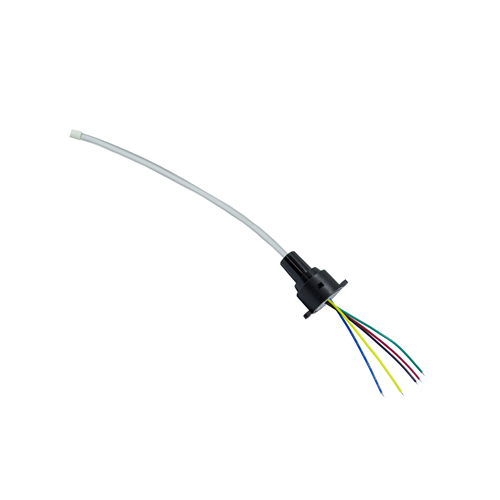

SASG5-12-00-RGB
 		N/A CAD Icon (for items table) N/A Red 622nm; Green 525nm; Blue 465nm N/A Red 5V; Green 5V; Blue 5V N/A 13.41 in. (340.614mm) N/A Clear N/A 5mm

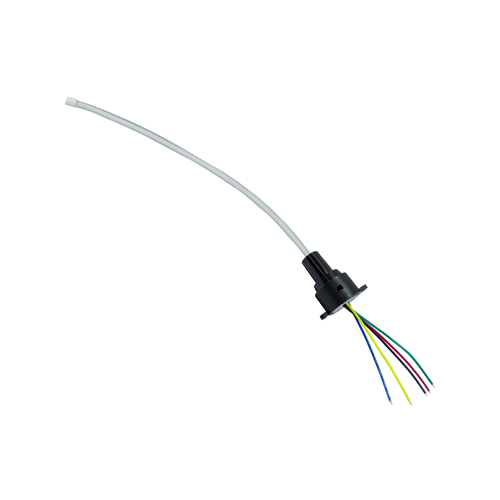

SASG5-18-00-RGB
 		N/A CAD Icon (for items table) N/A Red 622nm; Green 525nm; Blue 465nm N/A Red 5V; Green 5V; Blue 5V N/A 19.41 in. (493.014mm) N/A Clear N/A 5mm

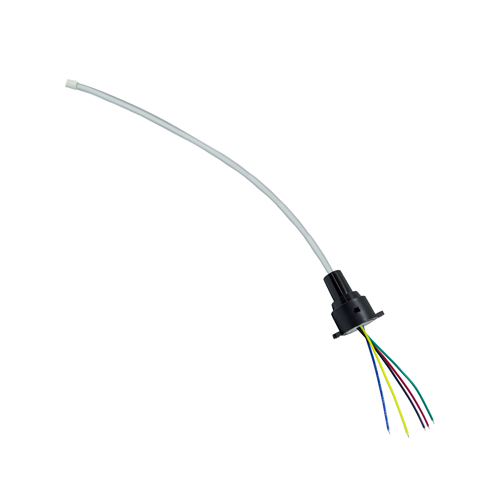

SASG5-24-00-RGB
 		N/A CAD Icon (for items table) N/A Red 622nm; Green 525nm; Blue 465nm N/A Red 5V; Green 5V; Blue 5V N/A 25.41 in. (645.414mm) N/A Clear N/A 5mm

SASG5-6-00-RGB
 		N/A CAD Icon (for items table) N/A Red 622nm; Green 525nm; Blue 465nm N/A Red 5V; Green 5V; Blue 5V N/A 7.41 in. (188.214mm) N/A Clear N/A 5mm
