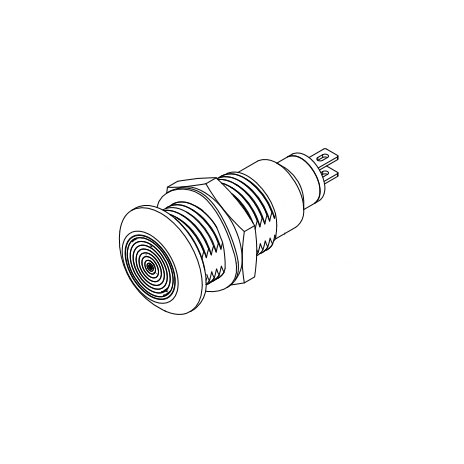

• PM3-A_PM5-A
Plastic IP67 Rated panel mount indicator with high visibility flush mount lens.
  • Available in 3mm (T-1) or 5mm (T-1 ¾) LED.
  • Voltage input 1.7V to 4.0V.
  • Wire terminals or with 24AWG stripped and tinned wire leads.
  • Mounting hardware included, packed separately.
  • Single colors, wide viewing angle, diffused lens appearance.
1 - 5 of 5 | Results Per Page | View | Unit of Measure
1
Request Information Compare Items

Item #


3D Model

Lens Profile

Housing Material

LED Color/Wavelength

Termination

Panel Cutout

Stock

PM5-A17B28V
PM5-A17XXX
 		N/A CAD Icon (for items table) N/A Low Profile Diffused Fresnel N/A Aluminum N/A Blue 465nm N/A No Wires N/A Round N/A
CHECK STOCK
PM5-A17G28V
PM5-A17XXX
 		N/A CAD Icon (for items table) N/A Low Profile Diffused Fresnel N/A Aluminum N/A Green 515nm N/A No Wires N/A Round N/A
CHECK STOCK
PM5-A17R28V
PM5-A17XXX
 		N/A CAD Icon (for items table) N/A Low Profile Diffused Fresnel N/A Aluminum N/A Red 630nm N/A No Wires N/A Round N/A
CHECK STOCK
PM5-A17W28V
PM5-A17XXX
 		N/A CAD Icon (for items table) N/A Low Profile Diffused Fresnel N/A Aluminum N/A White 6500K N/A No Wires N/A Round N/A
CHECK STOCK
PM5-A17Y28V
PM5-A17XXX
 		N/A CAD Icon (for items table) N/A Low Profile Diffused Fresnel N/A Aluminum N/A Yellow 585nm N/A No Wires N/A Round N/A
CHECK STOCK
