• PM3-P_PM5-P
Plastic IP67 Rated panel mount indicator with high visibility low profile lens.
  • Available in 3mm (T-1) or 5mm (T-1 ¾) LED.
  • Wide range voltage input 8-48 VAC/VDC.
  • Wire terminals or with 24AWG stripped and tinned wire leads.
  • Mounting hardware included, packed separately.
  • Single colors, wide viewing angle, diffused lens appearance.
1 - 31 of 31 | Results Per Page | View | Unit of Measure
1
Request Information Compare Items
Clear Filter

Lens Profile

  • Low Profile
  • Low Profile Diffused

Lens Size

  • 5.8mm IP67
  • 5.9mm
  • 8.4mm IP67

LED Color/Wavelength

  • Amber 605nm
  • Amber 610nm
  • Green 555nm
  • Green 568nm
  • Red 625nm
  • Red 645nm
  • Yellow 590nm

Termination

  • No Wires
  • Wires Stripped/Tinned

Item #


3D Model

Lens Profile

Lens Size

Housing Material

LED Color/Wavelength

Termination

Panel Cutout

Stock

PM3-PAD
PM3-PAD
 		N/A CAD Icon (for items table) N/A N/A 5.9mm N/A Plastic N/A Amber 610nm N/A No Wires N/A Round N/A
CHECK STOCK
PM3-PADW12.0
PM3-PADW12-0
 		N/A CAD Icon (for items table) N/A N/A 5.9mm N/A Plastic N/A Amber 610nm N/A Wires Stripped/Tinned N/A Round N/A
CHECK STOCK
PM3-PGD
PM3-PGD
 		N/A CAD Icon (for items table) N/A N/A 5.9mm N/A Plastic N/A Green 568nm N/A No Wires N/A Round N/A
CHECK STOCK

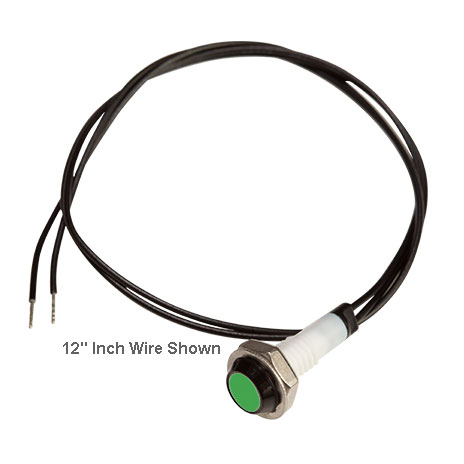

PM3-PGDW12.0
PM3-PGDW12-0
 		N/A CAD Icon (for items table) N/A N/A 5.9mm N/A Plastic N/A Green 568nm N/A Wires Stripped/Tinned N/A Round N/A
CHECK STOCK
PM3-PHD
PM3-PHD
 		N/A CAD Icon (for items table) N/A N/A 5.9mm N/A Plastic N/A Red 625nm N/A No Wires N/A Round N/A
CHECK STOCK
PM3-PHDW12.0
PM3-PHDW12-0
 		N/A CAD Icon (for items table) N/A N/A 5.9mm N/A Plastic N/A Red 625nm N/A Wires Stripped/Tinned N/A Round N/A
CHECK STOCK
PM3-PPGD
PM3-PPGD
 		N/A CAD Icon (for items table) N/A N/A 5.9mm N/A Plastic N/A Green 555nm N/A No Wires N/A Round N/A
CHECK STOCK
PM3-PPGDW12.0
PM3-PPGDW12-0
 		N/A CAD Icon (for items table) N/A N/A 5.9mm N/A Plastic N/A Green 555nm N/A Wires Stripped/Tinned N/A Round N/A
CHECK STOCK

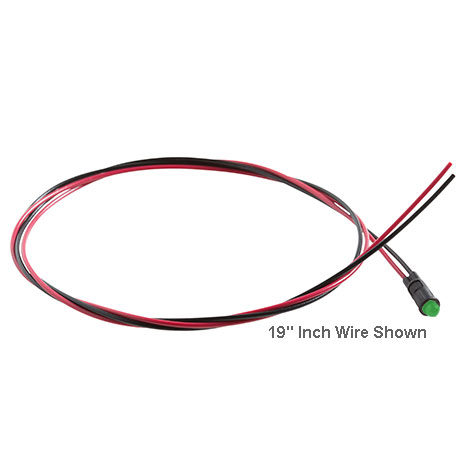

PM3-PPGDW48.0
PM3-PPGDW48-0
 		N/A CAD Icon (for items table) N/A N/A 8.4mm IP67 N/A Plastic N/A Green 555nm N/A Wires Stripped/Tinned N/A Round N/A
CHECK STOCK
PM3-PRAD
PM3-PRAD
 		N/A CAD Icon (for items table) N/A N/A 5.8mm IP67 N/A Plastic N/A Amber 610nm N/A No Wires N/A Round N/A
CHECK STOCK
PM3-PRADW12.0
PM3-PRADW12-0
 		N/A CAD Icon (for items table) N/A N/A 5.8mm IP67 N/A Plastic N/A Amber 610nm N/A Wires Stripped/Tinned N/A Round N/A
CHECK STOCK
PM3-PRD
PM3-PRD
 		N/A CAD Icon (for items table) N/A N/A 5.9mm N/A Plastic N/A Red 645nm N/A No Wires N/A Round N/A
CHECK STOCK
PM3-PRDW12.0
PM3-PRDW12-0
 		N/A CAD Icon (for items table) N/A N/A 5.9mm N/A Plastic N/A Red 645nm N/A Wires Stripped/Tinned N/A Round N/A
CHECK STOCK

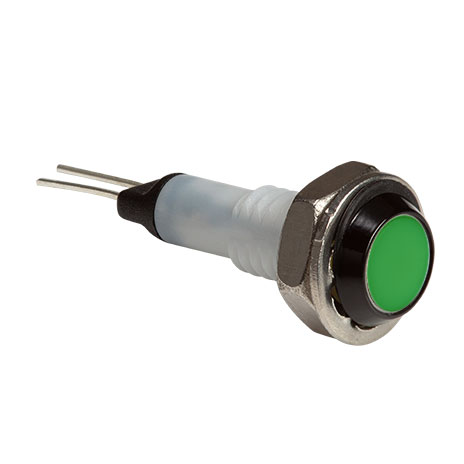

PM3-PRGD
PM3-PRGD
 		N/A CAD Icon (for items table) N/A N/A 5.8mm IP67 N/A Plastic N/A Green 568nm N/A No Wires N/A Round N/A
CHECK STOCK
PM3-PRGDW12.0
PM3-PRGDW12-0
 		N/A CAD Icon (for items table) N/A N/A 5.8mm IP67 N/A Plastic N/A Green 568nm N/A Wires Stripped/Tinned N/A Round N/A
CHECK STOCK

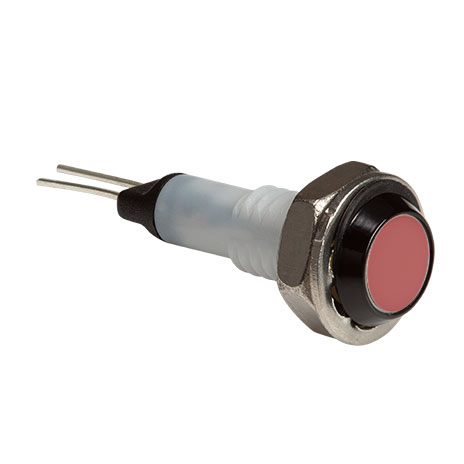

PM3-PRRD
PM3-PRRD
 		N/A CAD Icon (for items table) N/A N/A 5.8mm IP67 N/A Plastic N/A Red 645nm N/A No Wires N/A Round N/A
CHECK STOCK
PM3-PRRDW12.0
PM3-PRRDW12-0
 		N/A CAD Icon (for items table) N/A N/A 5.8mm IP67 N/A Plastic N/A Red 645nm N/A Wires Stripped/Tinned N/A Round N/A
CHECK STOCK

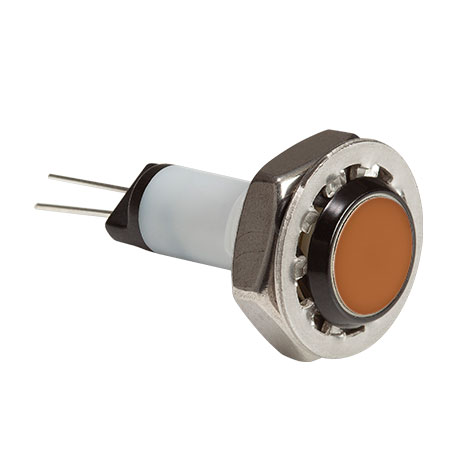

PM5-PAD
PM5-PAD
 		N/A CAD Icon (for items table) N/A Low Profile Diffused N/A N/A Plastic N/A Amber 605nm N/A No Wires N/A Round N/A
CHECK STOCK
PM5-PADW12.0
PM5-K
 		N/A CAD Icon (for items table) N/A Low Profile Diffused N/A N/A Plastic N/A Amber 605nm N/A Wires Stripped/Tinned N/A Round N/A
CHECK STOCK

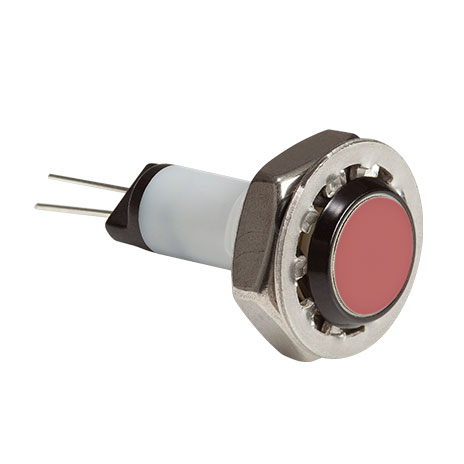

PM5-PHD
PM5-PHD
 		N/A CAD Icon (for items table) N/A Low Profile Diffused N/A N/A Plastic N/A Red 625nm N/A No Wires N/A Round N/A
CHECK STOCK
PM5-PHDW12.0
PM5-K
 		N/A CAD Icon (for items table) N/A Low Profile Diffused N/A N/A Plastic N/A Red 625nm N/A Wires Stripped/Tinned N/A Round N/A
CHECK STOCK
PM5-PRAD
PM5-PRD
 		N/A CAD Icon (for items table) N/A Low Profile N/A N/A Plastic N/A Amber 605nm N/A No Wires N/A Round N/A
CHECK STOCK
PM5-PRADW12.0
PM5-K
 		N/A CAD Icon (for items table) N/A Low Profile N/A N/A Plastic N/A Amber 605nm N/A Wires Stripped/Tinned N/A Round N/A
CHECK STOCK
PM5-PRD
PM5-PRD
 		N/A CAD Icon (for items table) N/A Low Profile Diffused N/A N/A Plastic N/A Red 645nm N/A No Wires N/A Round N/A
CHECK STOCK

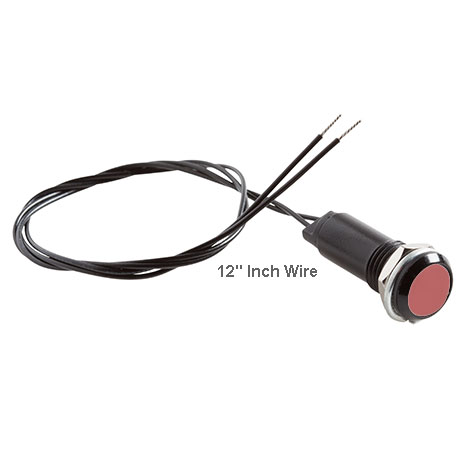

PM5-PRDW12.0
PM5-PRDW12-0
 		N/A CAD Icon (for items table) N/A Low Profile Diffused N/A N/A Plastic N/A Red 645nm N/A Wires Stripped/Tinned N/A Round N/A
CHECK STOCK
PM5-PRRD
PM5-PRRD
 		N/A CAD Icon (for items table) N/A Low Profile N/A N/A Plastic N/A Red 645nm N/A No Wires N/A Round N/A
CHECK STOCK
PM5-PRRDW12.0
PM5-PRRDW12-0
 		N/A CAD Icon (for items table) N/A Low Profile N/A N/A Plastic N/A Red 645nm N/A Wires Stripped/Tinned N/A Round N/A
CHECK STOCK
PM5-PRYD
PM5-PRYD
 		N/A CAD Icon (for items table) N/A Low Profile N/A N/A Plastic N/A Yellow 590nm N/A No Wires N/A Round N/A
CHECK STOCK
PM5-PRYDW12.0
PM5-PRYDW12-0
 		N/A CAD Icon (for items table) N/A Low Profile N/A N/A Plastic N/A Yellow 590nm N/A Wires Stripped/Tinned N/A Round N/A
CHECK STOCK
PM5-PYD
PM5-PYD
 		N/A CAD Icon (for items table) N/A Low Profile Diffused N/A N/A Plastic N/A Yellow 590nm N/A No Wires N/A Round N/A
CHECK STOCK
PM5-PYDW12.0
PM5-PYDW12-0
 		N/A CAD Icon (for items table) N/A Low Profile Diffused N/A N/A Plastic N/A Yellow 590nm N/A Wires Stripped/Tinned N/A Round N/A
CHECK STOCK
