• PM5-M124
Plastic IP67 Rated panel mount indicator with smart sensor automatic intensity adjustment.
  • Available in 5mm (T-1 ¾) LED.
  • Voltage input 12-24 VAC/VDC.
  • Wire terminals.
  • Mounting hardware included, packed separately.
  • Single colors, wide viewing angle, water clear lens appearance.
1 - 4 of 4 | Results Per Page | View | Unit of Measure
1
Request Information Compare Items

Item #


3D Model

Lens Profile

Housing Material

LED Color/Wavelength

Termination

Panel Cutout


PM5-M124-BLU
 		N/A CAD Icon (for items table) N/A Low Profile Fresnel N/A Plastic N/A Blue 465nm N/A Quick Connect Terminals N/A Round

PM5-M124-GRN
 		N/A CAD Icon (for items table) N/A Low Profile Fresnel N/A Plastic N/A Green 530nm N/A Quick Connect Terminals N/A Round

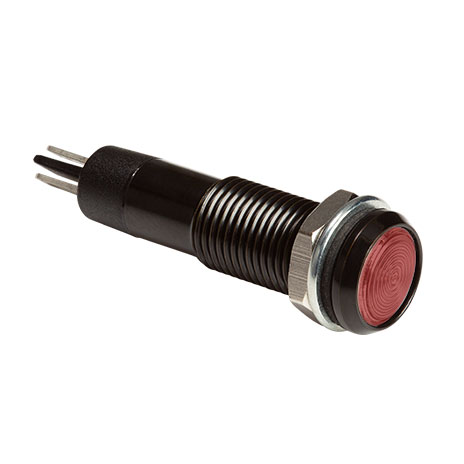

PM5-M124-RED
 		N/A CAD Icon (for items table) N/A Low Profile Fresnel N/A Plastic N/A Red 625nm N/A Quick Connect Terminals N/A Round

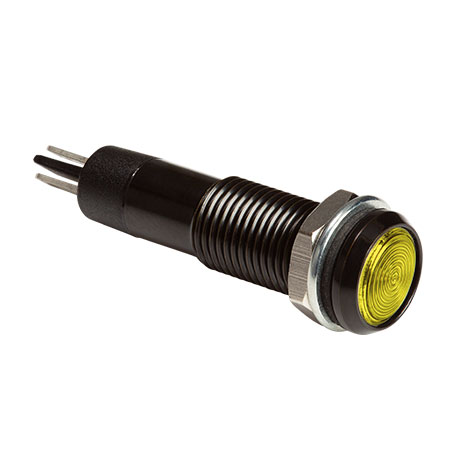

PM5-M124-YLW
 		N/A CAD Icon (for items table) N/A Low Profile Fresnel N/A Plastic N/A Yellow 590nm N/A Quick Connect Terminals N/A Round
