PM5-S
Panel Mount Plastic IP Rated
Plastic IP67 Rated panel mount indicator with high visibility low-profile lens.
- Available in 5mm (T-1 ¾) LED.
- Voltage input 12-28 VAC/VDC.
- Wire terminals.
- Mounting hardware included, packed separately.
- Single colors, wide viewing angle, diffused lens appearance.
Item # |
Image |
3D Model |
Lens Profile |
Housing Material |
LED Color/Wavelength |
Termination |
Panel Cutout |
|---|---|---|---|---|---|---|---|
| PM5-S17B28V |

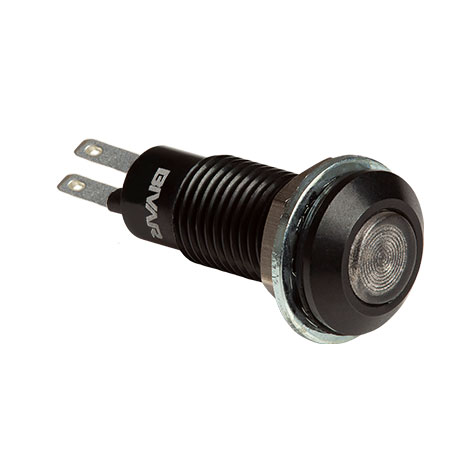

 PM5-S17B28V |
3D Model N/A | Lens Profile N/A Low Profile Diffused Fresnel | Housing Material N/A Plastic | LED Color/Wavelength N/A Blue 465nm | Termination N/A No Wires | Panel Cutout N/A Round |
| PM5-S17G28V |
 PM5-S17G28V |
3D Model N/A | Lens Profile N/A Low Profile Diffused Fresnel | Housing Material N/A Plastic | LED Color/Wavelength N/A Green 515nm | Termination N/A No Wires | Panel Cutout N/A Round |
| PM5-S17W28V |
 PM5-S17W28V |
3D Model N/A | Lens Profile N/A Low Profile Diffused Fresnel | Housing Material N/A Plastic | LED Color/Wavelength N/A White 6500K | Termination N/A No Wires | Panel Cutout N/A Round |
| PM5-S17Y28V |
 PM5-S17Y28V |
3D Model N/A | Lens Profile N/A Low Profile Diffused Fresnel | Housing Material N/A Plastic | LED Color/Wavelength N/A Yellow 585nm | Termination N/A No Wires | Panel Cutout N/A Round |
