Universal
PCB Card Guides

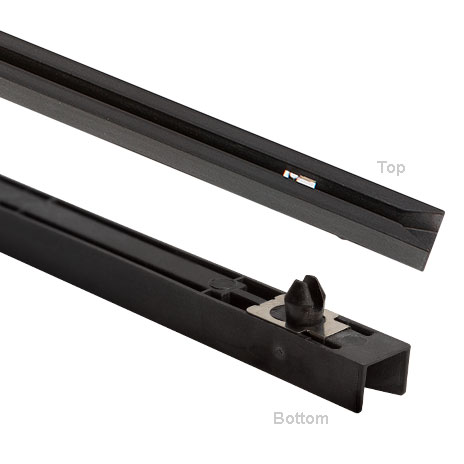

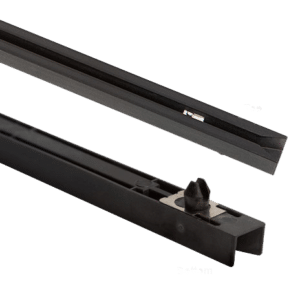

Universal nylon card guide with grounding clip.
- Integrated grounding from PCB to chassis with snap-in mounting pylons.
- Press-fit installation for panel retention.
- Recommended card thickness .062 in. to .079 in. (1.6mm to 2.0mm)
- Recommended panel thickness .047 in. to .090 in. (1.2mm to 2.3mm)
- Range of dimensional options.
Item # |
Image |
3D Model |
Material |
Mounting Type |
Color |
Length |
|---|---|---|---|---|---|---|
| UDD-1000-C |
 UDD-1100-C |
3D Model
N/A
|
Material N/A Nylon 94V-0 | Mounting Type N/A Press-In - Grounding Clip | Color N/A Black | Length N/A 10.0 in. (254.0mm) |
| UDD-1050-C |
UDD-1100-C |
3D Model
N/A
|
Material N/A Nylon 94V-0 | Mounting Type N/A Press-In - Grounding Clip | Color N/A Black | Length N/A 10.5 in. (266.7mm) |
| UDD-1100-C |
UDD-1100-C |
3D Model
N/A
|
Material N/A Nylon 94V-0 | Mounting Type N/A Press-In - Grounding Clip | Color N/A Black | Length N/A 11.0 in. (279.4mm) |
| UDD-200-C |
UDD-1100-C |
3D Model
N/A
|
Material N/A Nylon 94V-0 | Mounting Type N/A Press-In - Grounding Clip | Color N/A Black | Length N/A 2.0 in. (50.8mm) |
| UDD-250-C |
UDD-1100-C |
3D Model
N/A
|
Material N/A Nylon 94V-0 | Mounting Type N/A Press-In - Grounding Clip | Color N/A Black | Length N/A 2.50 in. (63.5mm) |
| UDD-300-C |
UDD-1100-C |
3D Model
N/A
|
Material N/A Nylon 94V-0 | Mounting Type N/A Press-In - Grounding Clip | Color N/A Black | Length N/A 3.0 in. (76.2mm) |
| UDD-350-C |
UDD-1100-C |
3D Model
N/A
|
Material N/A Nylon 94V-0 | Mounting Type N/A Press-In - Grounding Clip | Color N/A Black | Length N/A 3.5 in. (88.9mm) |
| UDD-400-C |
UDD-1100-C |
3D Model
N/A
|
Material N/A Nylon 94V-0 | Mounting Type N/A Press-In - Grounding Clip | Color N/A Black | Length N/A 4.0 in. (11.6mm) |
| UDD-450-C |
UDD-1100-C |
3D Model
N/A
|
Material N/A Nylon 94V-0 | Mounting Type N/A Press-In - Grounding Clip | Color N/A Black | Length N/A 4.5 in. (114.3mm) |
| UDD-500-C |
UDD-1100-C |
3D Model
N/A
|
Material N/A Nylon 94V-0 | Mounting Type N/A Press-In - Grounding Clip | Color N/A Black | Length N/A 5.0 in. (127.0mm) |
| UDD-550-C |
UDD-1100-C |
3D Model
N/A
|
Material N/A Nylon 94V-0 | Mounting Type N/A Press-In - Grounding Clip | Color N/A Black | Length N/A 5.50 in. (139.7mm) |
| UDD-600-C |
UDD-1100-C |
3D Model
N/A
|
Material N/A Nylon 94V-0 | Mounting Type N/A Press-In - Grounding Clip | Color N/A Black | Length N/A 6.0 in. (152.4mm) |
| UDD-650-C |
UDD-1100-C |
3D Model
N/A
|
Material N/A Nylon 94V-0 | Mounting Type N/A Press-In - Grounding Clip | Color N/A Black | Length N/A 6.5 in. (165.1mm) |
| UDD-700-C |
UDD-1100-C |
3D Model
N/A
|
Material N/A Nylon 94V-0 | Mounting Type N/A Press-In - Grounding Clip | Color N/A Black | Length N/A 7.0 in. (177.8mm) |
| UDD-750-C |
UDD-1100-C |
3D Model
N/A
|
Material N/A Nylon 94V-0 | Mounting Type N/A Press-In - Grounding Clip | Color N/A Black | Length N/A 7.5 in. (190.5mm) |
| UDD-800-C |
UDD-1100-C |
3D Model
N/A
|
Material N/A Nylon 94V-0 | Mounting Type N/A Press-In - Grounding Clip | Color N/A Black | Length N/A 8.0 in. (203.2mm) |
| UDD-850-C |
UDD-1100-C |
3D Model
N/A
|
Material N/A Nylon 94V-0 | Mounting Type N/A Press-In - Grounding Clip | Color N/A Black | Length N/A 8.5 in. (215.9mm) |
| UDD-900-C |
UDD-1100-C |
3D Model
N/A
|
Material N/A Nylon 94V-0 | Mounting Type N/A Press-In - Grounding Clip | Color N/A Black | Length N/A 9.0 in. (228.6mm) |
| UDD-950-C |
UDD-1100-C |
3D Model
N/A
|
Material N/A Nylon 94V-0 | Mounting Type N/A Press-In - Grounding Clip | Color N/A Black | Length N/A 9.5 in. (241.3mm) |
