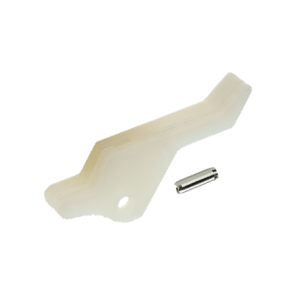

Optimal leverage solution for the circuit card insertion and extraction process.
- Upturned lever 1.55 in. (39.4mm) for PCB width .062 in. (1.6mm)
- Roll pins included, packaged separately.
- Pre-assembled with roll pins available upon request.
- Range of standard and custom colors.
Item # |
Image |
3D Model |
Material |
Color |
Lever |
PCB Width |
Stock |
|---|---|---|---|---|---|---|---|
| 1209-062 BE |
 1209-062-BE |
N/A
|
N/A Nylon | N/A Blue | N/A 1.55 in. (39.4mm) Upturned | N/A .062 in. (1.6mm) | N/A |
| 1209-062 BK |
 1209-062-BK |
N/A
|
N/A Nylon | N/A Black | N/A 1.55 in. (39.4mm) Upturned | N/A .062 in. (1.6mm) | N/A |
| 1209-062 BN |
 1209-062 |
N/A
|
N/A Nylon | N/A Brown | N/A 1.55 in. (39.4mm) Upturned | N/A .062 in. (1.6mm) | N/A |
| 1209-062 GN |
 1209-062-GN |
N/A
|
N/A Nylon | N/A Green | N/A 1.55 in. (39.4mm) Upturned | N/A .062 in. (1.6mm) | N/A |
| 1209-062 NT |
 1209-062-1 |
N/A
|
N/A Nylon | N/A Natural | N/A 1.55 in. (39.4mm) Upturned | N/A .062 in. (1.6mm) | N/A |
| 1209-062 RD |
 1209-062-RD |
N/A
|
N/A Nylon | N/A Red | N/A 1.55 in. (39.4mm) Upturned | N/A .062 in. (1.6mm) | N/A |
| 1209-062 VT |
 1209-062-VT |
N/A
|
N/A Nylon | N/A Violet | N/A 1.55 in. (39.4mm) Upturned | N/A .062 in. (1.6mm) | N/A |
| 1209-062 WE |
1209-062 |
N/A
|
N/A Nylon | N/A White | N/A 1.55 in. (39.4mm) Upturned | N/A .062 in. (1.6mm) | N/A |
| 1209-062 YW |
 1209-062-YW |
N/A
|
N/A Nylon | N/A Yellow | N/A 1.55 in. (39.4mm) Upturned | N/A .062 in. (1.6mm) | N/A |
