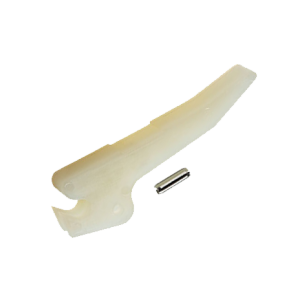

• upturned-lever
Optimal leverage solution for the circuit card insertion and extraction process.
  • Upturned lever 1.937 in. (49.2mm)
  • Use with 1/16 in. and 3/32 in. card thickness.
  • Roll pins included, packaged separately.
  • Pre-assembled with roll pins available upon request.
  • Range of standard and custom colors.
1 - 9 of 9 | Results Per Page | View | Unit of Measure
1
Request Information Compare Items

Item #


3D Model

Material

Color

Lever

PCB Width


1002-09320AA
 		N/A CAD Icon (for items table) N/A Nylon N/A Aqua N/A 1.937 in. (49.2mm) Upturned N/A .062 in. (1.6mm)

1002-09320BE
 		N/A CAD Icon (for items table) N/A Nylon N/A Blue N/A 1.937 in. (49.2mm) Upturned N/A .062 in. (1.6mm)

1002-093
 		N/A CAD Icon (for items table) N/A Nylon N/A Black N/A 1.937 in. (49.2mm) Upturned N/A .062 in. (1.6mm)

1002-09320GN
 		N/A CAD Icon (for items table) N/A Nylon N/A Green N/A 1.937 in. (49.2mm) Upturned N/A .062 in. (1.6mm)

1002-093
 		N/A CAD Icon (for items table) N/A Nylon N/A Natural N/A 1.937 in. (49.2mm) Upturned N/A .062 in. (1.6mm)

1002-09320VT
 		N/A CAD Icon (for items table) N/A Nylon N/A Violet N/A 1.937 in. (49.2mm) Upturned N/A .062 in. (1.6mm)

1002-09320YW
 		N/A CAD Icon (for items table) N/A Nylon N/A Yellow N/A 1.937 in. (49.2mm) Upturned N/A .062 in. (1.6mm)

1002-093
 		N/A CAD Icon (for items table) N/A Nylon N/A Black N/A 1.937 in. (49.2mm) Upturned N/A .093 in. (2.4mm)

1002-093
 		N/A CAD Icon (for items table) N/A Nylon N/A Natural N/A 1.937 in. (49.2mm) Upturned N/A .093 in. (2.4mm)
