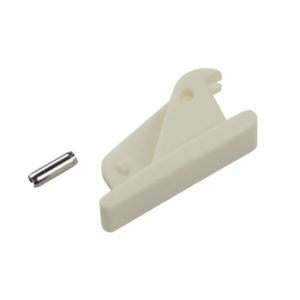

• upturned-with-stop-or-straight-lever
Optimal leverage solution for the circuit card insertion and extraction process.
  • Upturned or straight lever shape.
  • Use with 1/16 in. card thickness.
  • Roll pins included, packaged separately.
  • Pre-assembled with roll pins available upon request.
  • Range of standard and custom colors.
1 - 5 of 5 | Results Per Page | View | Unit of Measure
1
Request Information Compare Items

Item #


3D Model

Material

Color

Lever

PCB Width


LP-110720BK
 		N/A CAD Icon (for items table) N/A Nylon N/A Black N/A 2.0 in. (50.8mm) Upturned with Stop N/A .062 in. (1.6mm)

LP-1107
 		N/A CAD Icon (for items table) N/A Nylon N/A Natural N/A 2.0 in. (50.8mm) Upturned with Stop N/A .062 in. (1.6mm)

LP-3620BK
 		N/A CAD Icon (for items table) N/A Nylon N/A Black N/A 1.13 in. (28.6mm) Straight N/A .062 in. (1.6mm)

LP-3620NT
 		N/A CAD Icon (for items table) N/A Nylon N/A Natural N/A 1.13 in. (28.6mm) Straight N/A .062 in. (1.6mm)

LP-3620WE
 		N/A CAD Icon (for items table) N/A Nylon N/A White N/A 1.13 in. (28.6mm) Straight N/A .062 in. (1.6mm)
