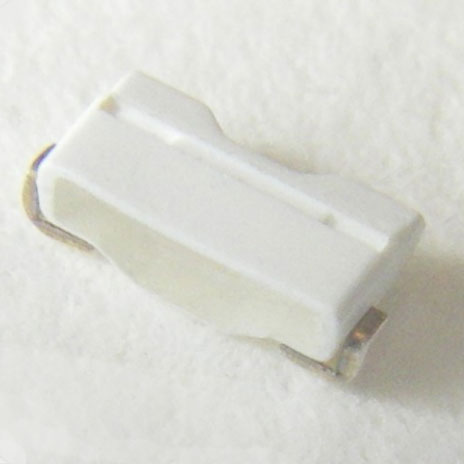

• SMS1105
PLCC2 SMD LED Side View Low Profile Package.
  • Reinforced package for use with Bivar Light Pipes in harsh environment applications.
  • Available in a wide variety of color and luminous intensities.
  • Low power, long life reliability.
  • AvailableWide viewing angle 120°.
  • Supplied in tape and reel.
1 - 9 of 9 | Results Per Page | View | Unit of Measure
1
Request Information Compare Items

Item #


3D Model

Voltage Rating

Lens Profile

Color/Wavelength

Current

Viewing Angle


SMS1105BWC
 		N/A CAD Icon (for items table) N/A 3.1 V N/A Flat Water Clear N/A Blue 465nm N/A 20 mA N/A 120°

SMS1105BWC
 		N/A CAD Icon (for items table) N/A 2.2 V N/A Flat Water Clear N/A Green 566nm N/A 20 mA N/A 120°

SMS1105BWC
 		N/A CAD Icon (for items table) N/A 2.2 V N/A Flat Water Clear N/A Orange 600nm N/A 20 mA N/A 120°

SMS1105BWC
 		N/A CAD Icon (for items table) N/A 3.3 V N/A Flat Water Clear N/A Green 520nm N/A 20 mA N/A 120°

SMS1105BWC
 		N/A CAD Icon (for items table) N/A 2.2 V N/A Flat Water Clear N/A Red 620nm N/A 20 mA N/A 120°

SMS1105BWC
 		N/A CAD Icon (for items table) N/A 3.1 V N/A Flat Diffused N/A White 6500K N/A 20 mA N/A 120°

SMS1105BWC
 		N/A CAD Icon (for items table) N/A 3.2 V N/A Flat Diffused N/A White 6000K N/A 20 mA N/A 120°

SMS1105BWC
 		N/A CAD Icon (for items table) N/A 3.2 V N/A Flat Diffused N/A White 5700K N/A 20 mA N/A 120°

SMS1105BWC
 		N/A CAD Icon (for items table) N/A 2.2 V N/A Flat Water Clear N/A Yellow 587nm N/A 20 mA N/A 120°
