• SMTL3020

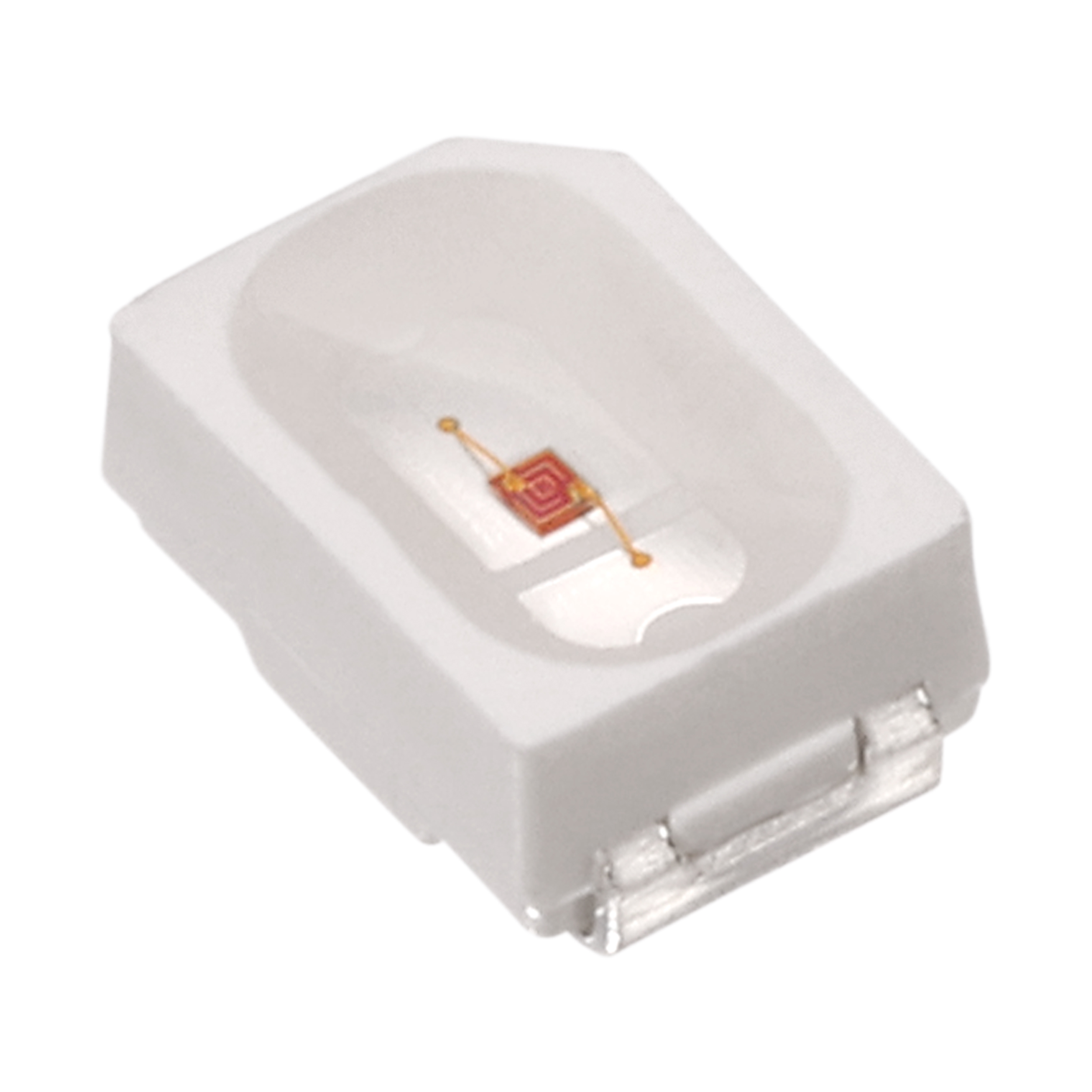

Industry standard miniature SMTL3020 PLCC package.
  • Ideal for harsh working environments
  • Use with Bivar Press Fit or Board Mounted Light Pipes.
  • Available in a variety of colors with high luminous intensity.
  • Strong thermal performance and long life reliability.
  • AvailableWide viewing angle 120°.
  • Supplied in tape and reel.
1 - 5 of 5 | Results Per Page | View | Unit of Measure
1
Request Information Compare Items

Item #

3D Model

Voltage

Color/Wavelength

Lens Color

LED Size

Luminous Intensity

Package/Case Size

Current

Stock

SMTL3020BWC N/A CAD Icon (for items table) N/A 3.2V N/A Blue 470nm N/A Water Clear N/A 2.70mm x 2.00mm N/A 300mcd N/A 3020 N/A 20 mA N/A
CHECK STOCK
SMTL3020GC N/A CAD Icon (for items table) N/A 3.2V N/A Green 528nm N/A Water Clear N/A 2.70mm x 2.00mm N/A 1050mcd N/A 3020 N/A 20 mA N/A
CHECK STOCK
SMTL3020RC N/A CAD Icon (for items table) N/A 2.2V N/A Red 623nm N/A Water Clear N/A 2.70mm x 2.00mm N/A 750mcd N/A 3020 N/A 20 mA N/A
CHECK STOCK
SMTL3020UWD N/A CAD Icon (for items table) N/A 3.2V N/A White 6000K N/A Diffused N/A 2.70mm x 2.00mm N/A 2500mcd N/A 3020 N/A 20 mA N/A
CHECK STOCK
SMTL3020YC N/A CAD Icon (for items table) N/A 2.1V N/A Yellow 590nm N/A Water Clear N/A 2.70mm x 2.00mm N/A 975mcd N/A 3020 N/A 20 mA N/A
CHECK STOCK
