• SMTL3528
Industry standard miniature SMTL3528 PLCC package.
  • Ideal for harsh working environments
  • Use with Bivar Press Fit or Board Mounted Light Pipes.
  • Available in a variety of colors with high luminous intensity.
  • Strong thermal performance and long life reliability.
  • AvailableWide viewing angle 120°.
  • Supplied in tape and reel.
1 - 4 of 4 | Results Per Page | View | Unit of Measure
1
Request Information Compare Items

Item #


3D Model

Voltage

LED Size

Color/Wavelength

Lens Color

Luminous Intensity

Current

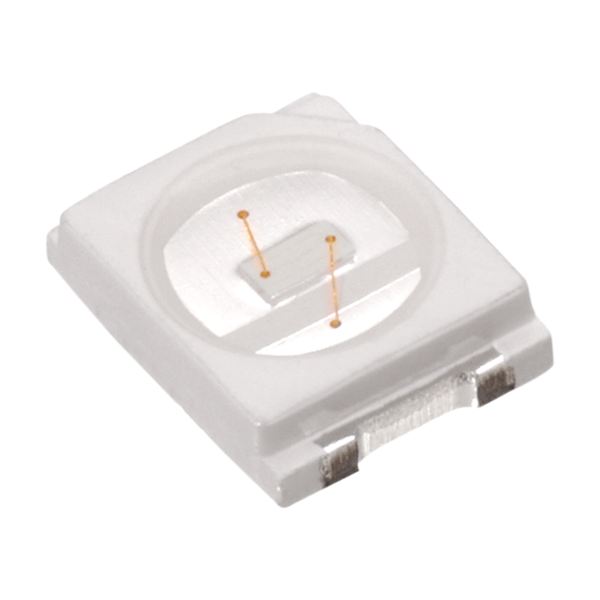

SMTL3528BWC
 		N/A CAD Icon (for items table) N/A 3.1V N/A 3.10mm x 2.80mm N/A Blue 451nm N/A Water Clear N/A 850mcd N/A 60mA

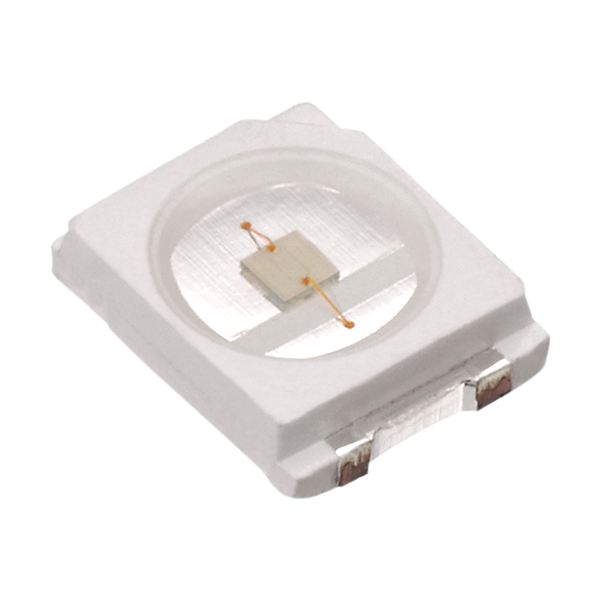

SMTL3528GC
 		N/A CAD Icon (for items table) N/A 3.0V N/A 3.10mm x 2.80mm N/A Green 525nm N/A Water Clear N/A 6000mcd N/A 60mA

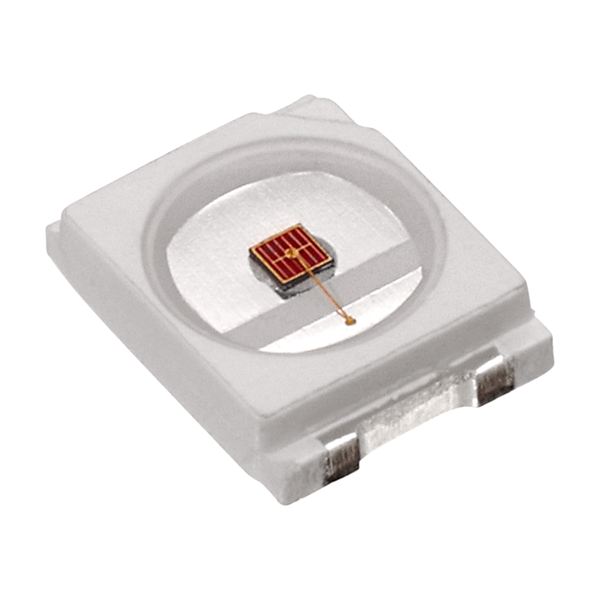

SMTL3528RC
 		N/A CAD Icon (for items table) N/A 2.2V N/A 3.10mm x 2.80mm N/A Red 624nm N/A Water Clear N/A 2950mcd N/A 60mA

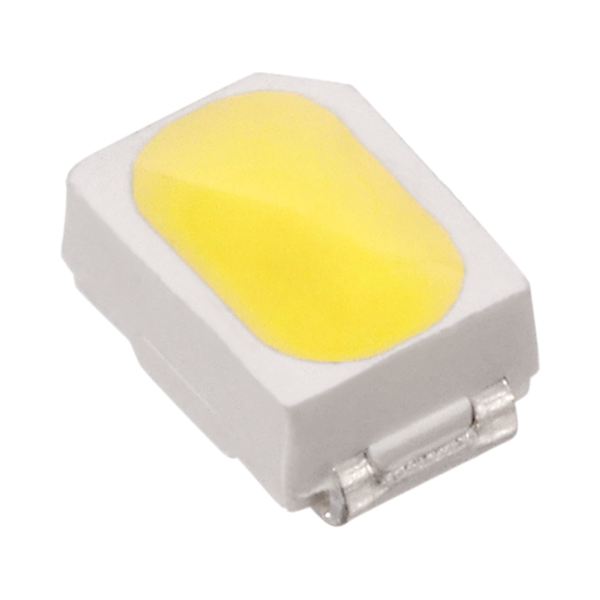

SMTL3528UWD
 		N/A CAD Icon (for items table) N/A 3.2V N/A 3.10mm x 2.80mm N/A White 5650K-6000K N/A Water Clear N/A 9500mcd N/A 60mA
