• SMTL6

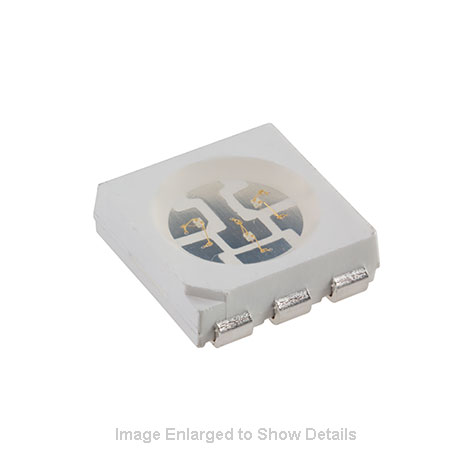

PLCC6 SMD LED Top View Low Profile Package.
  • Flexible 3 chip design, Chips can be driven individually or in combinations.
  • Reinforced package for use with Bivar Light Pipes in harsh environment applications.
  • Available in a wide variety of color and luminous intensities.
  • Low power, long life reliability.
  • AvailableWide viewing angle 120°.
  • Supplied in tape and reel.
1 - 7 of 7 | Results Per Page | View | Unit of Measure
1
Request Information Compare Items

Item #


3D Model

Voltage Rating

Color/Wavelength

Luminous Intensity

Package/Case Size

Current


LEDs-SMD-PLCC6-SMTL6
 		N/A CAD Icon (for items table) N/A 3.1 V N/A Blue 465nm N/A N/A PLCC6 N/A 60 mA

LEDs-SMD-PLCC6-SMTL6
 		N/A CAD Icon (for items table) N/A 3.3 V N/A Green 520nm N/A N/A PLCC6 N/A 60 mA

LEDs-SMD-PLCC6-SMTL6
 		N/A CAD Icon (for items table) N/A 2.2 V N/A Red 620nm N/A N/A PLCC6 N/A 60 mA

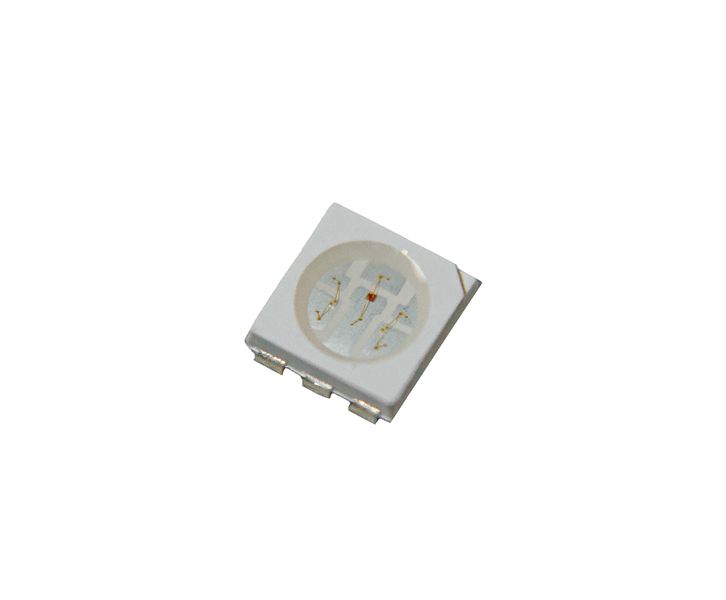

SMTL6-RGB-1
 		N/A CAD Icon (for items table) N/A Red 2.2V/Green 3.0V/Blue 3.0V N/A Red 618nm/Green 520nm/Blue 465nm N/A Red 900mcd/Green 1500mcd/Blue 300mcd N/A PLCC6 N/A 20 mA

LEDs-SMD-PLCC6-SMTL6
 		N/A CAD Icon (for items table) N/A 3.2 V N/A White 8000K N/A N/A PLCC6 N/A 60 mA

LEDs-SMD-PLCC6-SMTL6
 		N/A CAD Icon (for items table) N/A 3.3 V N/A White 5500K N/A N/A PLCC6 N/A 60 mA

LEDs-SMD-PLCC6-SMTL6
 		N/A CAD Icon (for items table) N/A 3.2 V N/A White 2840K N/A N/A PLCC6 N/A 60 mA
