• SMTLA5018

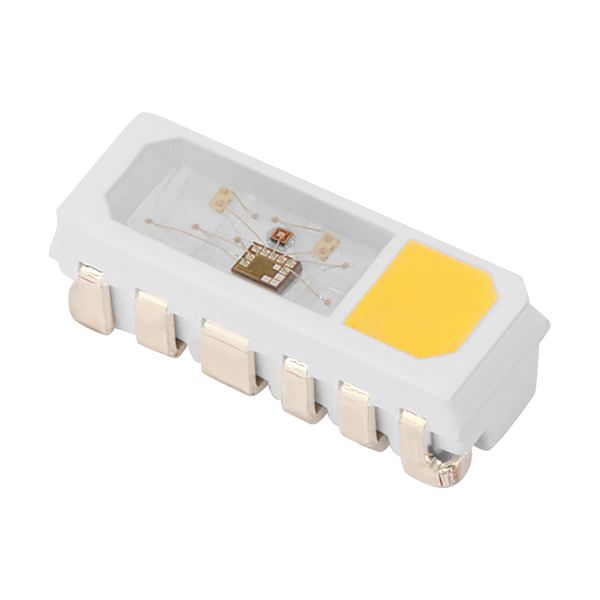

Industry standard RGB(W) addressable SMTLA5018 PLCC package.
  • Ideal for harsh working environments
  • Use with Bivar Press Fit or Board Mounted Light Pipes.
  • Integrated IC for full-color control
  • Strong thermal performance and long life reliability.
  • AvailableWide viewing angle 120°.
  • Supplied in tape and reel.
1 - 1 of 0 | Results Per Page | View | Unit of Measure
1
Request Information

Item #


3D Model

Voltage

LED Size

Color/Wavelength

Lens Color

Package/Case Size

Luminous Intensity


SMTLA5018
 		N/A CAD Icon (for items table) N/A 5V N/A 5.00mm x 1.80mm N/A Red 623nm/Green 523nm/Blue 468nm/White 4550K N/A Water Clear N/A 5018 N/A Red 250mcd/Green 700mcd/Blue 250mcd/White 5lm
