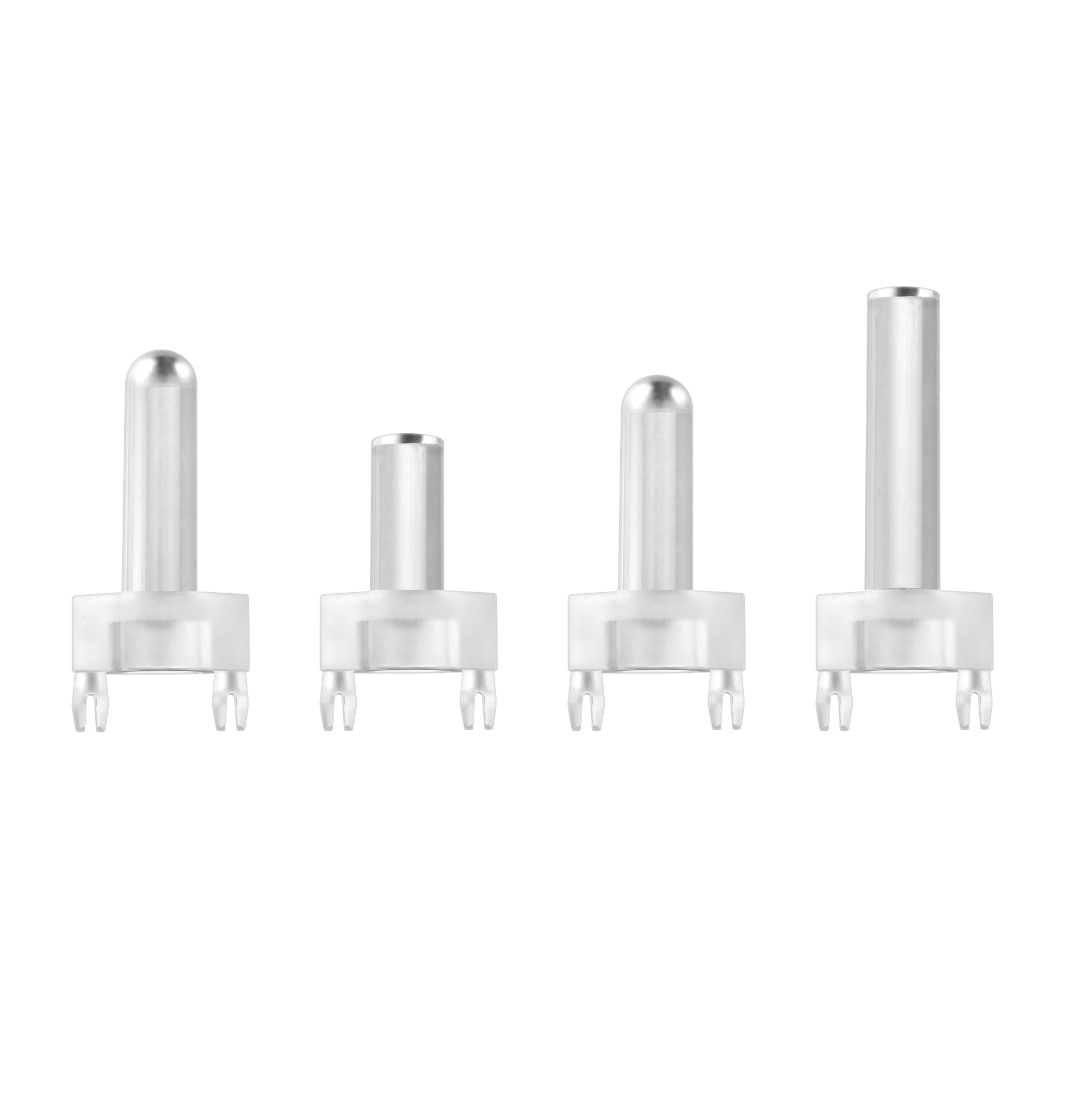

GVLP
Rigid Board Mount
The GVLP Series expands Bivar’s vertical light pipe portfolio with integrated press-fit PCB mounting, eliminating the need for adhesive or heat staking.
Built on the established VLP platform, GVLP maintains a familiar design approach while improving assembly efficiency at a comparable cost.
Built on the established VLP platform, GVLP maintains a familiar design approach while improving assembly efficiency at a comparable cost.
Item # |
Image |
3D Model |
Lens Profile |
Lens Size |
Lens Color |
Panel Cutout |
Body Height |
|---|---|---|---|---|---|---|---|
| GVLP-200-F |
 GVLP-200-F |
3D Model
N/A
|
Lens Profile N/A Flat | Lens Size N/A 3.3mm | Lens Color N/A Clear | Panel Cutout N/A Round | Body Height N/A 0.200 in. (5.1mm) |
| GVLP-250-F |
 GVLP-250-F |
3D Model
N/A
|
Lens Profile N/A Flat | Lens Size N/A 3.3mm | Lens Color N/A Clear | Panel Cutout N/A Round | Body Height N/A 0.250 in. (6.4mm) |

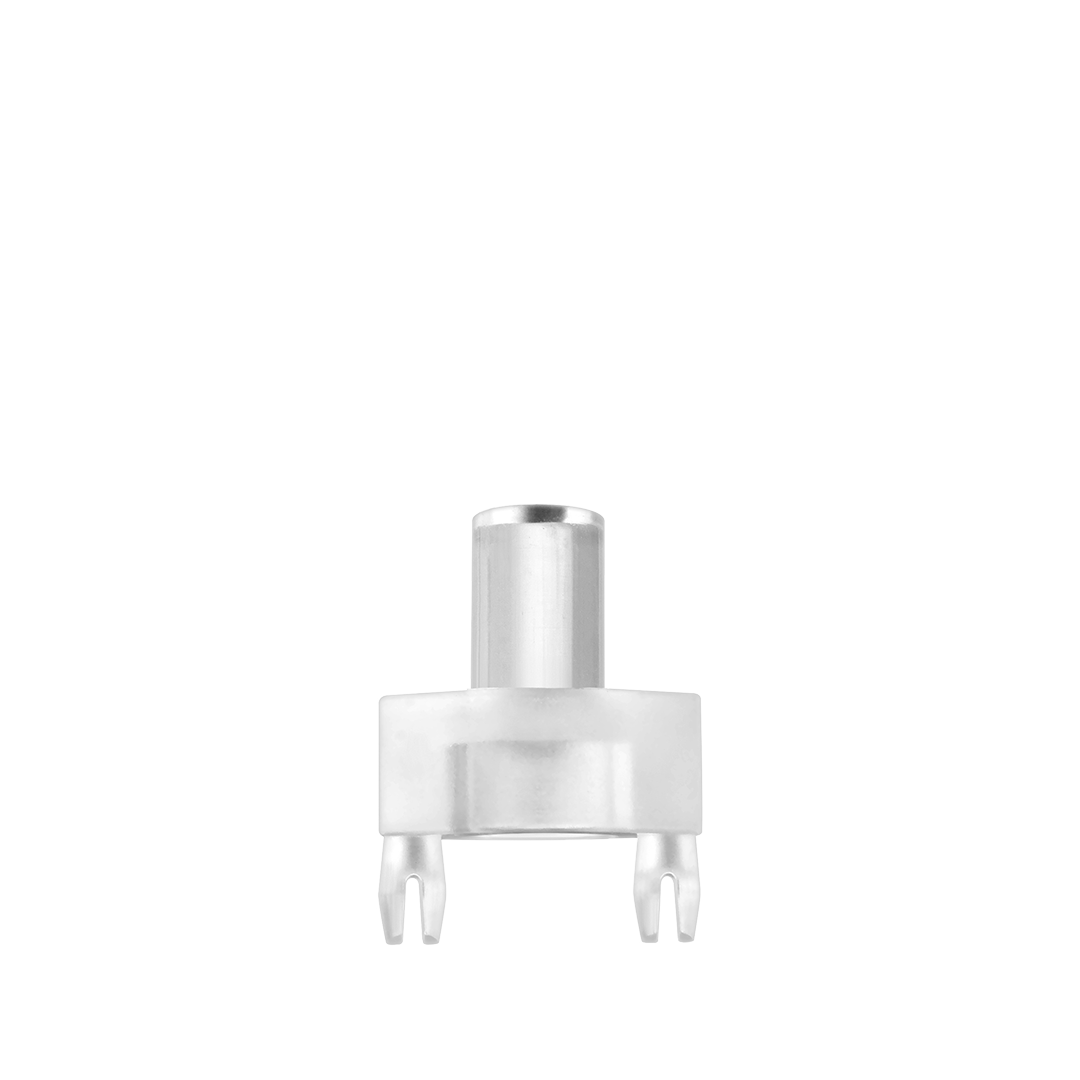

| GVLP-300-F |
 GVLP-300-F |
3D Model
N/A
|
Lens Profile N/A Flat | Lens Size N/A 3.3mm | Lens Color N/A Clear | Panel Cutout N/A Round | Body Height N/A 0.300 in. (7.6mm) |

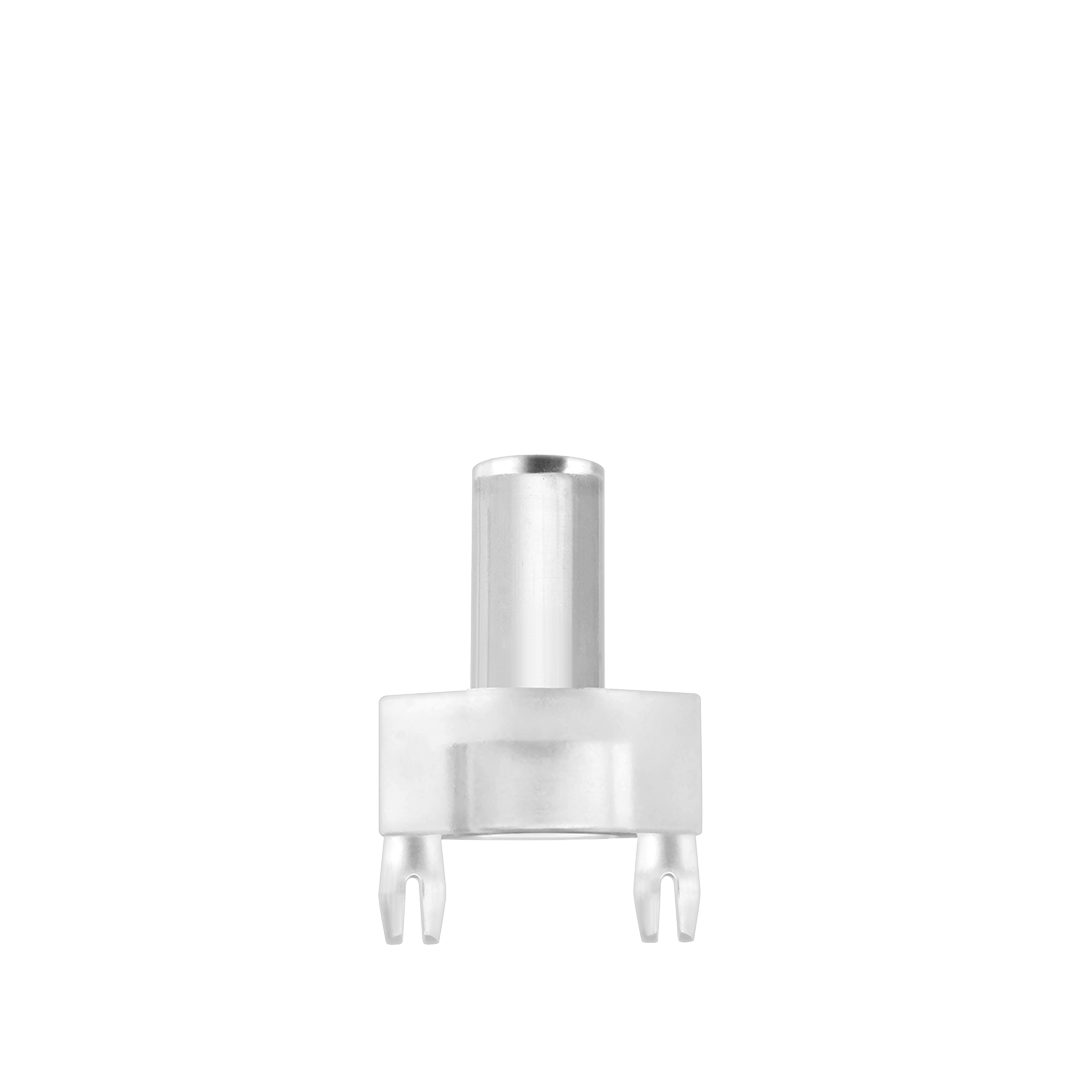

| GVLP-350-F |
 GVLP-350-F |
3D Model
N/A
|
Lens Profile N/A Flat | Lens Size N/A 3.3mm | Lens Color N/A Clear | Panel Cutout N/A Round | Body Height N/A 0.350 in. (8.9mm) |
| GVLP-400-F |
 GVLP-400-F |
3D Model
N/A
|
Lens Profile N/A Flat | Lens Size N/A 3.3mm | Lens Color N/A Clear | Panel Cutout N/A Round | Body Height N/A 0.400 in. (10.2mm) |

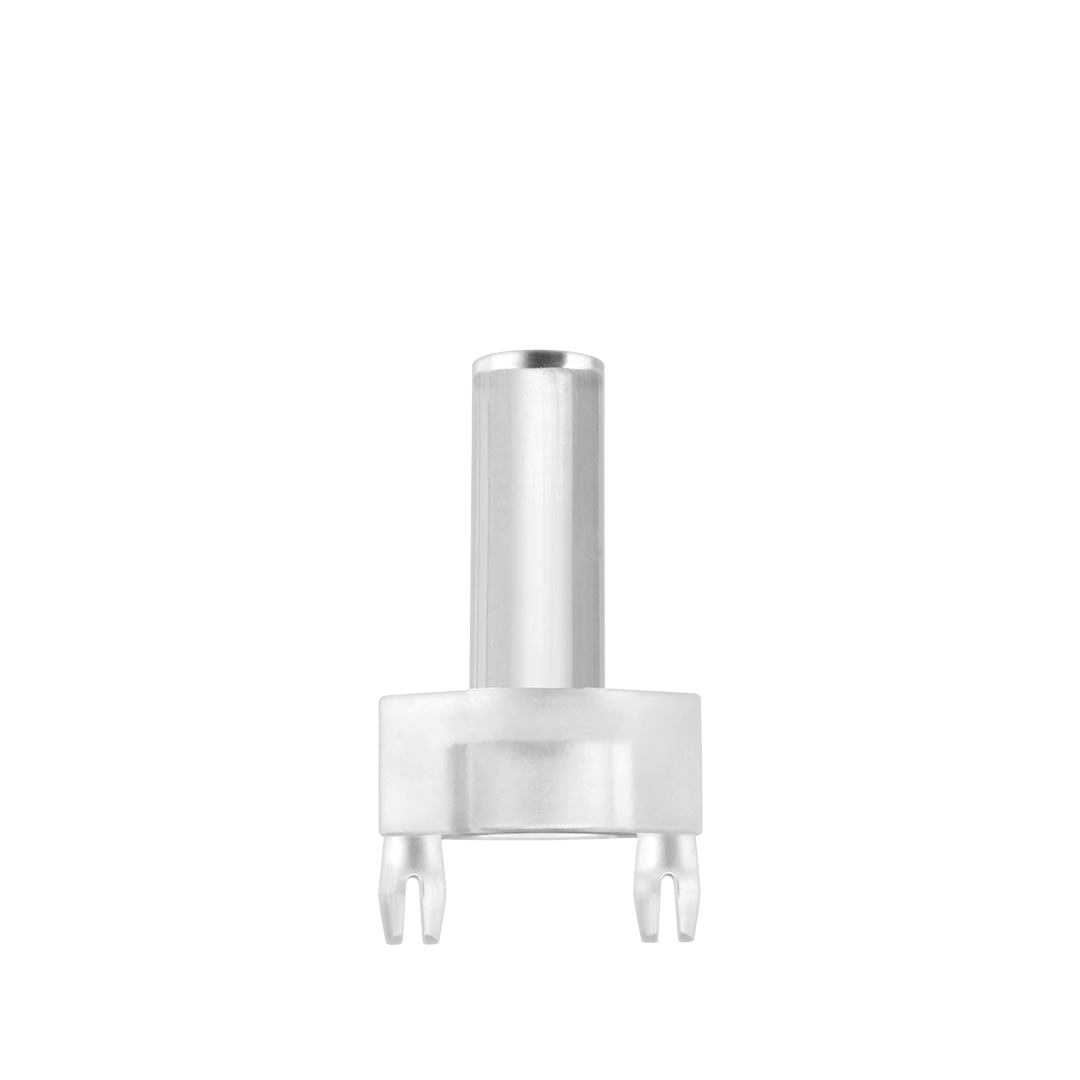

| GVLP-450-F |
 GVLP-450-F |
3D Model
N/A
|
Lens Profile N/A Flat | Lens Size N/A 3.3mm | Lens Color N/A Clear | Panel Cutout N/A Round | Body Height N/A 0.450 in. (11.4mm) |

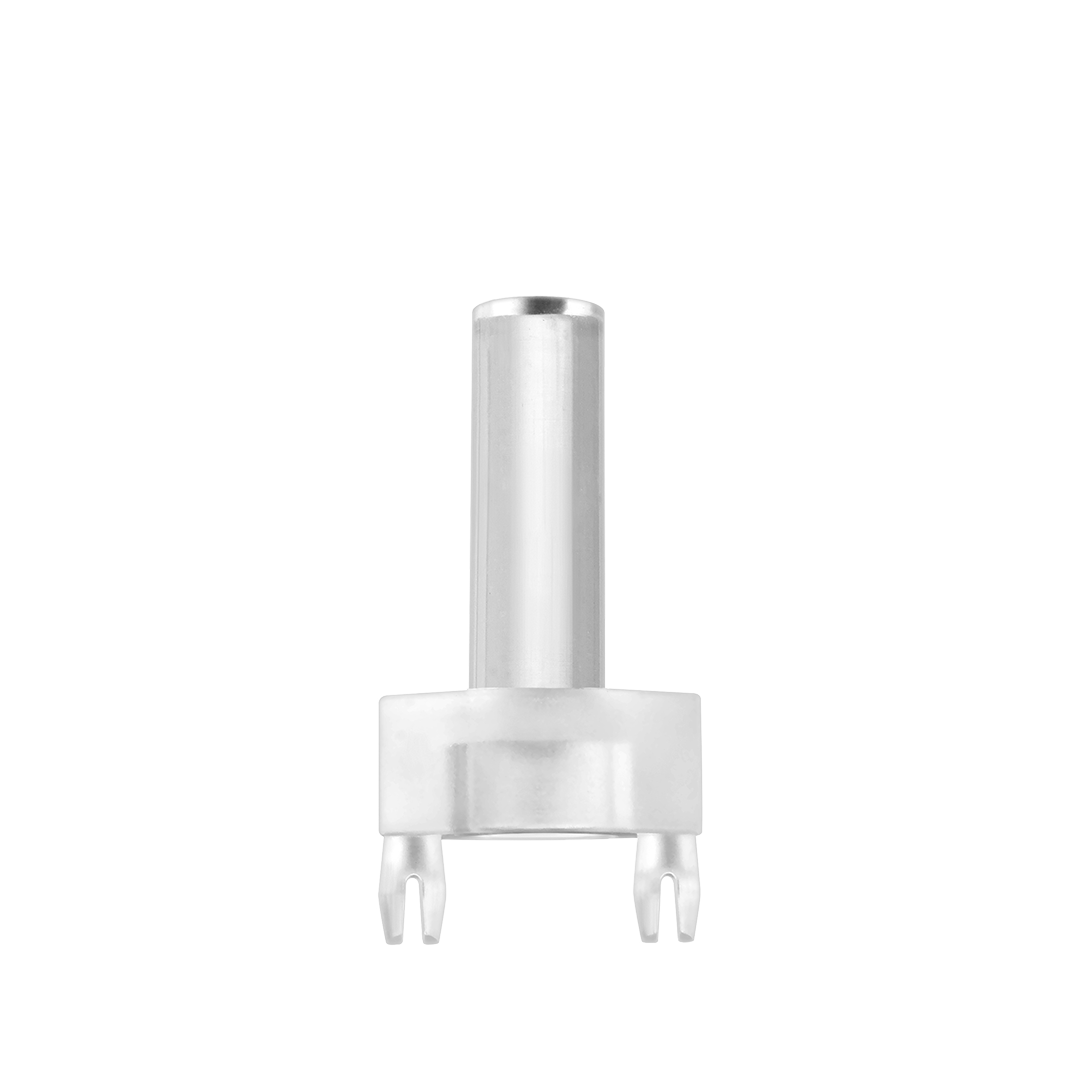

| GVLP-500-F |
 GVLP-500-F |
3D Model
N/A
|
Lens Profile N/A Flat | Lens Size N/A 3.3mm | Lens Color N/A Clear | Panel Cutout N/A Round | Body Height N/A 0.500 in. (12.7mm) |
| GVLP-550-F |
 GVLP-550-F |
3D Model
N/A
|
Lens Profile N/A Flat | Lens Size N/A 3.3mm | Lens Color N/A Clear | Panel Cutout N/A Round | Body Height N/A 0.550 in. (13.9mm) |

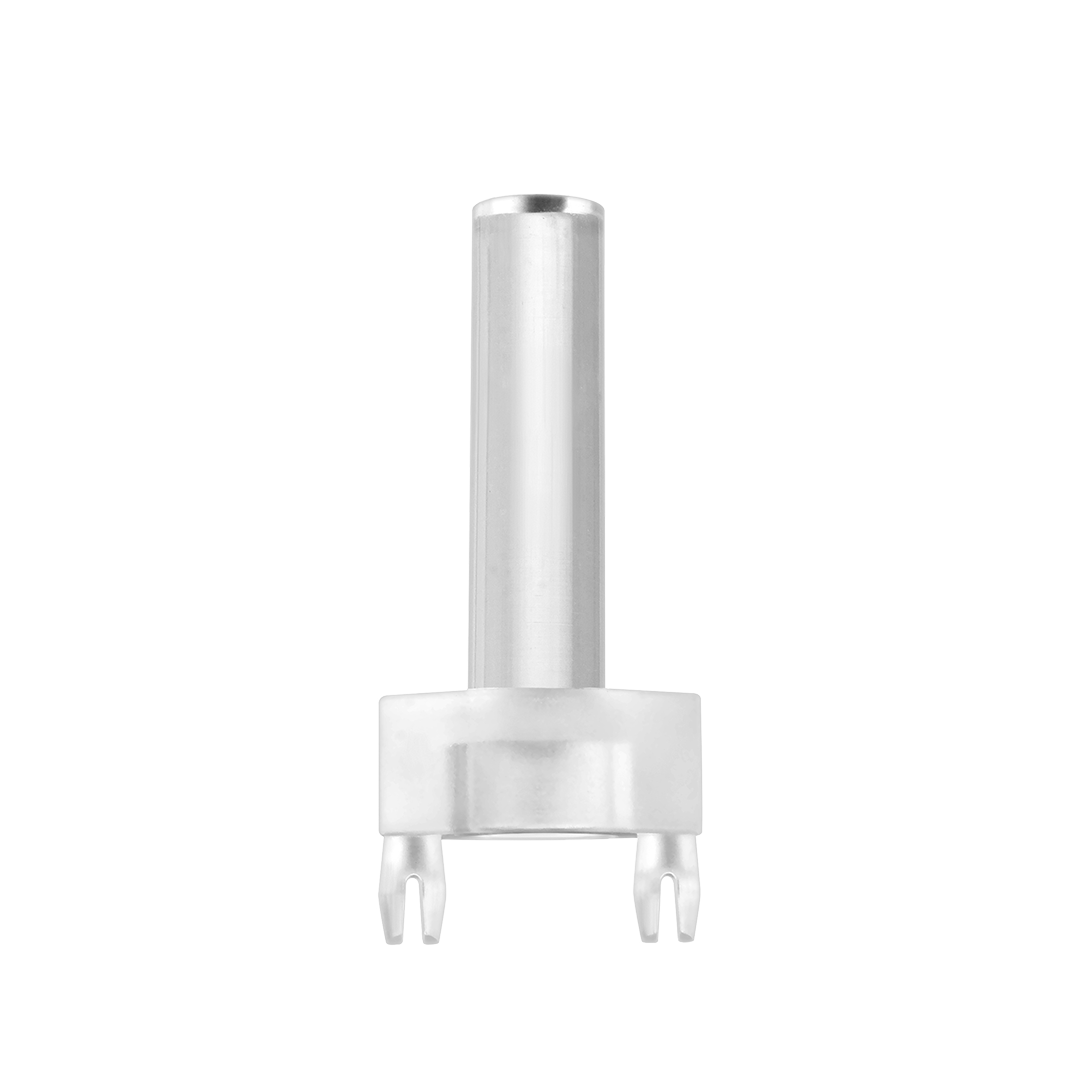

| GVLP-600-F |
 GVLP-600-F |
3D Model
N/A
|
Lens Profile N/A Flat | Lens Size N/A 3.3mm | Lens Color N/A Clear | Panel Cutout N/A Round | Body Height N/A 0.600 in. (15.2mm) |
| GVLP-640-F |
 GVLP-640-F |
3D Model
N/A
|
Lens Profile N/A Flat | Lens Size N/A 3.3mm | Lens Color N/A Clear | Panel Cutout N/A Round | Body Height N/A 0.640 in. (16.3mm) |

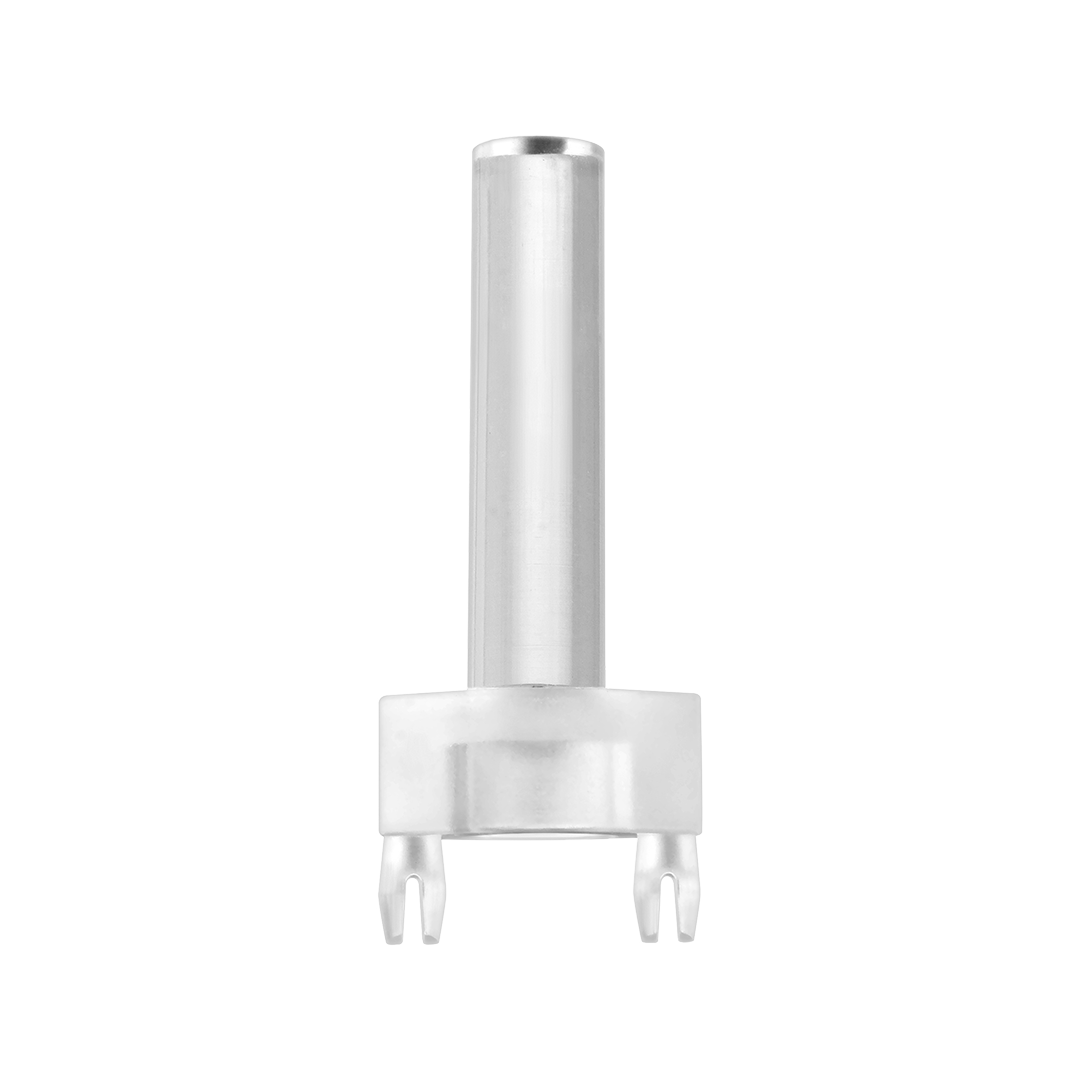

| GVLP-650-F |
 GVLP-650-F |
3D Model
N/A
|
Lens Profile N/A Flat | Lens Size N/A 3.3mm | Lens Color N/A Clear | Panel Cutout N/A Round | Body Height N/A 0.650 in. (16.5mm) |

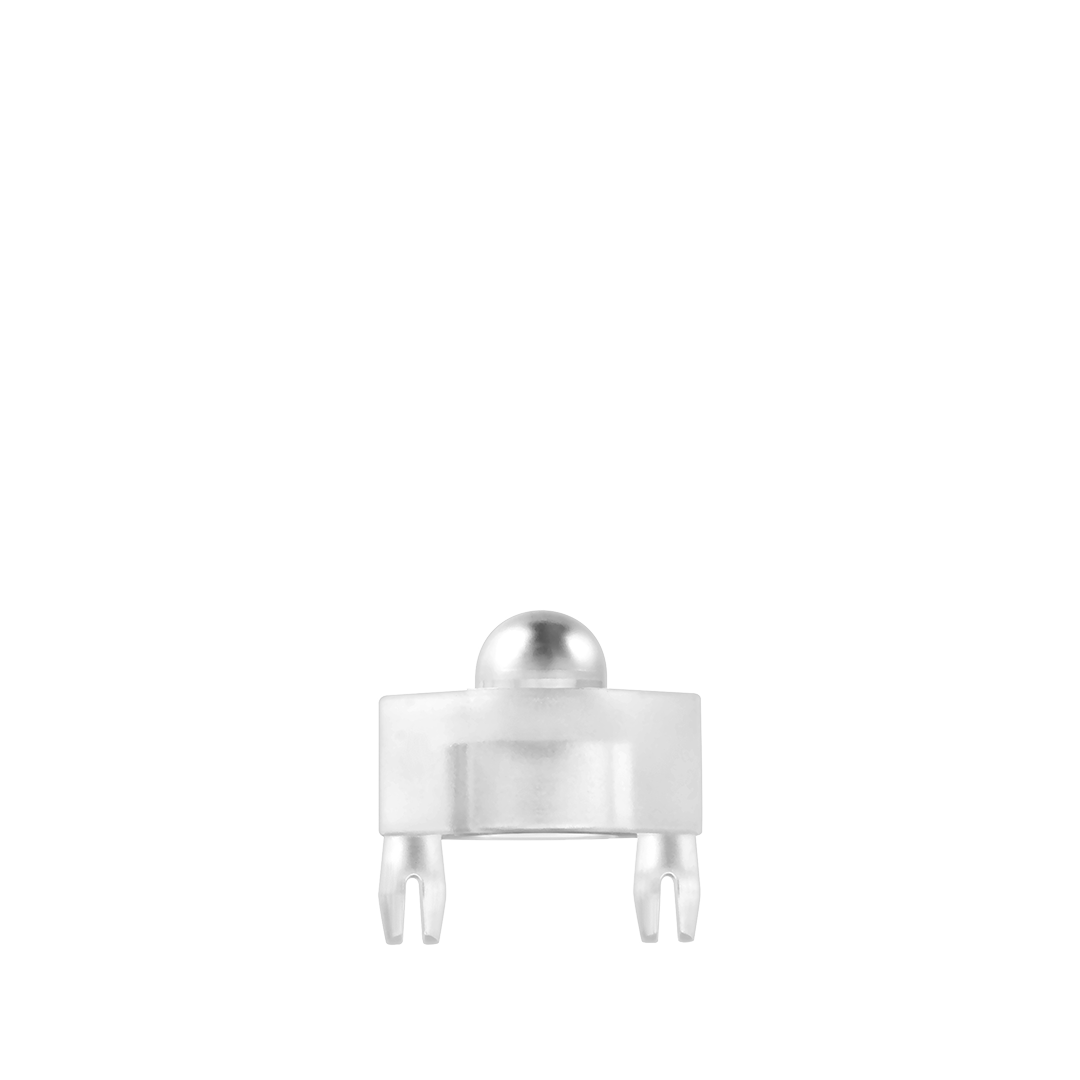

| GVLP-200-R |
 GVLP-200-R |
3D Model
N/A
|
Lens Profile N/A Round | Lens Size N/A 3.3mm | Lens Color N/A Clear | Panel Cutout N/A Round | Body Height N/A 0.200 in. (5.1mm) |

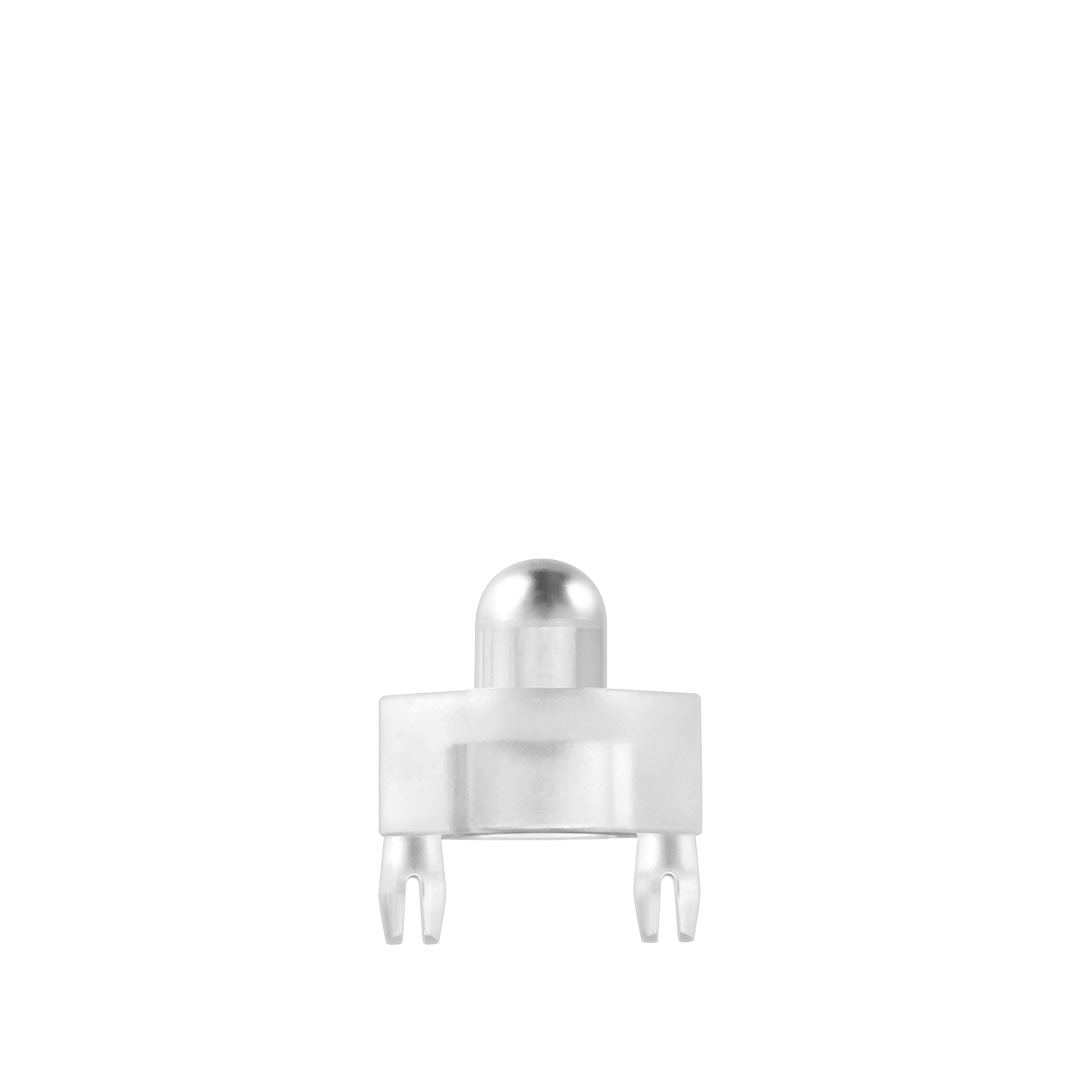

| GVLP-250-R |
 GVLP-250-R |
3D Model
N/A
|
Lens Profile N/A Round | Lens Size N/A 3.3mm | Lens Color N/A Clear | Panel Cutout N/A Round | Body Height N/A 0.250 in. (6.4mm) |

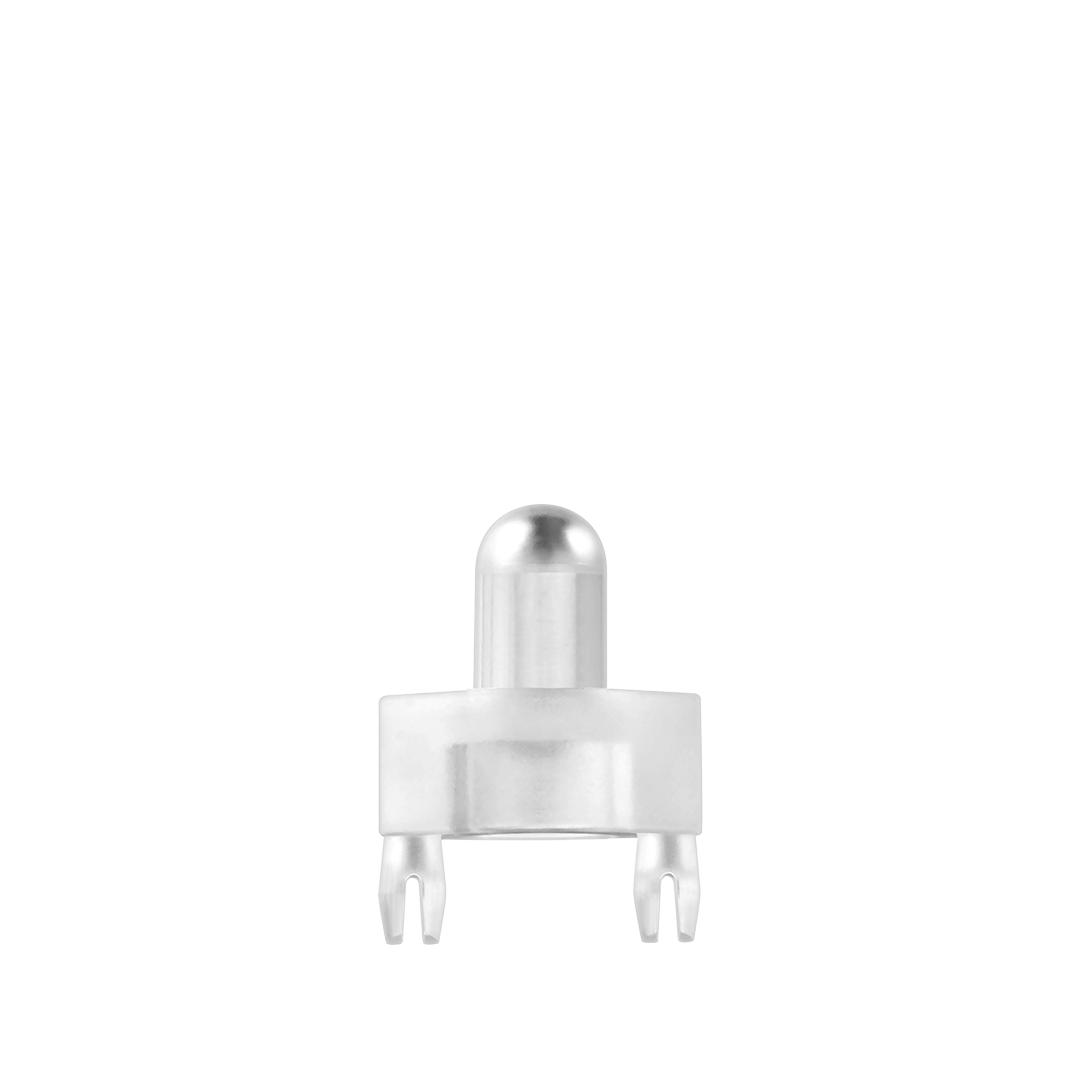

| GVLP-300-R |
 GVLP-300-R |
3D Model
N/A
|
Lens Profile N/A Round | Lens Size N/A 3.3mm | Lens Color N/A Clear | Panel Cutout N/A Round | Body Height N/A 0.300 in. (7.6mm) |
| GVLP-350-R |
 GVLP-350-R |
3D Model
N/A
|
Lens Profile N/A Round | Lens Size N/A 3.3mm | Lens Color N/A Clear | Panel Cutout N/A Round | Body Height N/A 0.350 in. (8.9mm) |

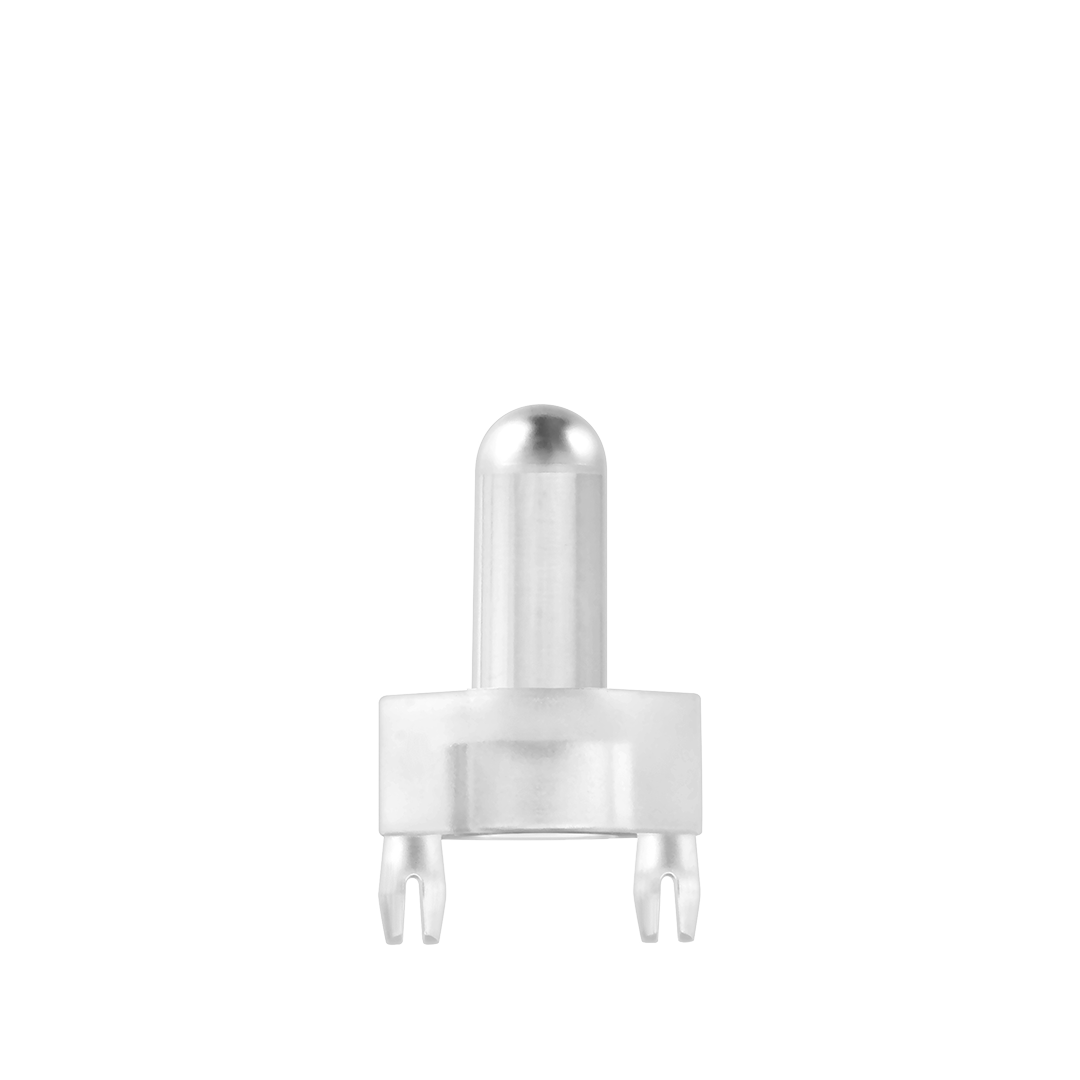

| GVLP-400-R |
 GVLP-400-R |
3D Model
N/A
|
Lens Profile N/A Round | Lens Size N/A 3.3mm | Lens Color N/A Clear | Panel Cutout N/A Round | Body Height N/A 0.400 in. (10.2mm) |

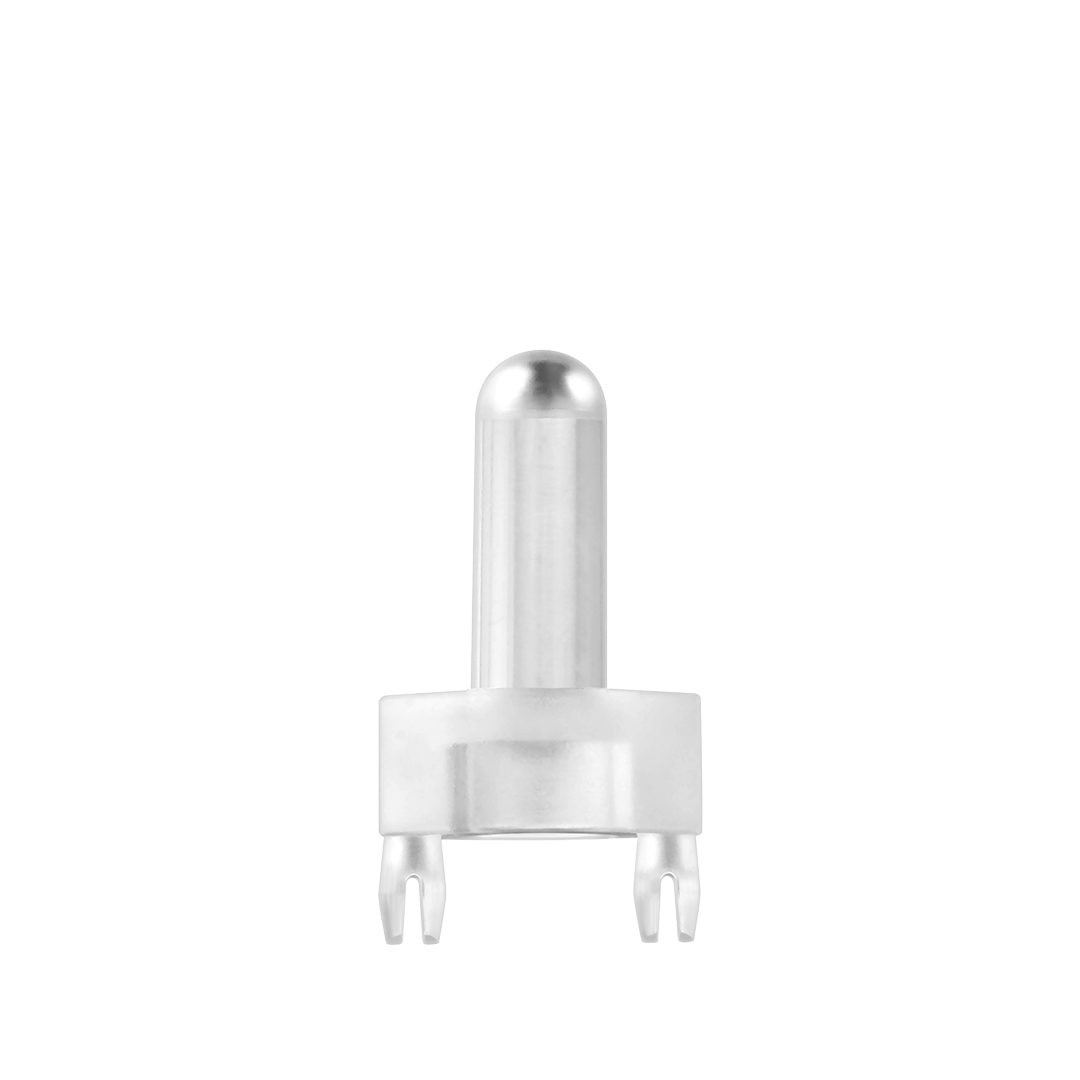

| GVLP-450-R |
 GVLP-450-R |
3D Model
N/A
|
Lens Profile N/A Round | Lens Size N/A 3.3mm | Lens Color N/A Clear | Panel Cutout N/A Round | Body Height N/A 0.450 in. (11.4mm) |

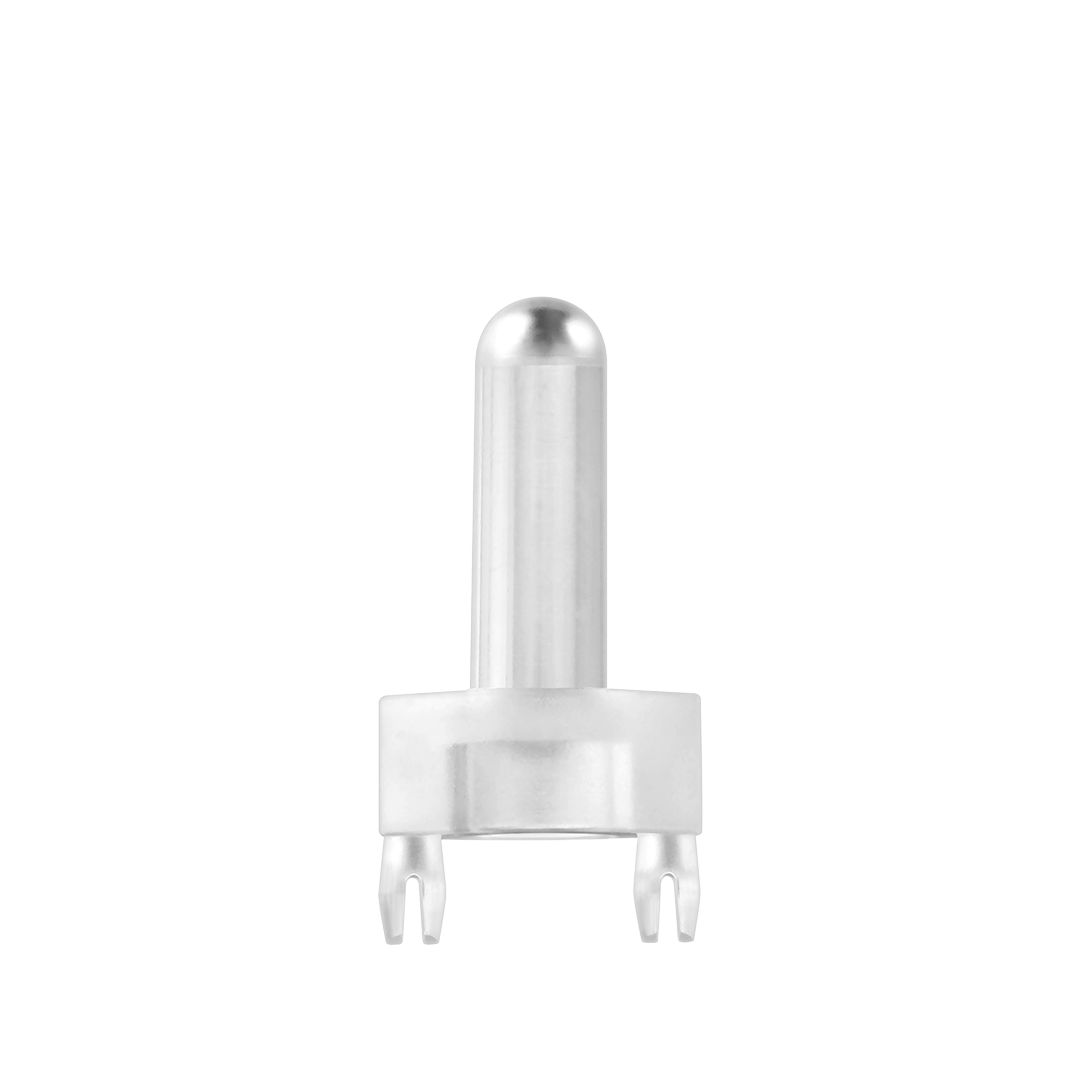

| GVLP-500-R |
 GVLP-500-R |
3D Model
N/A
|
Lens Profile N/A Round | Lens Size N/A 3.3mm | Lens Color N/A Clear | Panel Cutout N/A Round | Body Height N/A 0.500 in. (12.7mm) |

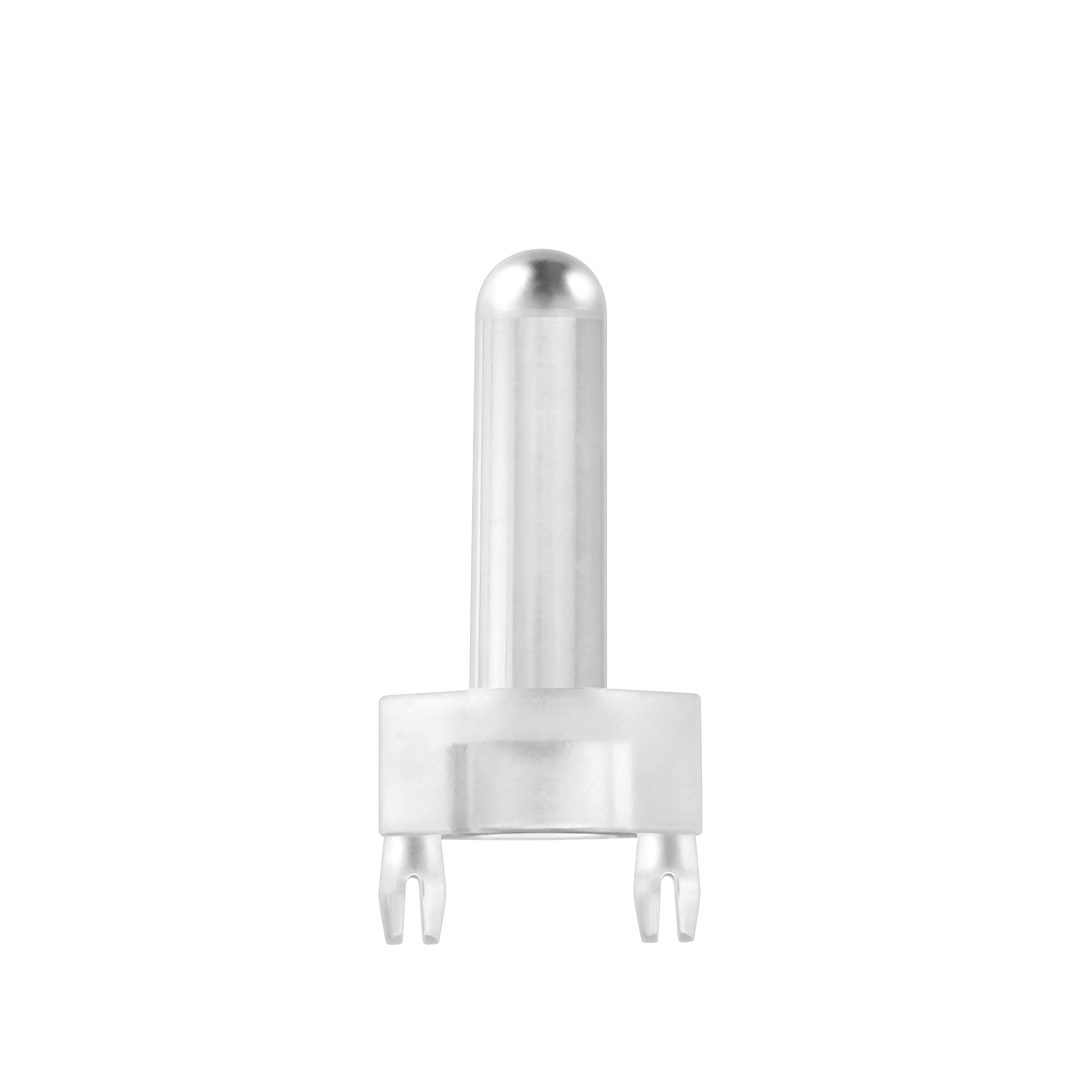

| GVLP-550-R |
 GVLP-550-R |
3D Model
N/A
|
Lens Profile N/A Round | Lens Size N/A 3.3mm | Lens Color N/A Clear | Panel Cutout N/A Round | Body Height N/A 0.550 in. (13.9mm) |

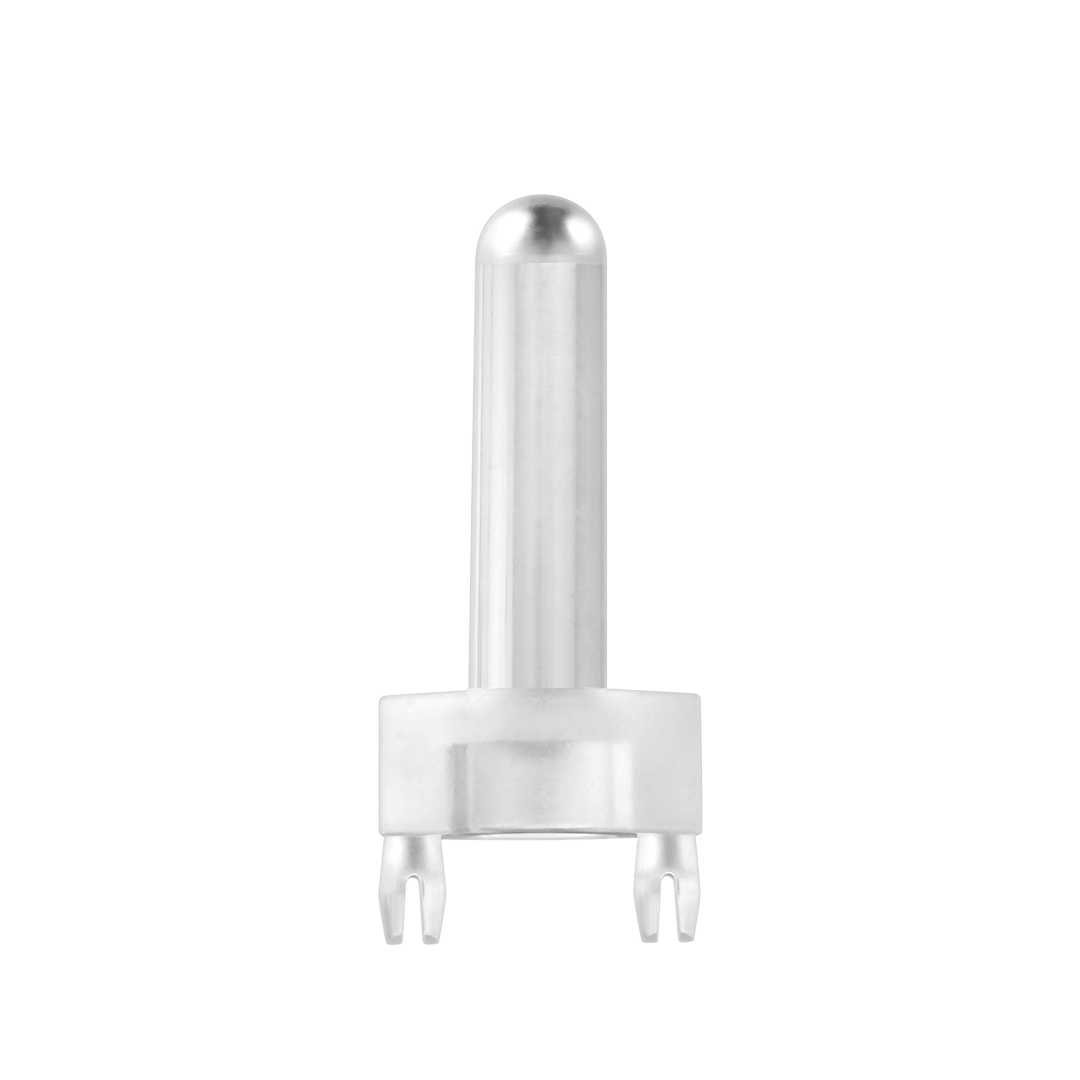

| GVLP-600-R |
 GVLP-600-R |
3D Model
N/A
|
Lens Profile N/A Round | Lens Size N/A 3.3mm | Lens Color N/A Clear | Panel Cutout N/A Round | Body Height N/A 0.600 in. (15.2mm) |

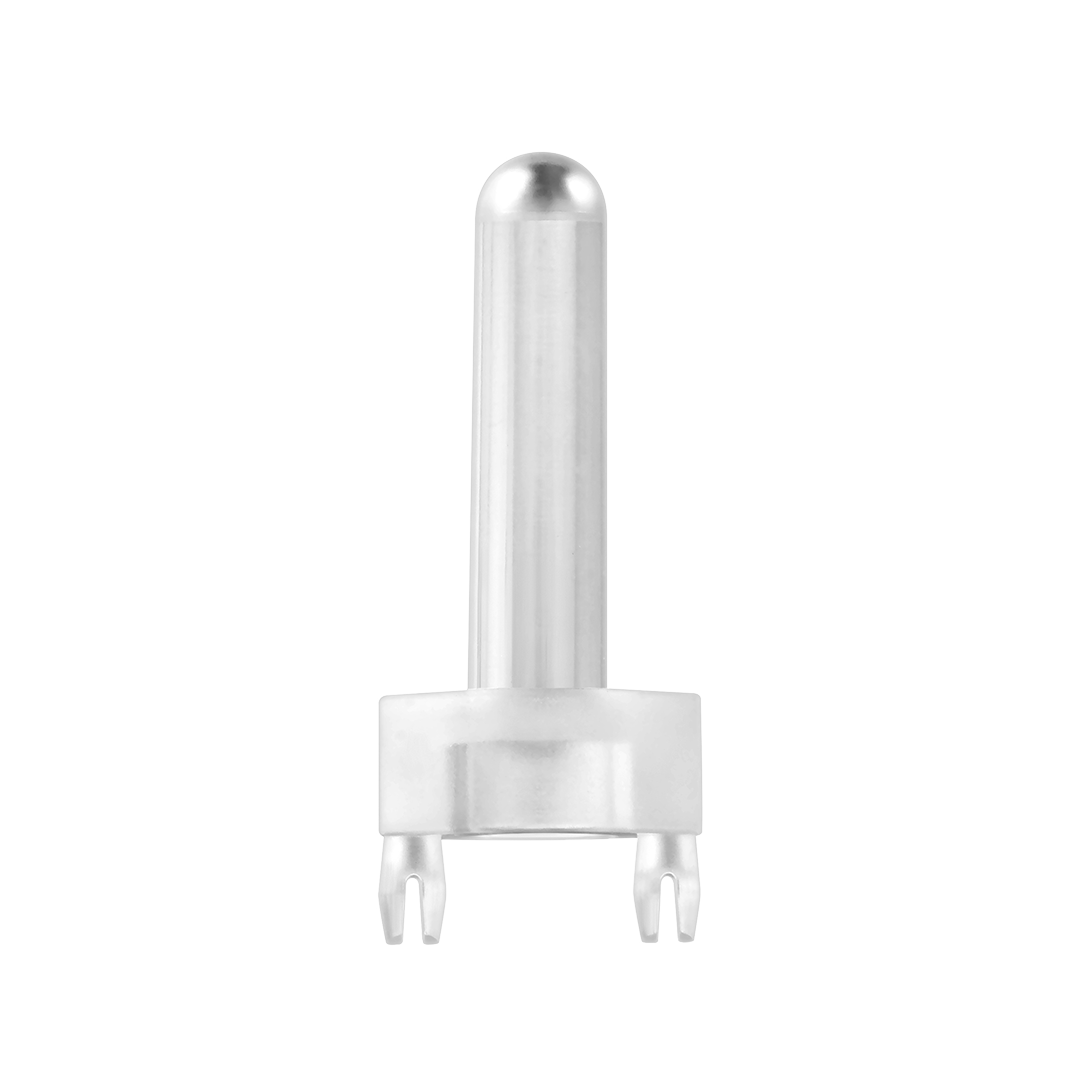

| GVLP-640-R |
 GVLP-640-R |
3D Model
N/A
|
Lens Profile N/A Round | Lens Size N/A 3.3mm | Lens Color N/A Clear | Panel Cutout N/A Round | Body Height N/A 0.640 in. (16.3mm) |

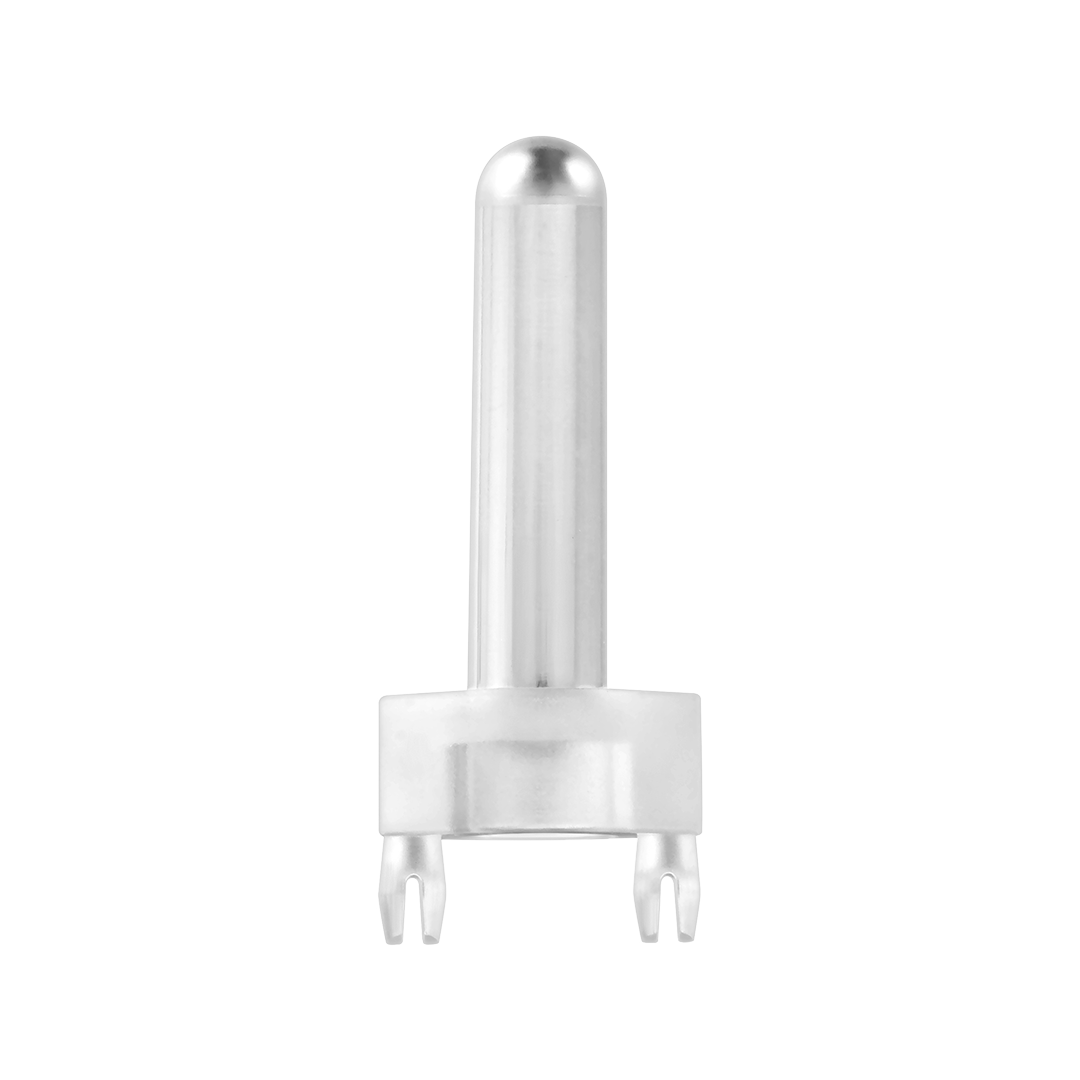

| GVLP-650-R |
 GVLP-650-R |
3D Model
N/A
|
Lens Profile N/A Round | Lens Size N/A 3.3mm | Lens Color N/A Clear | Panel Cutout N/A Round | Body Height N/A 0.650 in. (16.5mm) |
