GLP
Rigid Panel Press-Fit

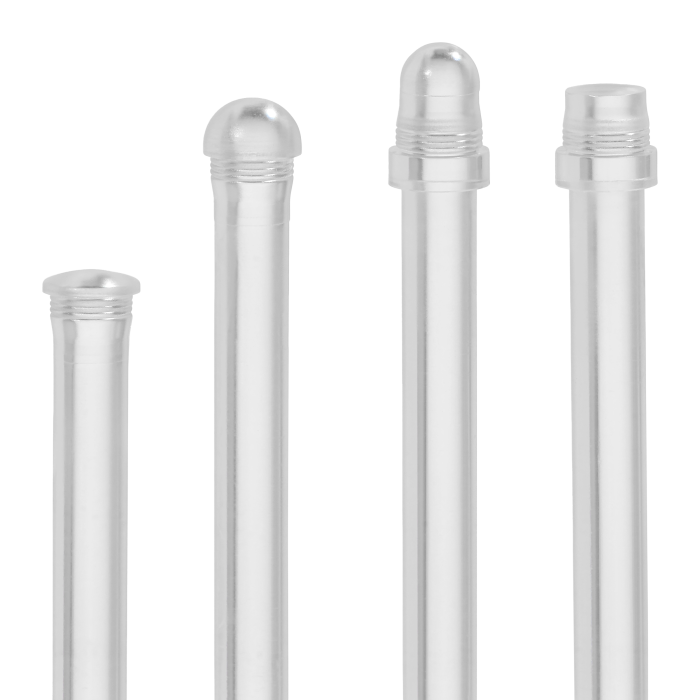

Enhanced Light Pipe Protection Bivar’s new GLP Series light pipes bring added protection to your designs.
Built on the highly popular PLP1 and PLP2 light pipe platforms, the GLP Series features Bivar’s proprietary Press-Fit Halo™ design, which delivers IP54 ingress protection—no additional gaskets or hardware needed.
Ideal for rugged environments where dust and moisture are a concern, these panel mount light pipes are available in a variety of lengths and lens profiles to suit a wide range of applications.
With simplified installation and sealed performance, the GLP Series is the perfect upgrade for industrial, consumer, and outdoor use.
Now available and ready to support your next design.
Item # |
Image |
3D Model |
Lens Size |
Lens Profile |
Body Length |
Panel Cutout |
Lens Color |
|---|---|---|---|---|---|---|---|

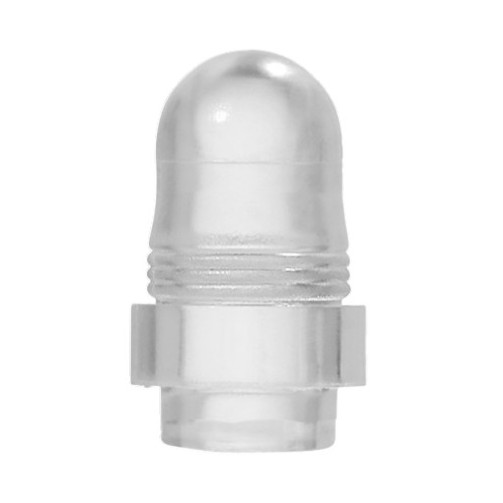

| GLP1-100-D-54 |
 GLP1-100-D-54 |
3D Model
N/A
|
Lens Size N/A 3mm (.118 in.) | Lens Profile N/A Dome | Body Length N/A .100 in. (2.5mm) | Panel Cutout N/A Round | Lens Color N/A Clear |

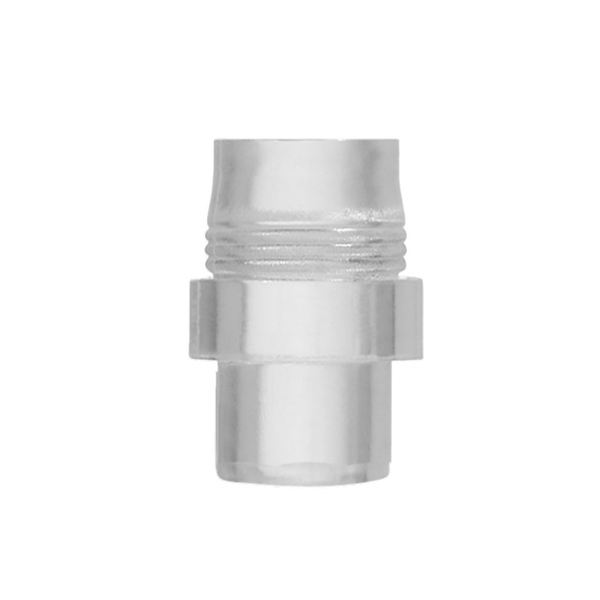

| GLP1-100-F-54 |
 GLP1-100-F-54 |
3D Model
N/A
|
Lens Size N/A 3mm (.118 in.) | Lens Profile N/A Flat | Body Length N/A .100 in. (2.5mm) | Panel Cutout N/A Round | Lens Color N/A Clear |
| GLP1-1200-D-54 |
 GLP1-1200-D-54 |
3D Model
N/A
|
Lens Size N/A 3mm (.118 in.) | Lens Profile N/A Round | Body Length N/A 1.200 in. (30.5mm) | Panel Cutout N/A Round | Lens Color N/A Clear |
| GLP1-1200-F-54 |
 GLP1-1200-F-54 |
3D Model
N/A
|
Lens Size N/A 3mm (.118 in.) | Lens Profile N/A Dome | Body Length N/A 1.200 in. (30.5mm) | Panel Cutout N/A Round | Lens Color N/A Clear |

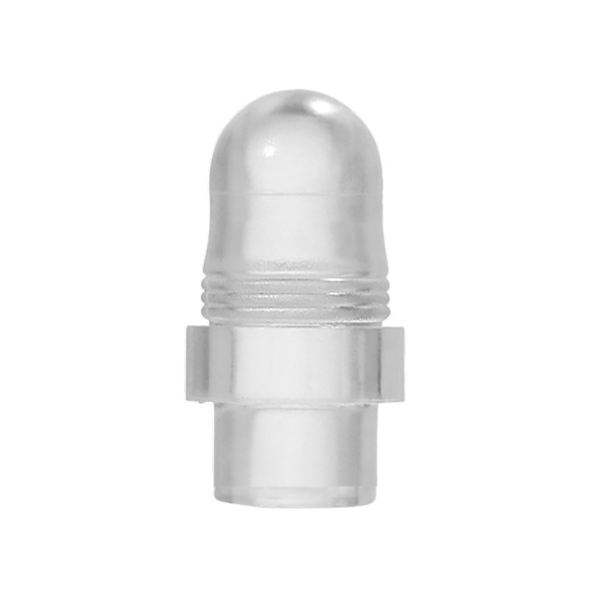

| GLP1-125-D-54 |
 GLP1-125-D-54 |
3D Model
N/A
|
Lens Size N/A 3mm (.118 in.) | Lens Profile N/A Round | Body Length N/A .125 in. (3.2mm) | Panel Cutout N/A Round | Lens Color N/A Clear |

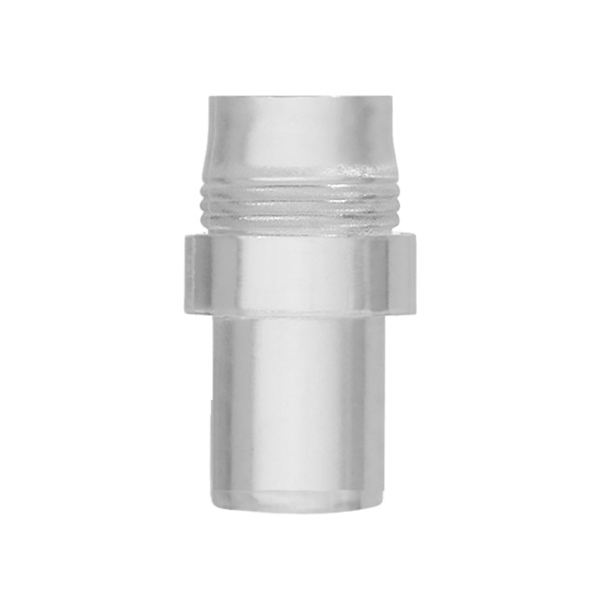

| GLP1-125-F-54 |
 GLP1-125-F-54 |
3D Model
N/A
|
Lens Size N/A 3mm (.118 in.) | Lens Profile N/A Dome | Body Length N/A .125 in. (3.2mm) | Panel Cutout N/A Round | Lens Color N/A Clear |

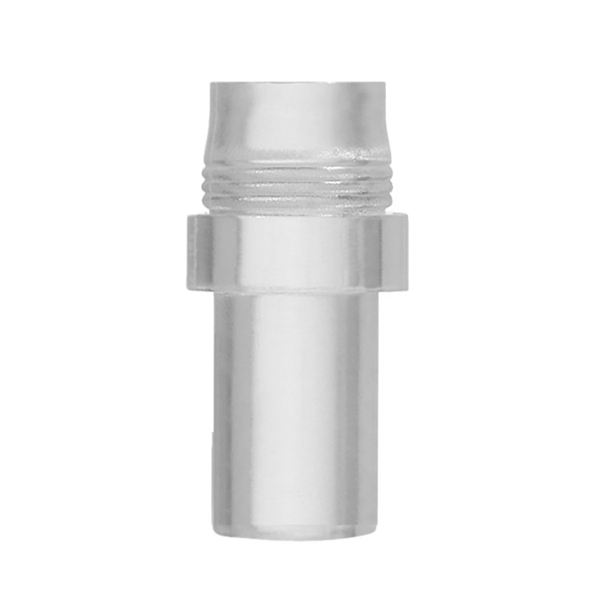

| GLP1-188-F-54 |
 GLP1-188-F-54 |
3D Model
N/A
|
Lens Size N/A 3mm (.118 in.) | Lens Profile N/A Dome | Body Length N/A .188 in. (4.8mm) | Panel Cutout N/A Round | Lens Color N/A Clear |

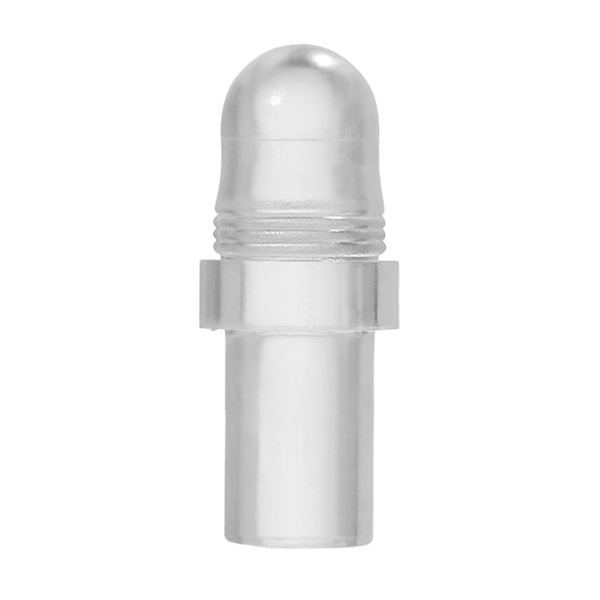

| GLP1-250-D-54 |
 GLP1-250-D-54 |
3D Model
N/A
|
Lens Size N/A 3mm (.118 in.) | Lens Profile N/A Round | Body Length N/A .250 in. (6.4mm) | Panel Cutout N/A Round | Lens Color N/A Clear |

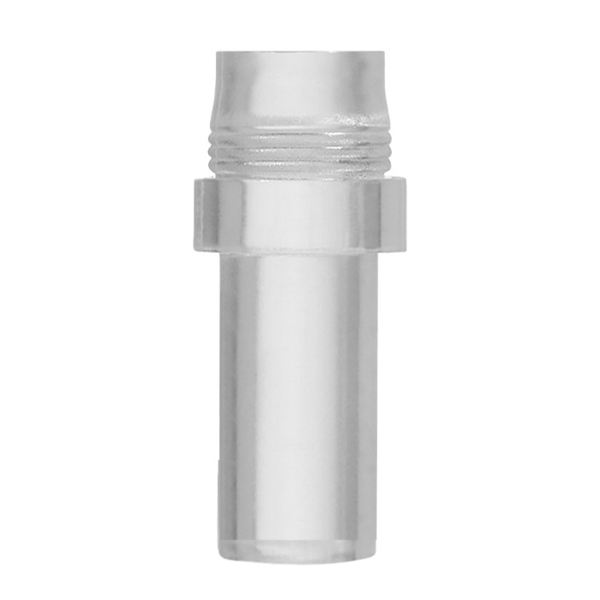

| GLP1-250-F-54 |
 GLP1-250-F-54 |
3D Model
N/A
|
Lens Size N/A 3mm (.118 in.) | Lens Profile N/A Dome | Body Length N/A .250 in. (6.4mm) | Panel Cutout N/A Round | Lens Color N/A Clear |
| GLP1-313-D-54 |
 GLP1-313-D-54 |
3D Model
N/A
|
Lens Size N/A 3mm (.118 in.) | Lens Profile N/A Round | Body Length N/A .313 in. (7.9mm) | Panel Cutout N/A Round | Lens Color N/A Clear |
| GLP1-350-D-54 |
 GLP1-350-D-54 |
3D Model
N/A
|
Lens Size N/A 3mm (.118 in.) | Lens Profile N/A Round | Body Length N/A .350 in. (8.9mm) | Panel Cutout N/A Round | Lens Color N/A Clear |
| GLP1-350-F-54 |
 GLP1-350-F-54 |
3D Model
N/A
|
Lens Size N/A 3mm (.118 in.) | Lens Profile N/A Dome | Body Length N/A .350 in. (8.9mm) | Panel Cutout N/A Round | Lens Color N/A Clear |
| GLP1-375-D-54 |
 GLP1-375-D-54 |
3D Model
N/A
|
Lens Size N/A 3mm (.118 in.) | Lens Profile N/A Round | Body Length N/A .375 in. (9.5mm) | Panel Cutout N/A Round | Lens Color N/A Clear |
| GLP1-375-F-54 |
 GLP1-375-F-54 |
3D Model
N/A
|
Lens Size N/A 3mm (.118 in.) | Lens Profile N/A Dome | Body Length N/A .375 in. (9.5mm) | Panel Cutout N/A Round | Lens Color N/A Clear |
| GLP1-460-D-54 |
 GLP1-460-D-54 |
3D Model
N/A
|
Lens Size N/A 3mm (.118 in.) | Lens Profile N/A Round | Body Length N/A .460 in. (11.7mm) | Panel Cutout N/A Round | Lens Color N/A Clear |
| GLP1-500-D-54 |
 GLP1-500-D-54 |
3D Model
N/A
|
Lens Size N/A 3mm (.118 in.) | Lens Profile N/A Round | Body Length N/A .500 in. (12.7mm) | Panel Cutout N/A Round | Lens Color N/A Clear |
| GLP1-500-F-54 |
 GLP1-500-F-54 |
3D Model
N/A
|
Lens Size N/A 3mm (.118 in.) | Lens Profile N/A Dome | Body Length N/A .500 in. (12.7mm) | Panel Cutout N/A Round | Lens Color N/A Clear |

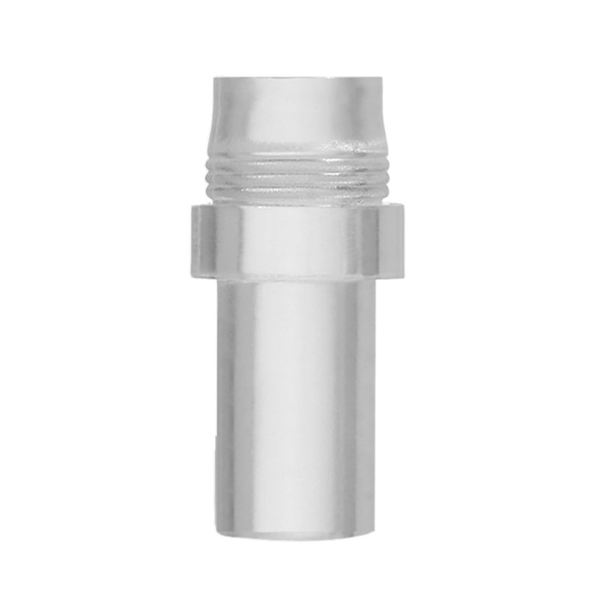

| GLP1-5MM-F-54 |
 GLP1-5MM-F-54 |
3D Model
N/A
|
Lens Size N/A 3mm (.118 in.) | Lens Profile N/A Dome | Body Length N/A 5mm (.197 in.) | Panel Cutout N/A Round | Lens Color N/A Clear |
| GLP1-625-D-54 |
 GLP1-625-D-54 |
3D Model
N/A
|
Lens Size N/A 3mm (.118 in.) | Lens Profile N/A Round | Body Length N/A .625 in. (15.9mm) | Panel Cutout N/A Round | Lens Color N/A Clear |
| GLP1-625-F-54 |
 GLP1-625-F-54 |
3D Model
N/A
|
Lens Size N/A 3mm (.118 in.) | Lens Profile N/A Dome | Body Length N/A .625 in. (15.9mm) | Panel Cutout N/A Round | Lens Color N/A Clear |
| GLP1-750-D-54 |
 GLP1-750-D-54 |
3D Model
N/A
|
Lens Size N/A 3mm (.118 in.) | Lens Profile N/A Round | Body Length N/A .750 in. (19.0mm) | Panel Cutout N/A Round | Lens Color N/A Clear |
| GLP1-750-F-54 |
 GLP1-750-F-54 |
3D Model
N/A
|
Lens Size N/A 3mm (.118 in.) | Lens Profile N/A Dome | Body Length N/A .750 in. (19.0mm) | Panel Cutout N/A Round | Lens Color N/A Clear |
| GLP2-1000-R-54 |
 GLP2-1000-R-54 |
3D Model
N/A
|
Lens Size N/A 3.68mm (.145 in.) | Lens Profile N/A Dome | Body Length N/A 1.000 in. (25.4mm) | Panel Cutout N/A Round | Lens Color N/A Clear |

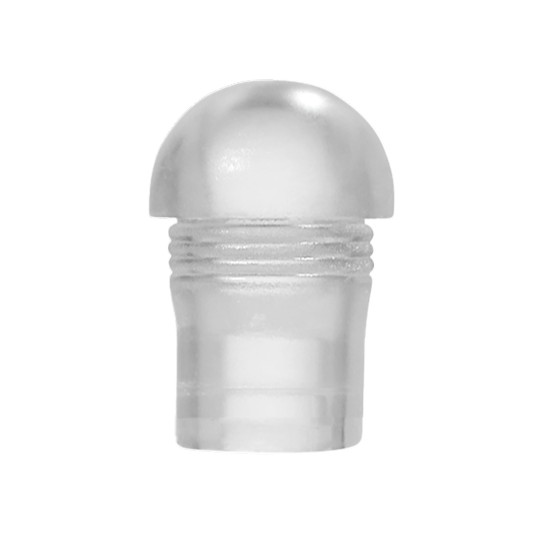

| GLP2-100-D-54 |
 GLP2-100-D-54 |
3D Model
N/A
|
Lens Size N/A 3.68mm (.145 in.) | Lens Profile N/A Dome | Body Length N/A .100 in. (2.5mm) | Panel Cutout N/A Round | Lens Color N/A Clear |

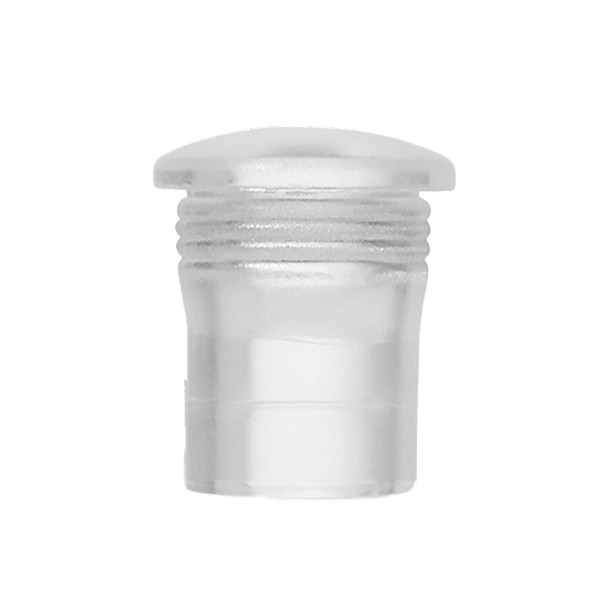

| GLP2-100-R-54 |
 GLP2-100-R-54 |
3D Model
N/A
|
Lens Size N/A 3.68mm (.145 in.) | Lens Profile N/A Round | Body Length N/A .100 in. (2.5mm) | Panel Cutout N/A Round | Lens Color N/A Clear |
