• SM0603
Miniature 0603 industry standard SMD LED package.
  • Ideal for general indication, display backlighting.
  • Use with Bivar Rigid Light Pipes.
  • Available in a wide variety of color and luminous intensities.
  • Low power, long life reliability.
  • AvailableWide viewing angle 120°.
  • Supplied in tape and reel.
1 - 16 of 16 | Results Per Page | View | Unit of Measure
1
Request Information Compare Items
Clear Filter

Voltage Rating

  • 1.8 V
  • 1.85 V
  • 1.9 V
  • 2.0 V
  • 2.1 V
  • 3.0 V
  • 3.3 V

Lens Profile

  • Flat Water Clear
  • Water Clear

Color/Wavelength

  • Amber 610nm
  • Blue 468nm
  • Blue 469nm
  • Green 510nm
  • Green 555nm
  • Green 568nm
  • Green 575nm
  • HE Red/627nm
  • Orange 610nm
  • Red 655nm
  • Red 660nm
  • Red 700nm
  • White 6000K
  • Yellow 583nm
  • Yellow 593nm

Current

  • 2 mA
  • 20 mA
  • 5 mA

Viewing Angle

  • 110°
  • 130°

Item #


3D Model

Voltage Rating

Lens Profile

Color/Wavelength

Package/Case Size

Current

Viewing Angle

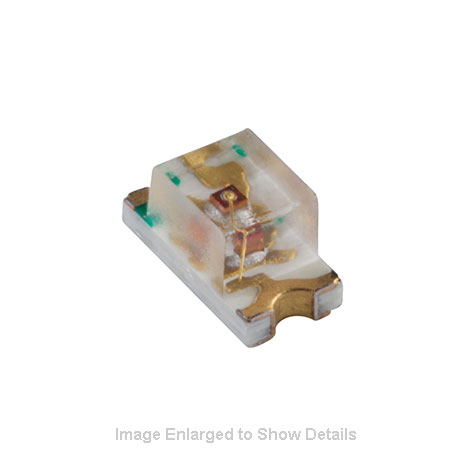

LEDs-SMD-0603
 		N/A CAD Icon (for items table) N/A 2.0 V N/A Flat Water Clear N/A Amber 610nm N/A SMD 0603 N/A 20 mA N/A 130°

LEDs-SMD-0603
 		N/A CAD Icon (for items table) N/A 2.1 V N/A Flat Water Clear N/A Green 568nm N/A SMD 0603 N/A 20 mA N/A 130°

LEDs-SMD-0603
 		N/A CAD Icon (for items table) N/A 1.9 V N/A Flat Water Clear N/A Green 575nm N/A SMD 0603 N/A 2 mA N/A 130°

LEDs-SMD-0603
 		N/A CAD Icon (for items table) N/A 1.8 V N/A Flat Water Clear N/A Red 660nm N/A SMD 0603 N/A 20 mA N/A 130°

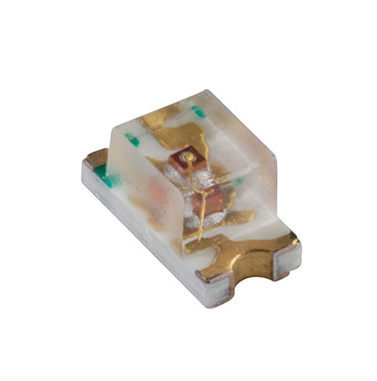

LEDs-SMD-0603-e1632416824675
 		N/A CAD Icon (for items table) N/A 1.8 V N/A Water Clear N/A HE Red/627nm N/A N/A 5 mA N/A 130°

LEDs-SMD-0603
 		N/A CAD Icon (for items table) N/A 2.1 V N/A Flat Water Clear N/A Orange 610nm N/A SMD 0603 N/A 20 mA N/A 130°

LEDs-SMD-0603
 		N/A CAD Icon (for items table) N/A 2.0 V N/A Flat Water Clear N/A Green 555nm N/A SMD 0603 N/A 20 mA N/A 130°

LEDs-SMD-0603
 		N/A CAD Icon (for items table) N/A 2.0 V N/A Flat Water Clear N/A Red 700nm N/A SMD 0603 N/A 20 mA N/A 130°

LEDs-SMD-0603
 		N/A CAD Icon (for items table) N/A 3.0 V N/A Flat Water Clear N/A Blue 469nm N/A SMD 0603 N/A 20 mA N/A 130°

LEDs-SMD-0603
 		N/A CAD Icon (for items table) N/A 1.85 V N/A Flat Water Clear N/A Red 660nm N/A SMD 0603 N/A 20 mA N/A 130°

LEDs-SMD-0603
 		N/A CAD Icon (for items table) N/A 3.0 V N/A Flat Water Clear N/A Blue 468nm N/A SMD 0603 N/A 20 mA N/A 130°

LEDs-SMD-0603
 		N/A CAD Icon (for items table) N/A 2.1 V N/A Flat Water Clear N/A Green 510nm N/A SMD 0603 N/A 20 mA N/A 130°

LEDs-SMD-0603
 		N/A CAD Icon (for items table) N/A 2.1 V N/A Flat Water Clear N/A Red 655nm N/A SMD 0603 N/A 20 mA N/A 130°

LEDs-SMD-0603
 		N/A CAD Icon (for items table) N/A 3.3 V N/A Flat Water Clear N/A White 6000K N/A SMD 0603 N/A 20 mA N/A 110°

LEDs-SMD-0603
 		N/A CAD Icon (for items table) N/A 2.1 V N/A Flat Water Clear N/A Yellow 593nm N/A SMD 0603 N/A 20 mA N/A 130°

LEDs-SMD-0603
 		N/A CAD Icon (for items table) N/A 2.0 V N/A Flat Water Clear N/A Yellow 583nm N/A SMD 0603 N/A 20 mA N/A 130°
