• SM0605

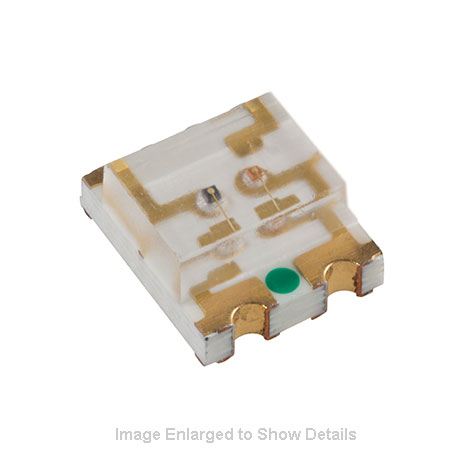

Miniature 0605 industry standard SMD LED package.
  • Bivar’s smallest bi-color SMD LED. 2 chips in one small package and footprint.
  • Ideal for small board designs that require multiple color outputs.
  • Use with Bivar Rigid Light Pipes.
  • Low power, long life reliability.
  • AvailableWide viewing angle 120°.
  • Supplied in tape and reel.
1 - 4 of 4 | Results Per Page | View | Unit of Measure
1
Request Information Compare Items

Item #


3D Model

Voltage Rating

Lens Profile

Color/Wavelength

Package/Case Size

Current

Viewing Angle

Stock

SM0605BC-R/B
LEDs-SMD-0605
 		N/A CAD Icon (for items table) N/A 2.0 V/3.3 V N/A Flat Water Clear N/A Red 630nm/Blue 468nm N/A SMD 0605 N/A 20 mA N/A 120° N/A
CHECK STOCK
SM0605BC-R/G
LEDs-SMD-0605
 		N/A CAD Icon (for items table) N/A 1.9 V/1.9 V N/A Flat Water Clear N/A Red 630nm/Green 575nm N/A SMD 0605 N/A 20 mA N/A 120° N/A
CHECK STOCK
SM0605BC-Y/G
LEDs-SMD-0605
 		N/A CAD Icon (for items table) N/A 2.1 V/2.2 V N/A Flat Water Clear N/A Yellow 592nm/Green 575nm N/A SMD 0605 N/A 20 mA N/A 120° N/A
CHECK STOCK
SM0605RGB
LEDs-SMD-0605
 		N/A CAD Icon (for items table) N/A 2.0 V/3.1 V/2.9 V N/A Flat Water Clear N/A Red 630nm/Green 523nm/Blue 468nm N/A SMD 0605 N/A 20 mA N/A 120° N/A
CHECK STOCK
