• SM0805

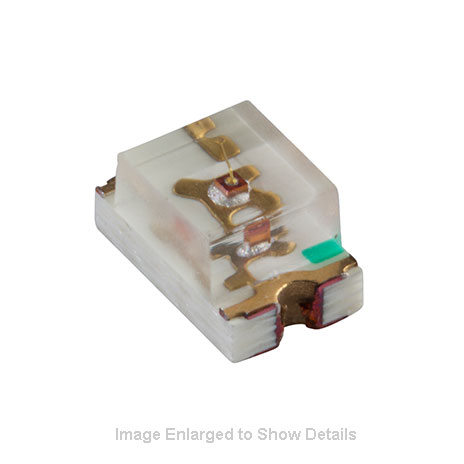

Miniature 0805 industry standard SMD LED package
  • Ideal for general indication, display backlighting.
  • Use with Bivar Rigid Light Pipes.
  • Available in a wide variety of color and luminous intensities.
  • Low power, long life reliability.
  • AvailableWide viewing angle 120°.
  • Supplied in tape and reel.
1 - 16 of 16 | Results Per Page | View | Unit of Measure
1
Request Information Compare Items
Clear Filter

Voltage Rating

  • 1.85 V
  • 1.9 V
  • 2.0 V
  • 2.1 V
  • 3.3 V
  • 3.9 V

Color/Wavelength

  • Amber 610nm
  • Blue 428nm
  • Blue 468nm
  • Green 555nm
  • Green 563nm
  • Green 568nm
  • Green 575nm
  • Orange 630nm
  • Red 645nm
  • Red 655nm
  • Red 660nm
  • Red 700nm
  • White 6500K
  • Yellow 583nm
  • Yellow 593nm

Current

  • 2 mA
  • 20 mA

Item #


3D Model

Voltage Rating

Lens Profile

Color/Wavelength

Package/Case Size

Current

Viewing Angle

Stock

SM0805AC
LEDs-SMD-0805
 		N/A CAD Icon (for items table) N/A 2.0 V N/A Flat Water Clear N/A Amber 610nm N/A SMD 0805 N/A 20 mA N/A 130° N/A
CHECK STOCK
SM0805BWC
LEDs-SMD-0805
 		N/A CAD Icon (for items table) N/A 3.9 V N/A Flat Water Clear N/A Blue 428nm N/A SMD 0805 N/A 20 mA N/A 130° N/A
CHECK STOCK
SM0805GC
LEDs-SMD-0805
 		N/A CAD Icon (for items table) N/A 2.1 V N/A Flat Water Clear N/A Green 568nm N/A SMD 0805 N/A 20 mA N/A 130° N/A
CHECK STOCK
SM0805GCL
LEDs-SMD-0805
 		N/A CAD Icon (for items table) N/A 1.9 V N/A Flat Water Clear N/A Green 575nm N/A SMD 0805 N/A 2 mA N/A 130° N/A
CHECK STOCK
SM0805HC
LEDs-SMD-0805
 		N/A CAD Icon (for items table) N/A 1.85 V N/A Flat Water Clear N/A Red 660nm N/A SMD 0805 N/A 20 mA N/A 130° N/A
CHECK STOCK
SM0805HCL
LEDs-SMD-0805
 		N/A CAD Icon (for items table) N/A 1.9 V N/A Flat Water Clear N/A Red 645nm N/A SMD 0805 N/A 2 mA N/A 130° N/A
CHECK STOCK
SM0805PGC
LEDs-SMD-0805
 		N/A CAD Icon (for items table) N/A 2.0 V N/A Flat Water Clear N/A Green 555nm N/A SMD 0805 N/A 20 mA N/A 130° N/A
CHECK STOCK
SM0805RC
LEDs-SMD-0805
 		N/A CAD Icon (for items table) N/A 2.0 V N/A Flat Water Clear N/A Red 700nm N/A SMD 0805 N/A 20 mA N/A 130° N/A
CHECK STOCK
SM0805UBWC
LEDs-SMD-0805
 		N/A CAD Icon (for items table) N/A 3.3 V N/A Flat Water Clear N/A Blue 468nm N/A SMD 0805 N/A 20 mA N/A 130° N/A
CHECK STOCK
SM0805UGC
LEDs-SMD-0805
 		N/A CAD Icon (for items table) N/A 2.0 V N/A Flat Water Clear N/A Green 563nm N/A SMD 0805 N/A 20 mA N/A 130° N/A
CHECK STOCK
SM0805UOC
LEDs-SMD-0805
 		N/A CAD Icon (for items table) N/A 2.1 V N/A Flat Water Clear N/A Orange 630nm N/A SMD 0805 N/A 20 mA N/A 130° N/A
CHECK STOCK
SM0805URC
LEDs-SMD-0805
 		N/A CAD Icon (for items table) N/A 2.1 V N/A Flat Water Clear N/A Red 655nm N/A SMD 0805 N/A 20 mA N/A 130° N/A
CHECK STOCK
SM0805UWC
LEDs-SMD-0805
 		N/A CAD Icon (for items table) N/A 3.3 V N/A Flat Water Clear N/A White 6500K N/A SMD 0805 N/A 20 mA N/A 130° N/A
CHECK STOCK
SM0805UYC
LEDs-SMD-0805
 		N/A CAD Icon (for items table) N/A 3.3 V N/A Flat Water Clear N/A Yellow 593nm N/A SMD 0805 N/A 20 mA N/A 130° N/A
CHECK STOCK
SM0805YC
LEDs-SMD-0805
 		N/A CAD Icon (for items table) N/A 2.1 V N/A Flat Water Clear N/A Yellow 583nm N/A SMD 0805 N/A 20 mA N/A 130° N/A
CHECK STOCK
SM0805YCL
LEDs-SMD-0805
 		N/A CAD Icon (for items table) N/A 1.9 V N/A Flat Water Clear N/A Yellow 593nm N/A SMD 0805 N/A 2 mA N/A 130° N/A
CHECK STOCK
