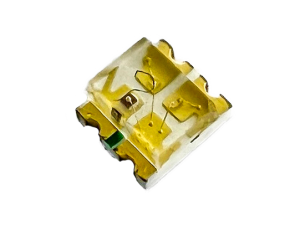

• SM0807
Miniature 0807 industry standard SMD LED package
  • Ideal for general indication, display backlighting.
  • Use with Bivar Rigid Light Pipes.
  • Available in a wide variety of color and luminous intensities.
  • Low power, long life reliability.
  • AvailableWide viewing angle 120°.
  • Supplied in tape and reel.
1 - 4 of 4 | Results Per Page | View | Unit of Measure
1
Request Information Compare Items

Item #


3D Model

Voltage Rating

Lens Profile

Color/Wavelength

Package/Case Size

Current

Viewing Angle

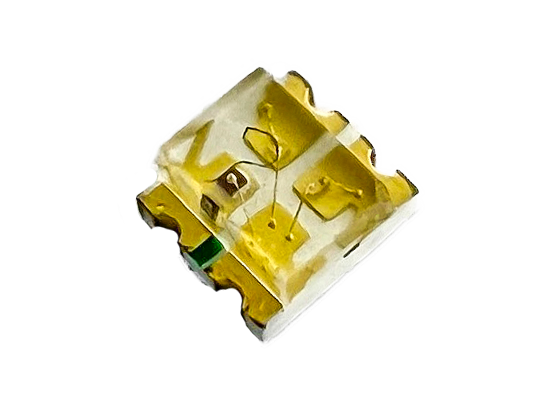

SM0807RGB
 		N/A CAD Icon (for items table) N/A 1.8/2.3 V N/A White Diffused N/A Red 650nm/Green 565nm N/A SMD 0807 N/A 20/20 mA N/A 120°

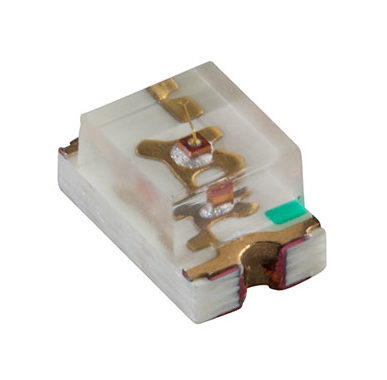

LEDs-SMD-0805-e1632416761881
 		N/A CAD Icon (for items table) N/A 1.8V/2.1V N/A White Diffused N/A Red 660nm/Green 565nm N/A N/A 20 mA N/A 120°

SM0807RGB
 		N/A CAD Icon (for items table) N/A 2/3.2/3.3 V N/A Flat Water Clear N/A Ultra High Red 639nm/Blue 458nm/Green 518nm N/A SMD 0807 N/A 30 mA N/A 120°

SM0807RGB
 		N/A CAD Icon (for items table) N/A 1.9/2.0 V N/A White Diffused N/A Super Red 639nm/Green 572nm N/A SMD 0807 N/A 20/20 mA N/A 120°
