• SM1204

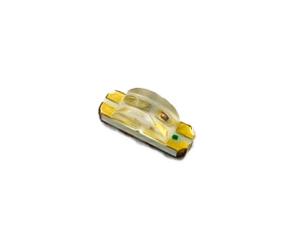

Miniature 1204 industry standard right angle mounting SMD LED package.
  • Ideal for general indication, display backlighting.
  • Use with Bivar Rigid Light Pipes.
  • Available in a wide variety of color and luminous intensities.
  • Low power, long life reliability.
  • AvailableWide viewing angle 120°.
  • Supplied in tape and reel.
1 - 16 of 16 | Results Per Page | View | Unit of Measure
1
Request Information Compare Items
Clear Filter

Voltage Rating

  • 2.0 V/2.0 V
  • 2.1 V
  • 2.1 V/2.1 V
  • 2.1 V/2.9 V
  • 2.1/3.1/2.9 V
  • 3.3 V

Color/Wavelength

  • Amber 593nm/Green 575nm
  • Amber 610nm
  • Blue 468nm
  • Green 500nm
  • Green 510nm
  • Green 568nm
  • Green 575nm
  • Orange 630nm
  • Red 628nm/Green 572nm
  • Red 631nm/Green 574nm
  • Red 645nm
  • Red 645nm/Blue 468nm
  • Red 655nm
  • Ultra High Red 645nm/Green 523nm/Blue 468nm
  • White 6000K
  • Yellow 593nm

Current

  • 20 mA
  • 30/20/20 mA

Viewing Angle

  • 110°
  • 130°

Item #


3D Model

Voltage Rating

Lens Profile

Color/Wavelength

Package/Case Size

Current

Viewing Angle

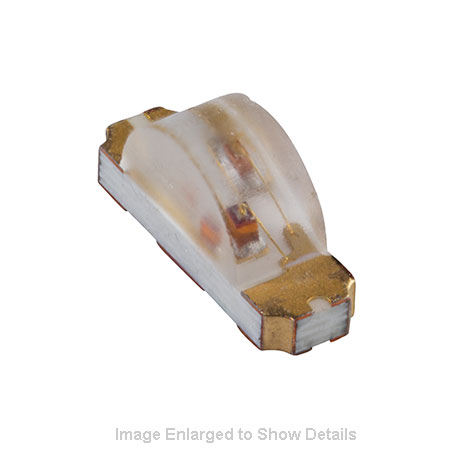

LEDs-SMD-1204
 		N/A CAD Icon (for items table) N/A 2.0 V/2.0 V N/A Flat Water Clear N/A Red 628nm/Green 572nm N/A SMD 1204 N/A 20 mA N/A 110°

LEDs-SMD-1204
 		N/A CAD Icon (for items table) N/A 2.1 V/2.1 V N/A Flat Water Clear N/A Amber 593nm/Green 575nm N/A SMD 1204 N/A 20 mA N/A 130°

LEDs-SMD-1204
 		N/A CAD Icon (for items table) N/A 2.1 V/2.9 V N/A Flat Water Clear N/A Red 645nm/Blue 468nm N/A SMD 1204 N/A 20 mA N/A 130°

LEDs-SMD-1204
 		N/A CAD Icon (for items table) N/A 2.1 V/2.1 V N/A Flat Water Clear N/A Red 631nm/Green 574nm N/A SMD 1204 N/A 20 mA N/A 130°

LEDs-SMD-1204
 		N/A CAD Icon (for items table) N/A 3.3 V N/A Flat Water Clear N/A Green 500nm N/A SMD 1204 N/A 20 mA N/A 110°

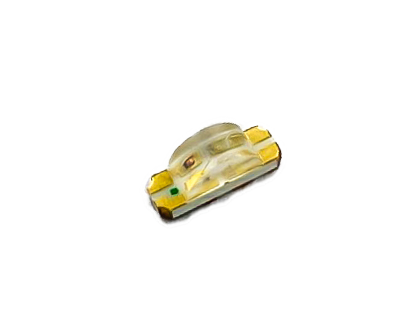

SM1204RGB
 		N/A CAD Icon (for items table) N/A 2.1/3.1/2.9 V N/A Flat Water Clear N/A Ultra High Red 645nm/Green 523nm/Blue 468nm N/A SMD 1204 N/A 30/20/20 mA N/A 110°

LEDs-SMD-1204
 		N/A CAD Icon (for items table) N/A 3.3 V N/A Flat Water Clear N/A Blue 468nm N/A SMD 1204 N/A 20 mA N/A 110°

LEDs-SMD-1204
 		N/A CAD Icon (for items table) N/A 2.1 V N/A Flat Water Clear N/A Green 575nm N/A SMD 1204 N/A 20 mA N/A 110°

LEDs-SMD-1204
 		N/A CAD Icon (for items table) N/A 2.1 V N/A Flat Water Clear N/A Red 655nm N/A SMD 1204 N/A 20 mA N/A 110°

LEDs-SMD-1204
 		N/A CAD Icon (for items table) N/A 2.1 V N/A Flat Water Clear N/A Amber 610nm N/A SMD 1204 N/A 20 mA N/A 110°

LEDs-SMD-1204
 		N/A CAD Icon (for items table) N/A 2.1 V N/A Flat Water Clear N/A Green 568nm N/A SMD 1204 N/A 20 mA N/A 110°

LEDs-SMD-1204
 		N/A CAD Icon (for items table) N/A 2.1 V N/A Flat Water Clear N/A Orange 630nm N/A SMD 1204 N/A 20 mA N/A 110°

LEDs-SMD-1204
 		N/A CAD Icon (for items table) N/A 3.3 V N/A Flat Water Clear N/A Green 510nm N/A SMD 1204 N/A 20 mA N/A 110°

LEDs-SMD-1204
 		N/A CAD Icon (for items table) N/A 2.1 V N/A Flat Water Clear N/A Red 645nm N/A SMD 1204 N/A 20 mA N/A 110°

LEDs-SMD-1204
 		N/A CAD Icon (for items table) N/A 3.3 V N/A Flat Water Clear N/A White 6000K N/A SMD 1204 N/A 20 mA N/A 110°

LEDs-SMD-1204
 		N/A CAD Icon (for items table) N/A 2.1 V N/A Flat Water Clear N/A Yellow 593nm N/A SMD 1204 N/A 20 mA N/A 110°
