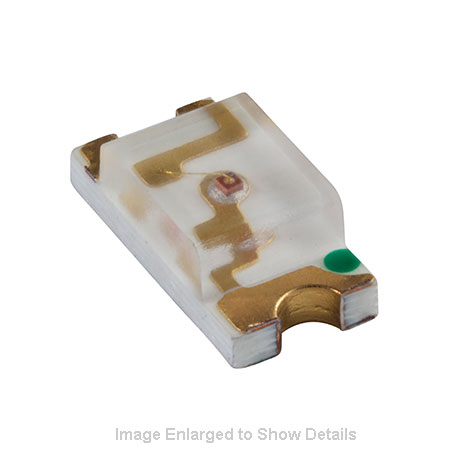

• SM1206
Miniature 1206 industry standard SMD LED package.
  • Narrow 30° inner lens viewing angle.
  • Ideal for general indication, display backlighting.
  • Use with Bivar Rigid Light Pipes.
  • Available in a wide variety of color and luminous intensities.
  • Low power, long life reliability.
  • Supplied in tape and reel.
1 - 28 of 28 | Results Per Page | View | Unit of Measure
1
Request Information Compare Items
Clear Filter

Voltage Rating

  • 1.85 V
  • 2.0 V
  • 2.1 V
  • 3.0 V
  • 3.1 V
  • 3.3 V
  • 3.9 V

Lens Profile

  • Flat Water Clear
  • Water Clear

Color/Wavelength

  • Amber 610nm
  • Blue 428nm
  • Blue 468nm
  • Green 523nm
  • Green 568nm
  • Green/130mcd
  • Orange 630nm
  • Red 630nm
  • Red 640nm
  • Red 655nm
  • Red 660nm
  • Red 700nm
  • White 5700K
  • White 6500K
  • Yellow 583nm
  • Yellow 590nm
  • Yellow 593nm

Viewing Angle

  • 140°
  • 30°

Item #


3D Model

Voltage Rating

Lens Profile

Color/Wavelength

Package/Case Size

Current

Viewing Angle

Stock

SM1206AC
LEDs-SMD-1206
 		N/A CAD Icon (for items table) N/A 2.0 V N/A Flat Water Clear N/A Amber 610nm N/A SMD 1206 N/A 20 mA N/A 140° N/A
CHECK STOCK
SM1206AC-IL
LEDs-SMD-1206
 		N/A CAD Icon (for items table) N/A 2.0 V N/A Flat Water Clear N/A Amber 610nm N/A SMD 1206 N/A 20 mA N/A 30° N/A
CHECK STOCK
SM1206BWC
LEDs-SMD-1206
 		N/A CAD Icon (for items table) N/A 3.9 V N/A Flat Water Clear N/A Blue 428nm N/A SMD 1206 N/A 20 mA N/A 140° N/A
CHECK STOCK
SM1206BWC-IL
LEDs-SMD-1206
 		N/A CAD Icon (for items table) N/A 3.3 V N/A Flat Water Clear N/A Blue 468nm N/A SMD 1206 N/A 20 mA N/A 30° N/A
CHECK STOCK
SM1206GC
LEDs-SMD-1206
 		N/A CAD Icon (for items table) N/A 2.1 V N/A Flat Water Clear N/A Green 568nm N/A SMD 1206 N/A 20 mA N/A 140° N/A
CHECK STOCK
SM1206GC-IL
LEDs-SMD-1206
 		N/A CAD Icon (for items table) N/A 2.0 V N/A Flat Water Clear N/A Green 568nm N/A SMD 1206 N/A 20 mA N/A 30° N/A
CHECK STOCK
SM1206HC
LEDs-SMD-1206
 		N/A CAD Icon (for items table) N/A 2.0 V N/A Flat Water Clear N/A Red 640nm N/A SMD 1206 N/A 20 mA N/A 140° N/A
CHECK STOCK
SM1206HC-IL
LEDs-SMD-1206
 		N/A CAD Icon (for items table) N/A 2.0 V N/A Flat Water Clear N/A Red 640nm N/A SMD 1206 N/A 20 mA N/A 30° N/A
CHECK STOCK
SM1206NAC-IL
LEDs-SMD-1206
 		N/A CAD Icon (for items table) N/A 2.1 V N/A Flat Water Clear N/A Amber 610nm N/A SMD 1206 N/A 20 mA N/A 30° N/A
CHECK STOCK
SM1206NBWC-IL
LEDs-SMD-1206
 		N/A CAD Icon (for items table) N/A 3.1 V N/A Flat Water Clear N/A Blue 468nm N/A SMD 1206 N/A 20 mA N/A 30° N/A
CHECK STOCK
SM1206NHC-IL
LEDs-SMD-1206
 		N/A CAD Icon (for items table) N/A 2.1 V N/A Flat Water Clear N/A Red 630nm N/A SMD 1206 N/A 20 mA N/A 30° N/A
CHECK STOCK
SM1206NPGC-IL
LEDs-SMD-1206
 		N/A CAD Icon (for items table) N/A 3.0 V N/A Flat Water Clear N/A Green 523nm N/A SMD 1206 N/A 20 mA N/A 30° N/A
CHECK STOCK
SM1206NUWC-IL
SM1206NUWC-IL
 		N/A CAD Icon (for items table) N/A 3.1 V N/A Flat Water Clear N/A White 6500K N/A SMD 1206 N/A 20 mA N/A 30° N/A
CHECK STOCK
SM1206NYC-IL
LEDs-SMD-1206
 		N/A CAD Icon (for items table) N/A 2.0 V N/A Flat Water Clear N/A Yellow 590nm N/A SMD 1206 N/A 20 mA N/A 30° N/A
CHECK STOCK
SM1206RC
LEDs-SMD-1206
 		N/A CAD Icon (for items table) N/A 2.0 V N/A Flat Water Clear N/A Red 700nm N/A SMD 1206 N/A 20 mA N/A 140° N/A
CHECK STOCK
SM1206RC-IL
LEDs-SMD-1206
 		N/A CAD Icon (for items table) N/A 2.0 V N/A Flat Water Clear N/A Red 700nm N/A SMD 1206 N/A 20 mA N/A 30° N/A
CHECK STOCK
SM1206SRC
LEDs-SMD-1206
 		N/A CAD Icon (for items table) N/A 1.85 V N/A Flat Water Clear N/A Red 660nm N/A SMD 1206 N/A 20 mA N/A 140° N/A
CHECK STOCK
SM1206UBWC
LEDs-SMD-1206
 		N/A CAD Icon (for items table) N/A 3.3 V N/A Flat Water Clear N/A Blue 468nm N/A SMD 1206 N/A 20 mA N/A 140° N/A
CHECK STOCK

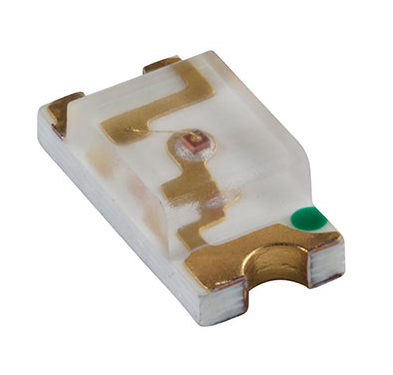

SM1206UGC-IL
LEDs-SMD-1206-e1632416721453
 		N/A CAD Icon (for items table) N/A 2.1 V N/A Water Clear N/A Green/130mcd N/A N/A 20 mA N/A 30° N/A
CHECK STOCK
SM1206UOC
LEDs-SMD-1206
 		N/A CAD Icon (for items table) N/A 2.1 V N/A Flat Water Clear N/A Orange 630nm N/A SMD 1206 N/A 20 mA N/A 140° N/A
CHECK STOCK
SM1206URC
LEDs-SMD-1206
 		N/A CAD Icon (for items table) N/A 2.1 V N/A Flat Water Clear N/A Red 655nm N/A SMD 1206 N/A 20 mA N/A 140° N/A
CHECK STOCK
SM1206URC-IL
LEDs-SMD-1206
 		N/A CAD Icon (for items table) N/A 2.0 V N/A Flat Water Clear N/A Red 655nm N/A SMD 1206 N/A 20 mA N/A 30° N/A
CHECK STOCK
SM1206UWC
LEDs-SMD-1206
 		N/A CAD Icon (for items table) N/A 3.3 V N/A Flat Water Clear N/A White 5700K N/A SMD 1206 N/A 20 mA N/A 140° N/A
CHECK STOCK
SM1206UWC-IL
LEDs-SMD-1206
 		N/A CAD Icon (for items table) N/A 3.3 V N/A Flat Water Clear N/A White 5700K N/A SMD 1206 N/A 20 mA N/A 30° N/A
CHECK STOCK
SM1206UYC
LEDs-SMD-1206
 		N/A CAD Icon (for items table) N/A 2.1 V N/A Flat Water Clear N/A Yellow 593nm N/A SMD 1206 N/A 20 mA N/A 140° N/A
CHECK STOCK
SM1206UYC-IL
LEDs-SMD-1206
 		N/A CAD Icon (for items table) N/A 2.1 V N/A Flat Water Clear N/A Yellow 593nm N/A SMD 1206 N/A 20 mA N/A 30° N/A
CHECK STOCK
SM1206YC
LEDs-SMD-1206
 		N/A CAD Icon (for items table) N/A 2.0 V N/A Flat Water Clear N/A Yellow 583nm N/A SMD 1206 N/A 20 mA N/A 140° N/A
CHECK STOCK
SM1206YC-IL
LEDs-SMD-1206
 		N/A CAD Icon (for items table) N/A 2.0 V N/A Flat Water Clear N/A Yellow 583nm N/A SMD 1206 N/A 20 mA N/A 30° N/A
CHECK STOCK
