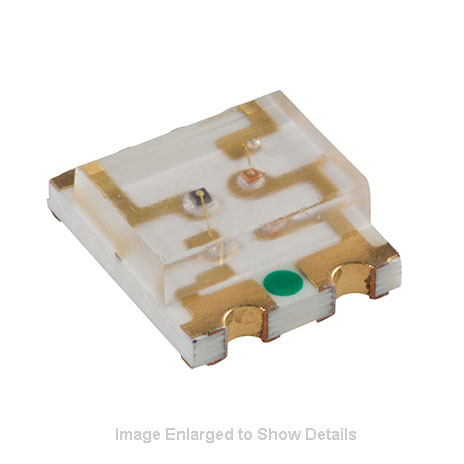

• SM1210
Miniature 1210 industry standard SMD LED package.
  • Two chips in one package for multiple color outputs.
  • Ideal for general indication, display backlighting.
  • Use with Bivar Rigid Light Pipes.
  • Low power, long life reliability.
  • AvailableWide viewing angle 120°.
  • Supplied in tape and reel.
1 - 6 of 6 | Results Per Page | View | Unit of Measure
1
Request Information Compare Items

Item #


3D Model

Voltage Rating

Lens Profile

Color/Wavelength

Package/Case Size

Viewing Angle


LEDs-SMD-1210
 		N/A CAD Icon (for items table) N/A 2.0 V/2.1 V N/A Flat Water Clear N/A Red 640nm/Green 568nm N/A SMD 1210 N/A 130°

LEDs-SMD-1210
 		N/A CAD Icon (for items table) N/A 2.0 V/2.0 V N/A Flat Water Clear N/A Amber 610nm/Green 568nm N/A SMD 1210 N/A 130°

LEDs-SMD-1210
 		N/A CAD Icon (for items table) N/A 2.0 V/2.1 V N/A Flat Water Clear N/A Red 660nm/Green 570nm N/A SMD 1210 N/A 130°

LEDs-SMD-1210
 		N/A CAD Icon (for items table) N/A 1.9 V/2.9 V N/A Flat Water Clear N/A Red 630nm/Blue 468nm N/A SMD 1210 N/A 130°

LEDs-SMD-1210
 		N/A CAD Icon (for items table) N/A 2.0 V/2.3 V N/A Flat Water Clear N/A Yellow 583nm/Green 568nm N/A SMD 1210 N/A 130°

LEDs-SMD-1210
 		N/A CAD Icon (for items table) N/A 2.1 V/2.9 V/3.1 V N/A Flat Water Clear N/A Red 645nm/Green 523nm/Blue 468nm N/A SMD 1210 N/A 130°
